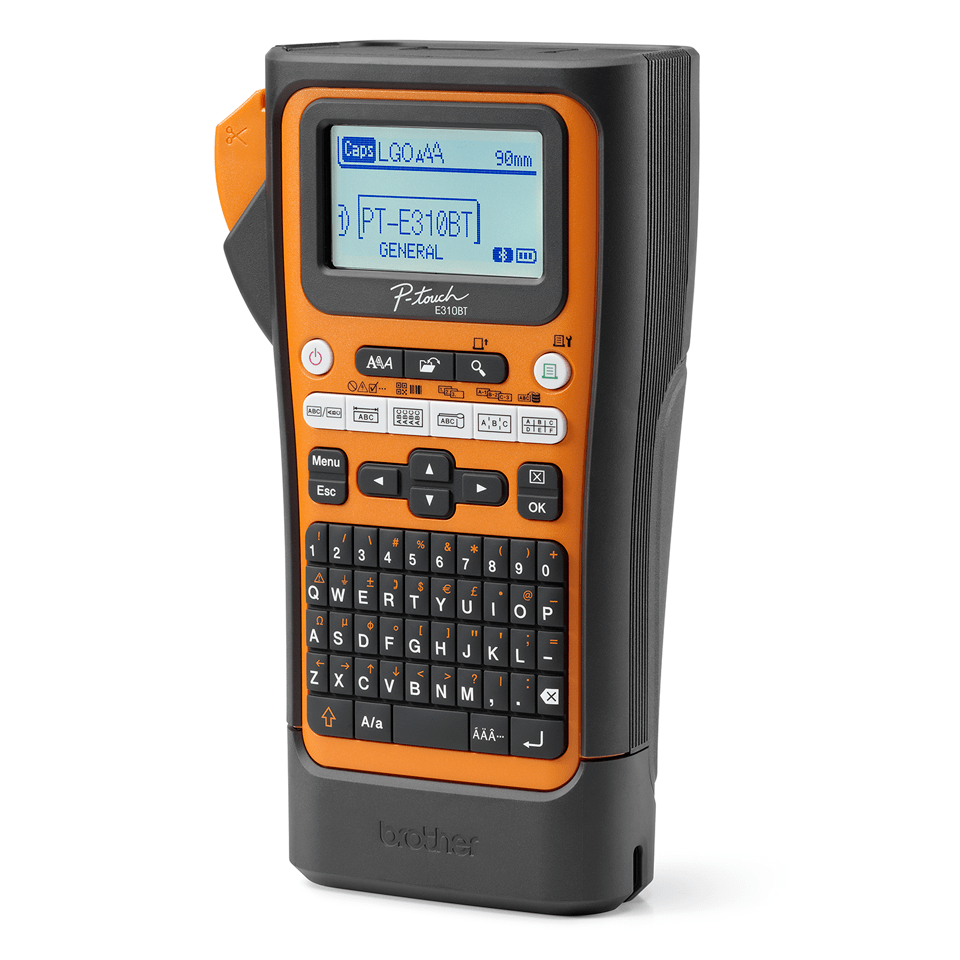

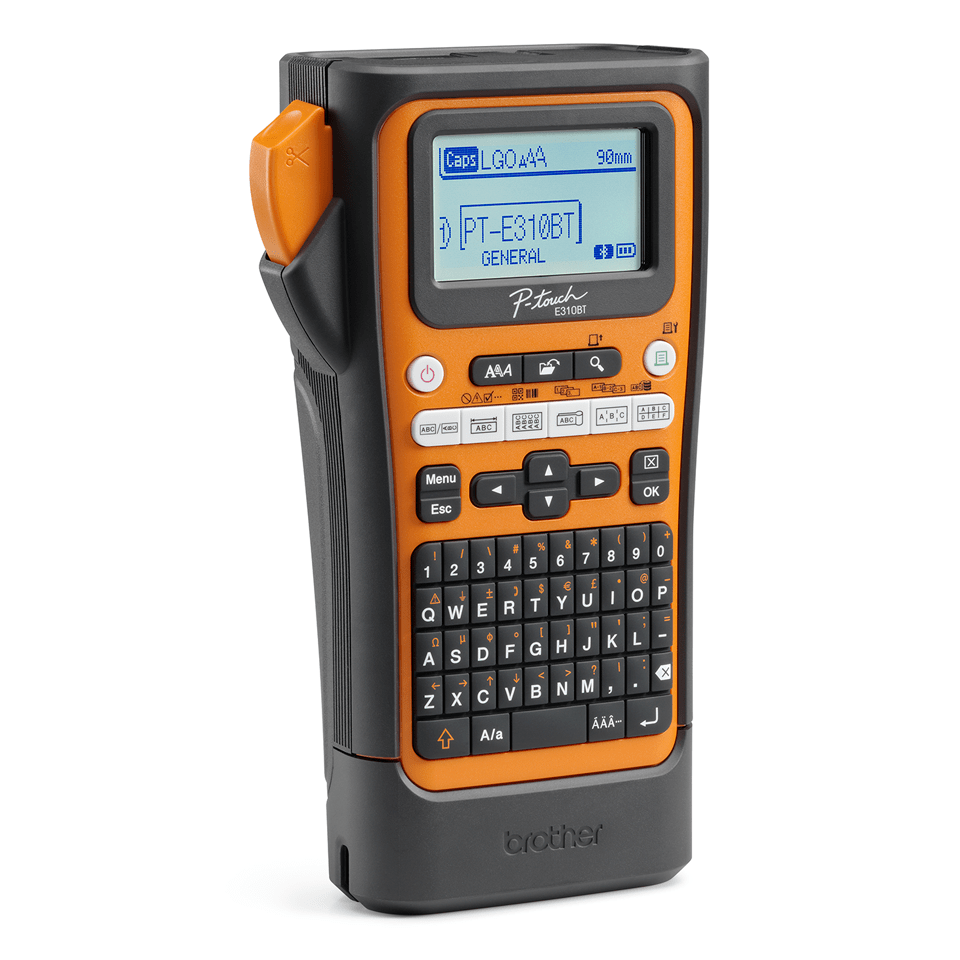

Handheld Pro Labelling Machine
- 6x one-touch industry application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification
- Fast print speeds of up to 20mm/sec and built-in industrial strength cutter with cut/pause to help reduce waste
- Specialist tapes available including strong adhesive, flexible ID, heat shrink tubing and self-laminating
- USB connectable for PC printing, Bluetooth connectivity for mobile devices
- Comes with Rechargeable Li-Ion Battery, USB Type-C cable, 1x 18mm TZe flexible ID tape, and hard carrying case
- Prints durable labels up to 18mm wide
Information
Overview

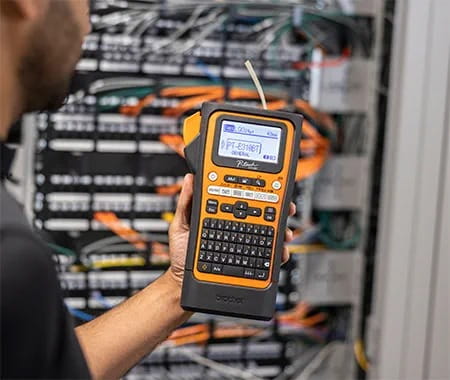

Efficient and reliable labelling tool
Designed for everyday electrical and network labeling, the PT-E310BTVP delivers reliable performance without the fuss. With all the essential features and the trusted durability Brother is known for, it’s the dependable tool that gets the job done—every time.

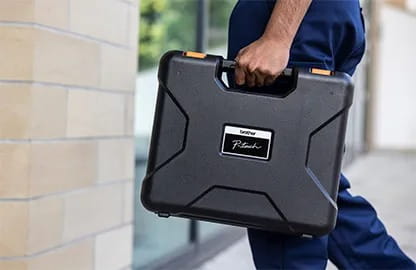

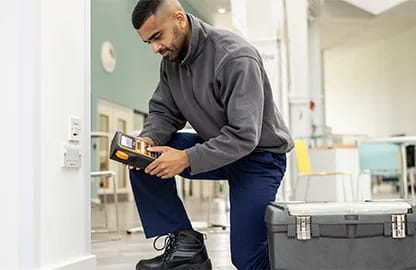

Easy to carry, easy to use
Built for professionals on the move, the PT-E310BTVP is compact, lightweight, and easy to carry—ideal for on-site labeling wherever the job takes you. Just grab and go, confident you’ve got a dependable labeling solution in your toolkit.
Built-in industrial strength cutter
Built tough for the worksite, the PT-E310BTVP features a rugged manual cutter designed for industrial environments. The cut/pause function delivers clean, precise cuts while helping reduce waste—maximizing the efficiency of your label tape.

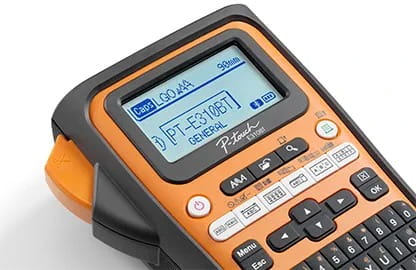

Intuitive and easy to use
Labelling at your fingertips. The Brother PT-E310BTVP is designed to be easy to use, right out of the box. With built-in features and dedicated one-touch functions, spend less time fiddling with settings and more time getting the job done - you’ll be labelling like a pro in minutes.
Versatile TZe laminated tapes
From blazing heat to heavy rain, your labels need to withstand the harshest conditions. Brother’s TZe laminated tapes are waterproof, abrasion-resistant, and chemical-resistant—engineered and tested for durability in any environment. The PT-E310BTVP is also compatible with our HSe heat shrink tubes, making cable labeling fast and reliable.

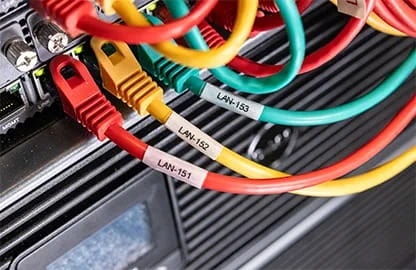

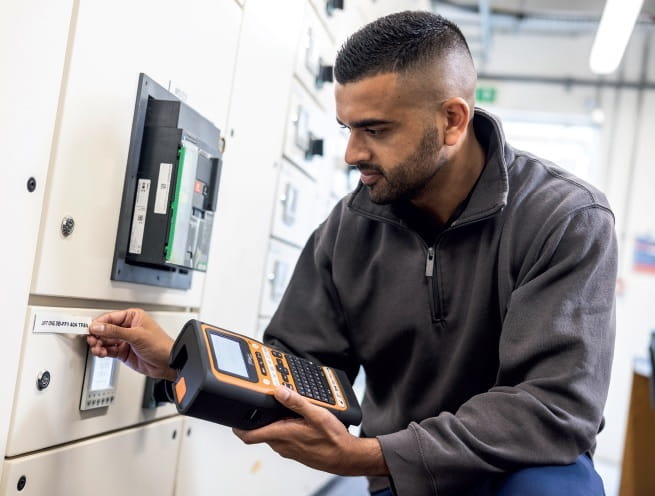

Industry-compliant labels

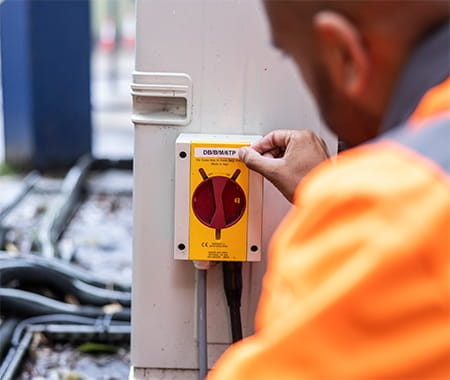

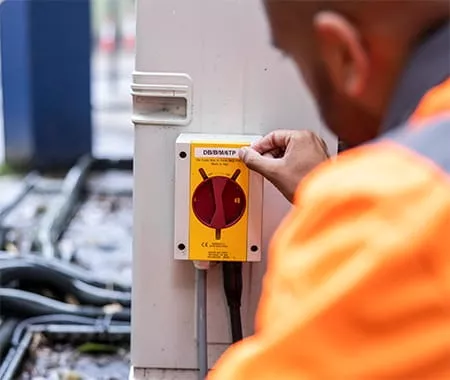

Safety and identification are critical for any electrical or datacom installation that want to stay compliant.

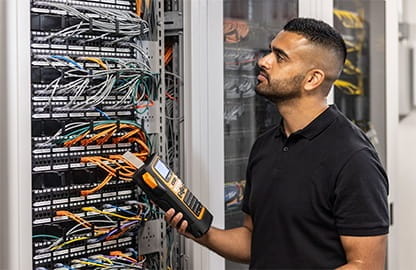

This includes danger & warning signs, switch gear, electrical wires, consumer units, patch panels, racks & cabinets, CAT5E / CAT6A network cabling and more.
Pro Label Tool app
Design and create labels made for industrial work, right from the palm of your hand using the conveniently built-in Bluetooth connectivity.
Easily access industry-standard templates or create, customise and serialise, all with one easy-to-use mobile app. In the field, on-the-go, and anywhere the job takes you.

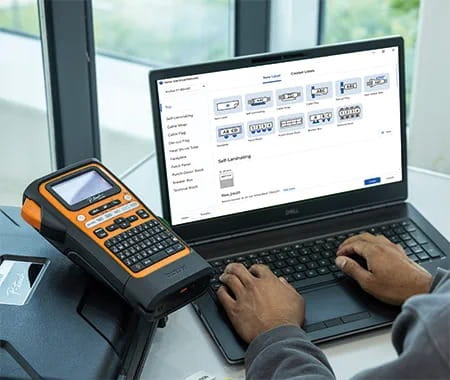

P-touch Editor 6.0
Supplied as standard, you can create your own custom labels with logos and barcodes using our powerful, easy-to-use label design software.
With newly upgraded features, increased functionality and an overall user interface refresh, P-touch Editor 6.0 provides a truly connected solution.
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 3 lines
Media Type
TZe, HGe, HSe (Heat-shrink Tube)
Available Tape Widths
TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm
HGe: 6mm, 9mm, 12mm, 18mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm
Product Dimensions (Width X Depth X Height)
135 mm × 235.5 mm × 70.3 mm
Weight
0.785 kg
Print Speed
Using AC Adapter: Up to 20 mm/sec, Using Battery: Up to 20 mm/sec
Resolution
180 dpi
No. Of Printable Lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line
Number of Characters
684
Number of Symbols
476
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Data Matrix
※GS1 QR codes will be transferred as micro QR codes.
1D barcodes only for transferred templates:
1. ISBN-2
2. ISBN-2
3. POSTNET
4. Laser Bar Code
5. GS1 DataBar (RSS)
6. Intelligent Mail Barcode
2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec Code
4. GS-1 Composite
Numbering
Yes (1 - 99)
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)
Media
Maximum Tape Width
Up to 18 mm
Printing Width
Up to 15.8 mm
Functions
Cutter
Manual
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Up to 99 files
Memory Buffer Size
Up to 1800 characters
Power
Power Source
Rechargeable Li-ion Battery (BA-E001)
Optional: AC Adapter for USB Type-C (PA-AD-004)
Auto Power-Off
Li-ion Battery (BA-E001): 20 minutes
AC Adapter for USB Type-C (PA-AD-004): 20 minutes
Supported Operating Systems
Supported OS
Windows 10, 11
