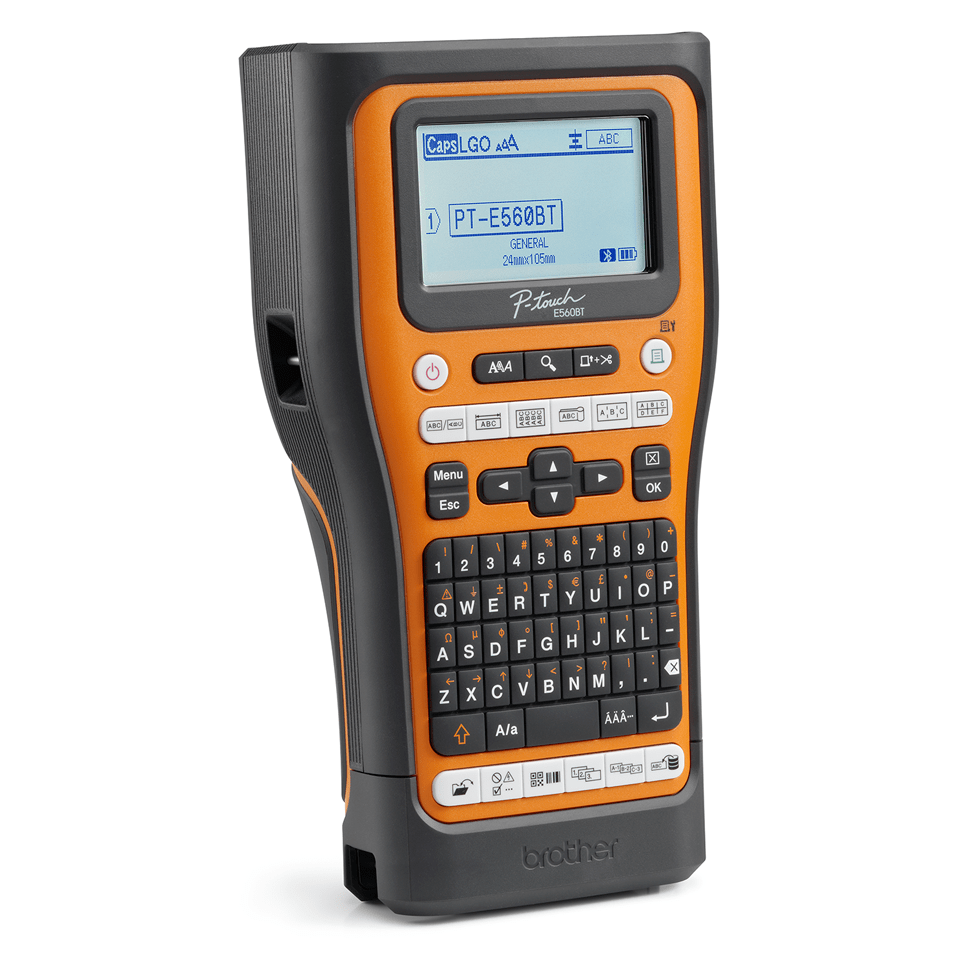

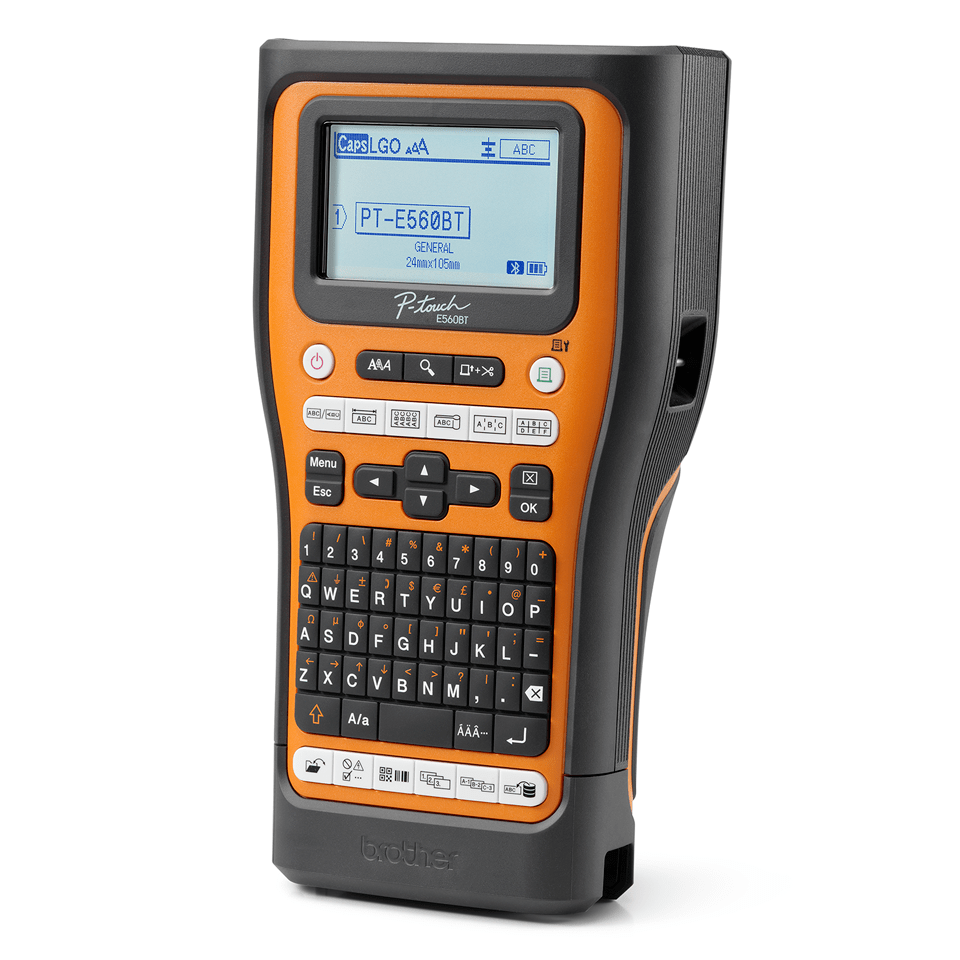

Handheld Pro Labelling Machine
- 6x one-touch industry application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification
- Fast print speeds of up to 30mm/sec and automatic (full & half) cutter with easy peel function to print multiple labels in one continuous strip
- Specialist tapes available including strong adhesive, flexible ID, heat shrink tubing and self-laminating
- USB connectable for PC printing, Bluetooth connectivity for mobile devices

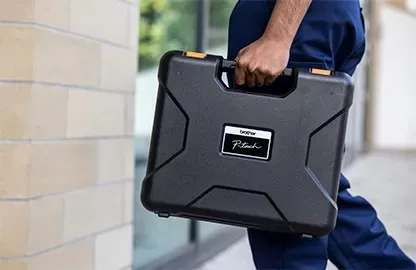

- Comes with Rechargeable Li-Ion Battery, USB Type-C cable, 1x 24mm TZe flexible ID tape, and hard carrying case
- Prints durable labels up to 24mm wide
Information
Overview
The ultimate labelling solution
For the dedicated professional who demands top performance on every job, the PT-E560BTVP is the ultimate labelling partner—combining speed, versatility, and durability to handle any task with confidence.

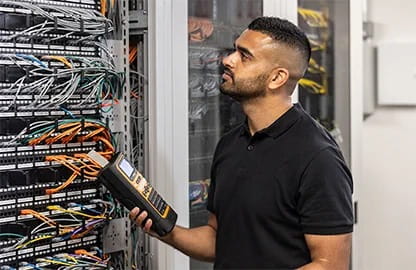

Wide 24mm labels & versatile applications
Move beyond simple labels. The PT-E560BTVP prints wide labels (up to 24mm) and offering dedicated keys for precise labelling of patch panels, faceplates, and more. Ensure clarity and professionalism in every complex job.
Faster print speeds & auto-cutter
Boost on-site productivity with fast print speeds of up to 30mm/sec and automatic (full and half) cutter, the PT-E560BTVP saves you valuable time, allowing you to focus on the job, not the labelling.

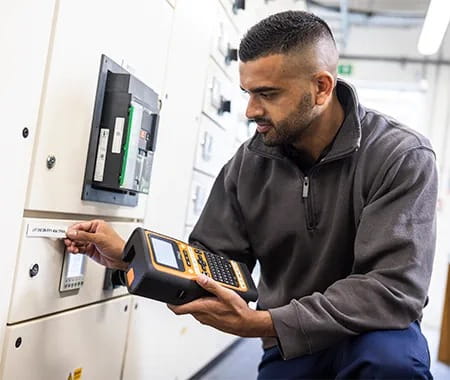

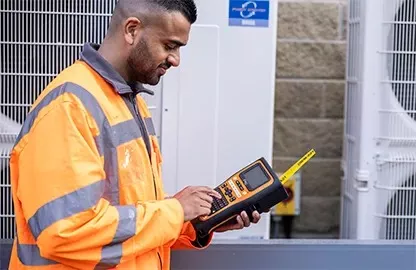

Intuitive and easy to use
Labelling at your fingertips. The Brother PT-E560BTVP is designed to be easy to use, right out of the box. With built-in features and dedicated one-touch functions, spend less time fiddling with settings and more time getting the job done - you’ll be labelling like a pro in minutes.

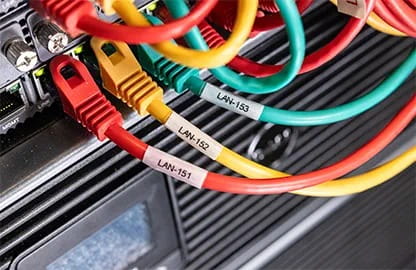

Versatile TZe laminated tapes
From blazing heat to heavy rain, your labels need to withstand the harshest conditions. Brother’s TZe laminated tapes are waterproof, abrasion-resistant, and chemical-resistant—engineered and tested for durability in any environment. The PT-E560BTVP is also compatible with our HSe heat shrink tubes, making cable labeling fast and reliable.

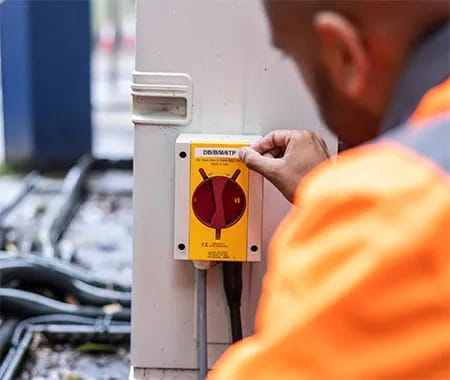

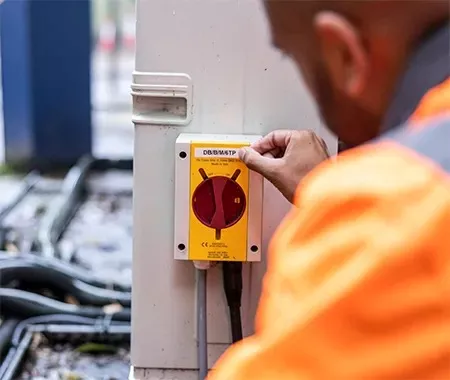

Industry-compliant labels

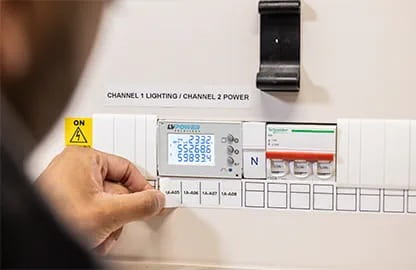

Safety and identification are critical for any electrical or datacom installation that want to stay compliant.
This includes danger & warning signs, switch gear, electrical wires, consumer units, patch panels, racks & cabinets, CAT5E / CAT6A network cabling and more.
Pro Label Tool app
Design and create labels made for industrial work, right from the palm of your hand using the conveniently built-in Bluetooth connectivity.
Easily access industry-standard templates or create, customise and serialise, all with one easy-to-use mobile app. In the field, on-the-go, and anywhere the job takes you.

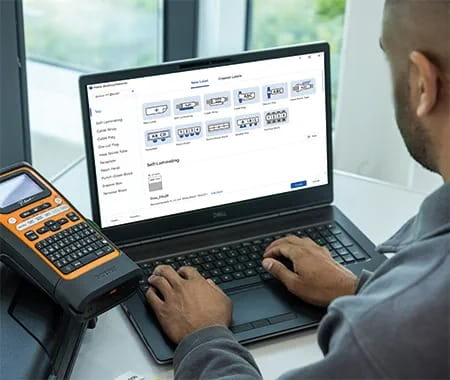

P-touch Editor 6.0
Supplied as standard, you can create your own custom labels with logos and barcodes using our powerful, easy-to-use label design software.
With newly upgraded features, increased functionality and an overall user interface refresh, P-touch Editor 6.0 provides a truly connected solution.
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
18 characters x 3 lines
Media Type
TZe, HGe, HSe (Heat-shrink Tube)
Available Tape Widths
TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
HGe: 6mm, 9mm, 12mm, 18mm, 24mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm
Product Dimensions (Width X Depth X Height)
132 mm × 244 mm × 80 mm
Weight
1.05 kg
Print Speed
Using AC Adapter: Up to 30 mm/sec, Using Battery: Up to 20 mm/sec
Resolution
180 dpi
No. Of Printable Lines
24 mm tape: 1 - 7 lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line
Number of Characters
684
Number of Symbols
476
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Data Matrix
※GS1 QR codes will be transferred as micro QR codes.
1D barcodes only for transferred templates:
1. ISBN-2
2. ISBN-2
3. POSTNET
4. Laser Bar Code
5. GS1 DataBar (RSS)
6. Intelligent Mail Barcode
2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec Code
4. GS-1 Composite
Numbering
Yes (1 - 99)
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)
Media
Maximum Tape Width
Up to 24 mm
Printing Width
Up to 18.0 mm
Functions
Cutter
Automatic (Full and Half)
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Up to 99 files
Memory Buffer Size
Up to 1800 characters
Power
Power Source
Rechargeable Li-ion Battery (BA-E001)
Optional: AC Adapter for USB Type-C (PA-AD-004)
Auto Power-Off
Li-ion Battery (BA-E001): 20 minutes
AC Adapter for USB Type-C (PA-AD-004): 20 minutes
Supported Operating Systems
Supported OS
Windows 10, 11
