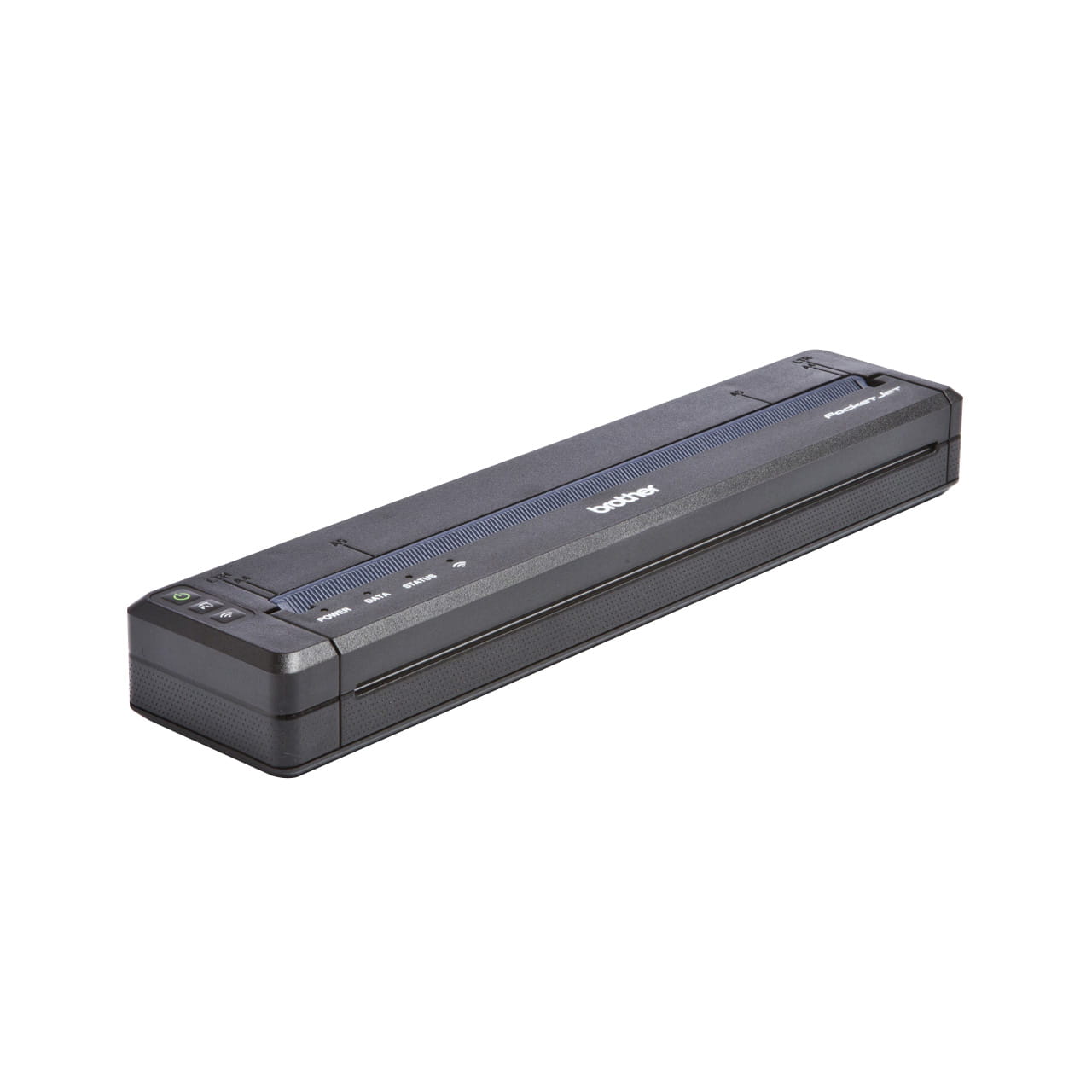

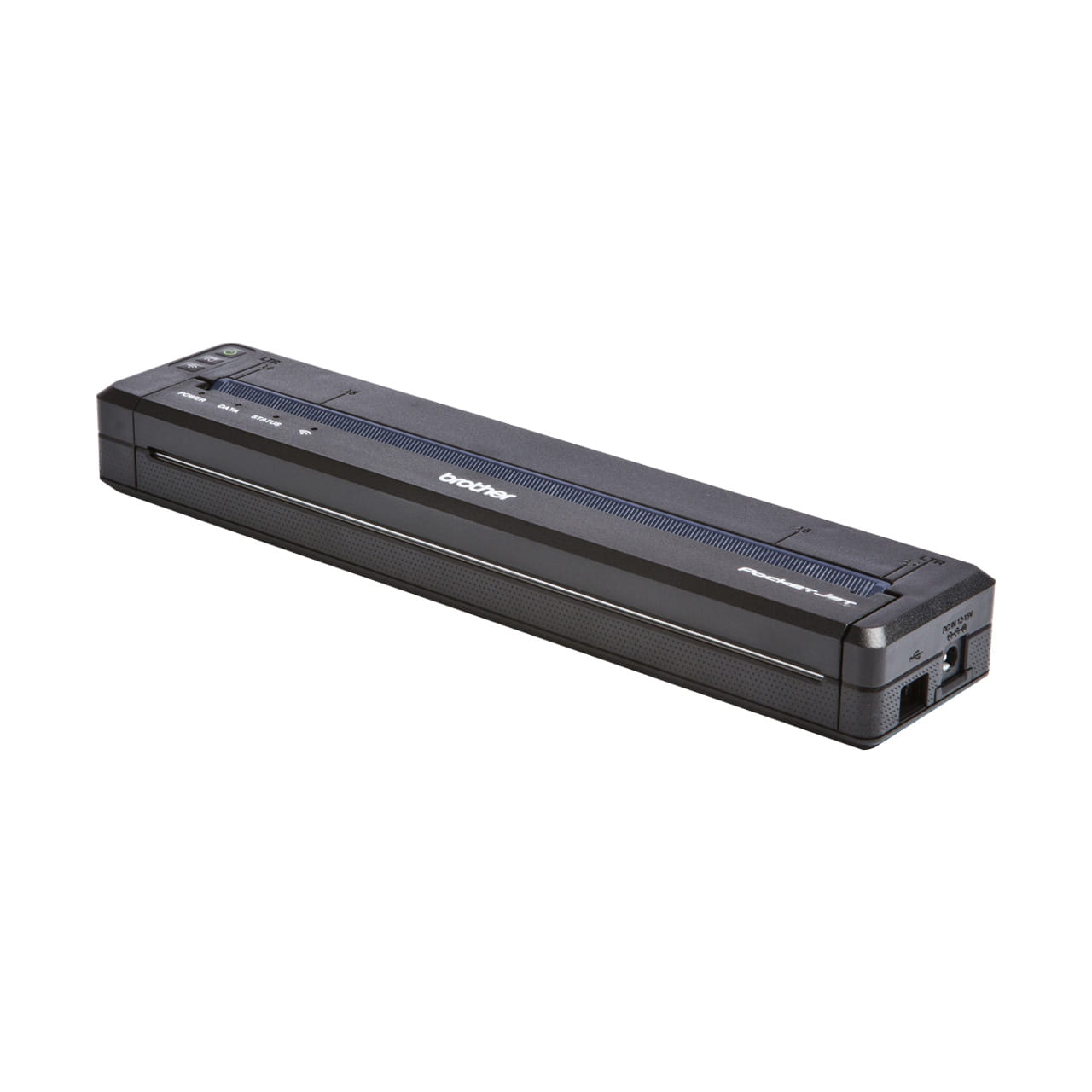

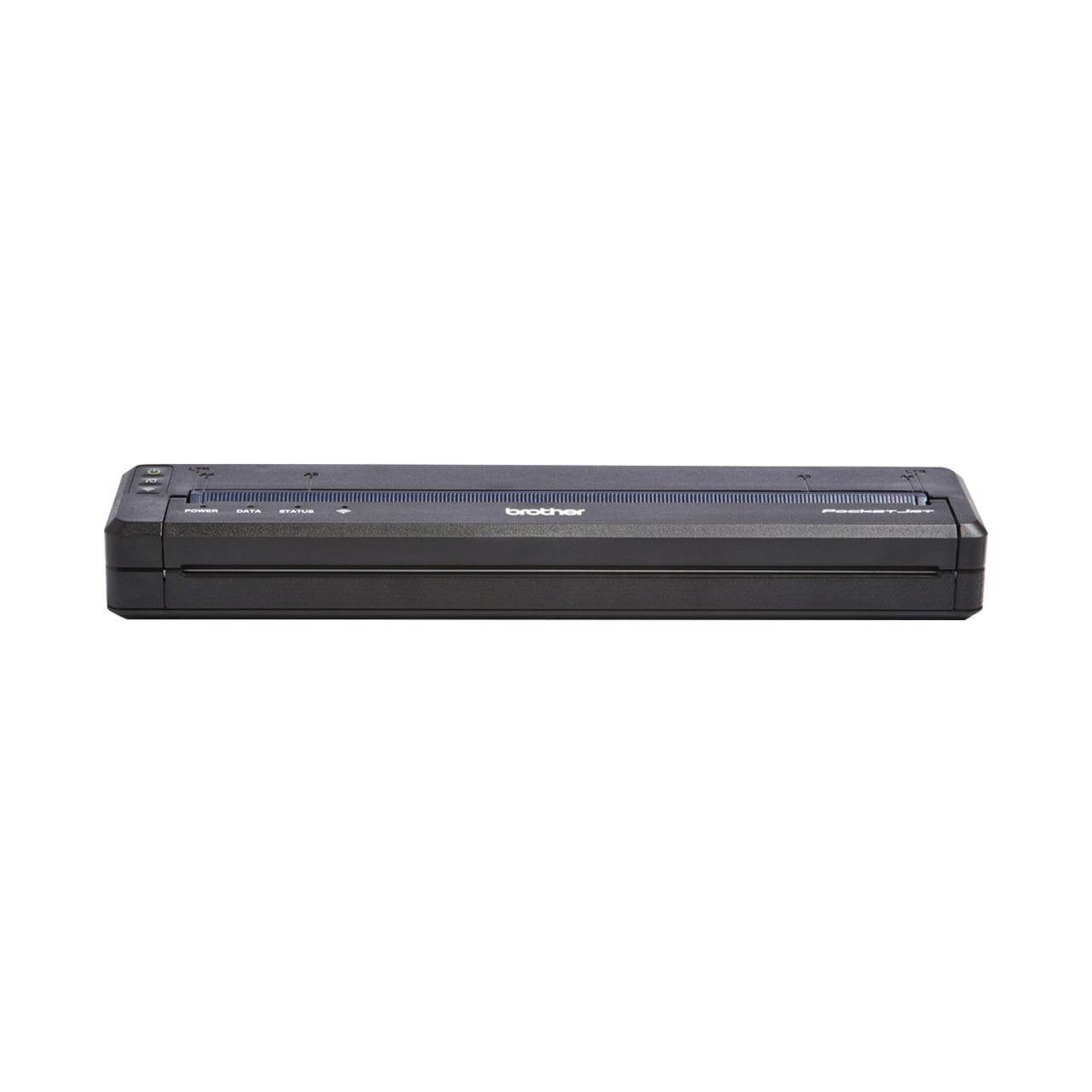

PJ-773 Portable Thermal Printer
Portble A4 Thermal Printer with Wi-Fi and AirPrint support
- Bluetooth and USB connectivity with AirPrint support
- Up to 8ppm print speed
- Print resolution: 300dpi
Discover Similar Products
Portable A4 Thermal Printer with MFi Bluetooth and Wi-Fi Connectivity
Information
Overview
Brother PocketJet – PJ-773 Mobile Printers
PocketJet 7 300dpi Full Page Thermal Printer with Wi-Fi® & USB (Only includes the printer. Requires power, USB cable, and printing supplies)
PocketJet Key Features
- A4 wide print head
- Up to 8ppm print speeds
- Replaceable rechargeable Li-ion battery (not included with the device)
- Thermal printing technology – no ribbons, inks or toners required
- Only one consumable – direct thermal media on cut sheets, continuous roll or perforated roll
- Simplified, space-saving in-vehicle mounting options
- Compatible with traditional PC and Mac drivers
Specifications
Basic Specs
Functions
Printer Type
Portable printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
Up to 8ppm
Paper Type
Thermal Paper
Paper Size
A5 (148 x 210 mm), A4 (210 x 297 mm), Letter (216 x 279mm), Legal (216 x 356 mm), Infinite
Warranty
1 Year Carry in Warranty swap product
Resolution
300 x 300 dpi
Barcode
Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet
2D: PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct), Wireless LAN IEEE 802.11b/g/n (Ad-hoc Mode)
Display & Memory
Memory Capacity
RAM: 32MB, Flash: 6MB
Operation
Power Source
PA-BT-002 Rechargeable Li-ion Battery, PA-AD-600 AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type) (Purchase separately).
Temperature Operating
-10℃ to 50℃
Supported Commands
Supported Commands
ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), Raster_P, P-touch Template
Supported Operating Systems
Supported OS
Windows Vista / 7 / 8 / 8.1 / 10, Windows Server 2008/2008 R2, Windows Server 2012/2012 R2
Mac OS X v10.8 / 10.9 / 10.10
Redhat, Debian
