Wireless, high printing speed and high printing volume monochrome laser printer
- Wireless Connectivity
- Fast print speed up to 48 ppm
- Automatic 2-sided (Duplex) Print
- 250 sheets paper tray input capacity expandable up to 1,290*
- Replaceable high-yield toner up to 18,000 pages
Information
Overview
SUPER-FAST PRINTING
Printing up to 48ppm (pages per minute) and a first print out time of less than 6.7 secs, you will never have a long wait for your documents to be printed.
MONEY-SAVING TONER
Helping to lower your operating costs, a 6,000-pages in-box toner cartridge is included and a high-yield 18,000-pages replacement toner cartridge is available.
WORKFLOW INTEGRATIONS
Utilize software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more.
RELIABILITY that maximises print performance
HIGH PRINT VOLUME

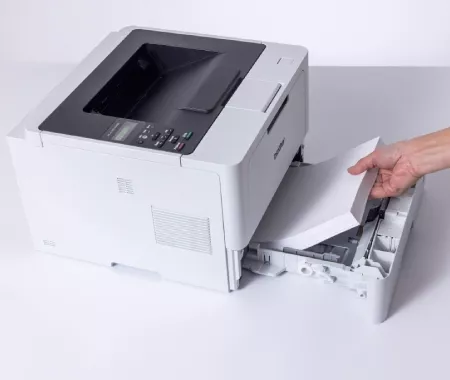

Maximise performance with high paper input capacities of up to 1,290 sheets and save time on reloading.
ROBUST SECURITY
Features such as Secure Function Lock and Secure Print+ safeguard print jobs and other functions against unauthorised user access.
COST-SAVING with high-yield printing
HIGH-YIELD TONER CARTRIDGES
Each toner cartridge supports more than 18,000 pages*1 worth of prints, reducing overall printing costs and maintenance downtime.
AUTO DUPLEX PRINT
Utilises double-sided printing, saving on total operating costs.
1TN3617, approx. declared yield value in accordance with ISO/IEC 19752

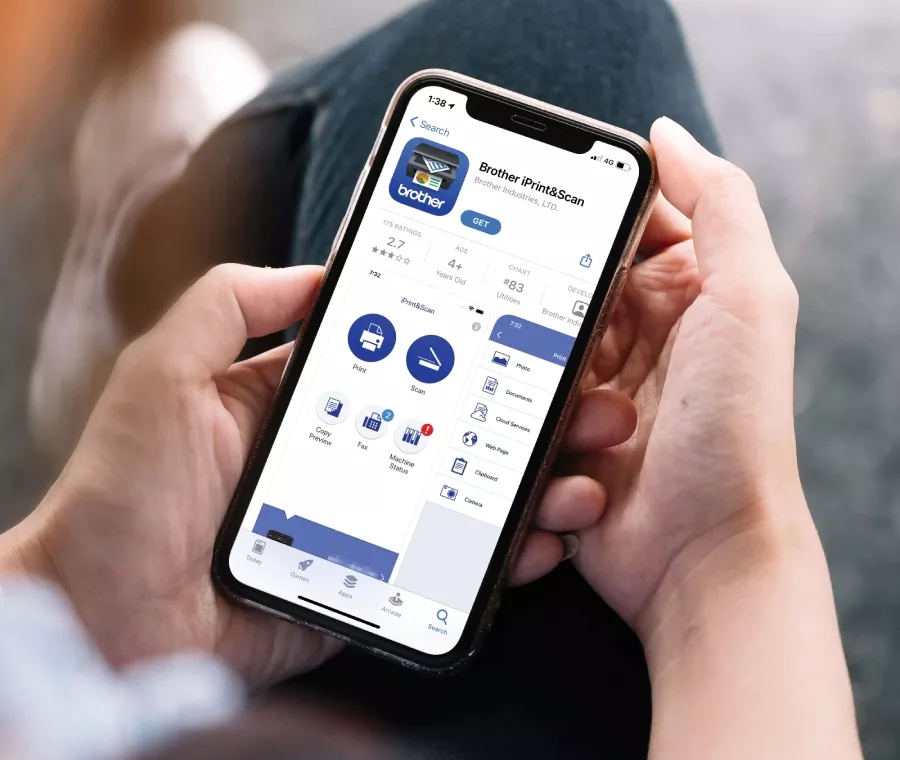

FREE mobile apps
Brother mobile apps for Android & iOS provide the flexibility of printing directly from your smartphone.
Includes Apple AirPrint support so you can simply connect and print without the hassle of installations.
Specifications
Basic Specs
Functions
Printer Type
Mono Laser Printer
Product Dimensions (Width X Depth X Height)
373 mm × 388 mm × 257 mm
Weight
9.5 kg
Print Speed
Up to 48 (A4) / Up to 50 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Thin Envelope, Thick Envelope
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,390 sheets of 80 gsm plain paper (with Added Optional Trays)
Warranty
1 Year on-site warranty
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio
(Paper sizes other than A4 are supported only in some countries.)
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct), 10Base-T/100Base-TX/1000Base-T
Display & Memory
Display Type
1 Line LCD (16 characters)
Memory Capacity
512 MB
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.5 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10
Server 2012 / 2012 R2 / 2016 / 2019
