The perfect blend of speed, high yield and dependable performance in a sleek, compact design
- Fast print speed up to 50 ppm
- Automatic 2-sided (Duplex) Print (Up to 24 sides per minute)
- User-friendly 8.9cm Color Touchscreen Panel
- NFC for secure authentication
- 520 sheets paper tray input capacity expandable up to 2,600* pages
- Replaceable high-yield toner up to 25,000 pages
Information
Overview
SUPER-FAST PRINTING
Printing up to 50ppm (pages per minute) and a first print out time of less than 6.7 secs, you will never have a long wait for your documents to be printed.
MONEY-SAVING TONER
Helping to lower your operating costs, a 25,000-pages in-box toner cartridge is included and a high-yield 25,000-pages replacement toner cartridge is available.
WORKFLOW INTEGRATIONS
Utilize software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more.
RELIABILITY that maximises print performance

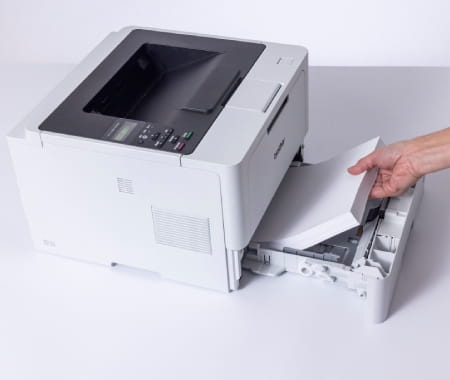

HIGH PRINT VOLUME
Maximise performance with high paper input capacities of up to 2,600 sheets and save time on reloading.
ROBUST SECURITY
Features such as Secure Function Lock and Secure Print+ safeguard print jobs and other functions against unauthorised user access.
COST-SAVING with high-yield printing

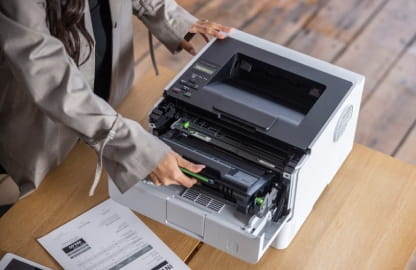

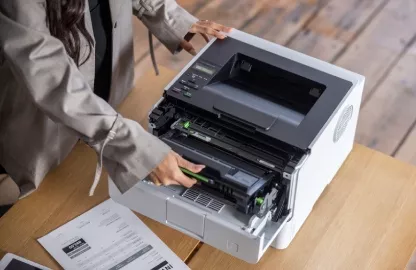

HIGH-YIELD TONER CARTRIDGES
Each toner cartridge supports more than 25,000 pages*1 worth of prints, reducing overall printing costs and maintenance downtime.
AUTO DUPLEX PRINT
Utilises double-sided printing, saving on total operating costs.
1TN3617XL, approx. declared yield value in accordance with ISO/IEC 19752
FREE mobile apps
Brother mobile apps for Android & iOS provide the flexibility of printing directly from your smartphone.
Includes Apple AirPrint support so you can simply connect and print without the hassle of installations.
*Optional NC-9110W Wi-Fi Adapter required for wireless connectivity
Specifications
Basic Specs
Functions
Printer Type
Mono Laser Printer
Product Dimensions (Width X Depth X Height)
402 mm × 396 mm × 319 mm
Weight
11.6 kg
Print Speed
Up to 50/52 ppm (ISO/IEC 11160-2:1996)
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Thin Envelope, Thick Envelope
Paper Size
A4, Letter, B5 (ISO/JIS), A5, A5(Long Edge), A6, Executive, Legal, Folio, Exe, LTR, LGL, C5 Envelope, Com-10, DL Envelope, Monarch
Maximum Paper Capacity
Up to 2,700 sheets of 80 gsm Plain Paper (with Added Optional Trays)
Warranty
3 Years on-site warranty (Terms & Conditions apply)
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Paper Output
Up to 250 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct), NFC
Display & Memory
Display Type
3.5" Colour Touchscreen LCD
Memory Capacity
1 GB
Operation
Power Source
220 V to 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 710 W
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.9 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10, Windows 11, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
macOS v11, macOS v12, macOS v13
