Reliable color laser printer designed and built for business
- Fast print speed up to 40/42 ppm (A4/LTR)
- Paper capacity of standard tray up to 520 sheets plus 100 sheets multi-purpose tray
- Automatic 2-sided (Duplex) Print
- Integrated NFC Reader
Information
Overview
FASTEST IN ITS CLASS*
The HL-L9430CDN helps you to stay productive with the fastest print speeds in its class with up to 40 pages per minute.
HIGH VOLUME PRINTING

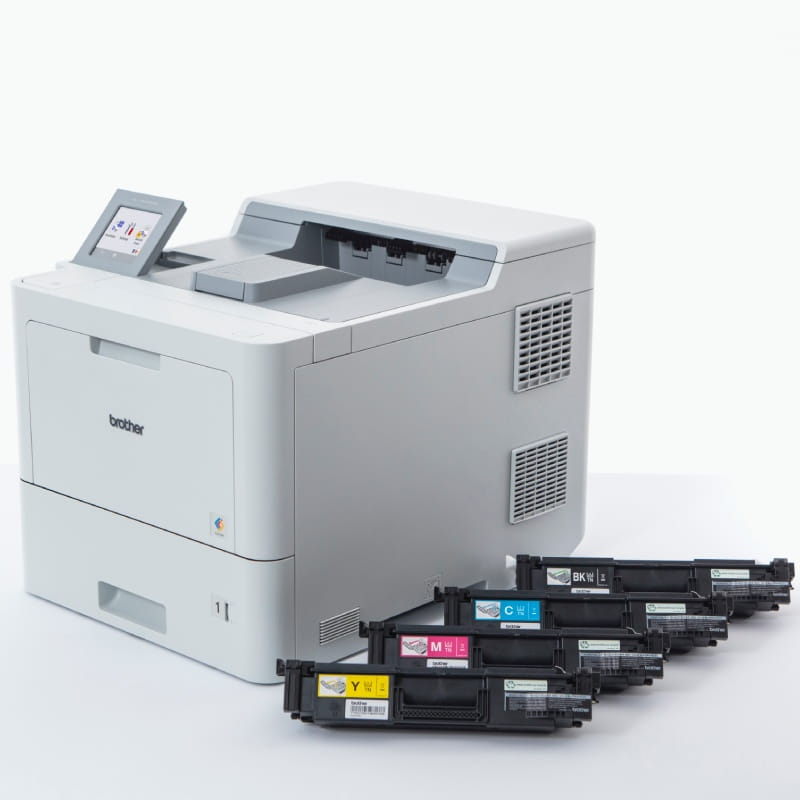

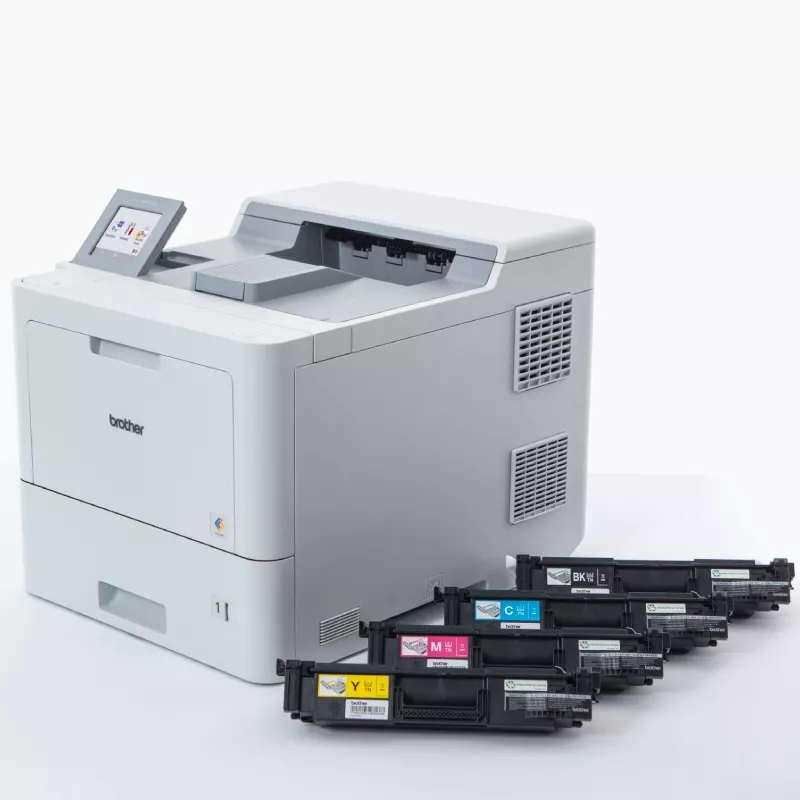

With the included Brother toner cartridges, get yields up to 9,000** pages for black and 6,500** pages for color. Cost has never been more efficient.
WORKFLOW INTEGRATIONS
Utilize software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more.
DESIGNED FOR WORKGROUPS
Built-in cloud apps help your team share documents by directly digitising to OneDrive, Google Drive or Dropbox.
Our user interface is designed for teams - users can personalize their own buttons for quick and easy access to frequently used features like emailing a document or scanning to cloud.
INTEGRATED SECURITY
Ready to integrate with your user groups with Active Directory and LDAP support, combined with NFC authentication to manage access within in your organisation.
IPSec support for data encryption and ensuring your organisation information remains confidential.
HIGH QUALITY PRINTS
This standalone color laser printer provides 2400dpi quality straight out of the box without the hassles of configuration.

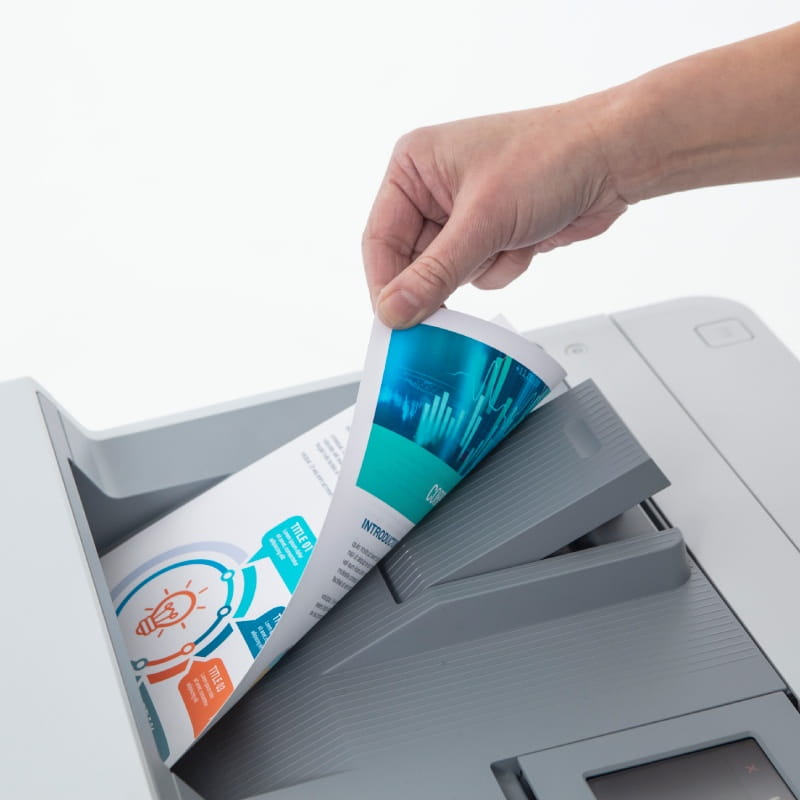

Accompanied by automatic 2-sided (duplex) A4 printing capabilities, you can print your documents quickly and to a professional standard.
Specifications
Basic Specs
Functions
Printer Type
Color Laser Printer
Product Dimensions (Width X Depth X Height)
442 mm × 541 mm × 403 mm
Weight
22.6 kg
Print Speed
A4: Up to 40 ppm
Letter: Up to 42 ppm
Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper
Paper Size
A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, Legal, Mexico Legal, India Legal, A4 Short (270mm Paper), Folio, 16K
Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Warranty
3 Years on-site warranty (Terms & Conditions apply)
Resolution
Up to 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper,Thick Paper, Thicker Paper, Recycled Paper, Glossy Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, A4 Short, Folio
Paper handling
Tray #1 - Paper Type
A4, Letter, B5(JIS), B5(ISO), A5, A5(Long Edge), B6(JIS), A6, Executive, Legal, Mexico Legal, India Legal, A4 Short (270mm Paper), Folio, 16K
Tray #1 - Maximum Paper Capacity
Up to 520 sheets of 80 gsm plain paper
Tray #2 - Paper Type
A4, Letter, B5(JIS), A5, Executive, Legal, Mexico Legal, India Legal, A4 Short (270mm Paper), Folio, 16K
Tray #2 - Maximum Paper Capacity
LT-330CL: Up to 250 sheets of 80 gsm plain paper
LT-340CL: Up to 500 sheetsof 80 gsm plain paper
Multi-purpose Tray - Paper Type
Width: 76.2 to 215.9 mm
Length: 127 to 355.6 mm
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Envelope; 15 envelopes
Paper Output
Up to 250 sheets of 80 gsm plain paper
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
3.5" TFT ColorLCD
Memory Capacity
1 GB
Operation
Power Source
220-240V AC 50/60Hz
Power Consumption - Ready
Approx. 85 W
Power Consumption - Sleep
Approx. 15.6 W
Power Consumption - Power Off
Approx. 0.04 W
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7, 8.1, Server 2012, Server 2012 R2, 10, Server 2016, Server 2019
