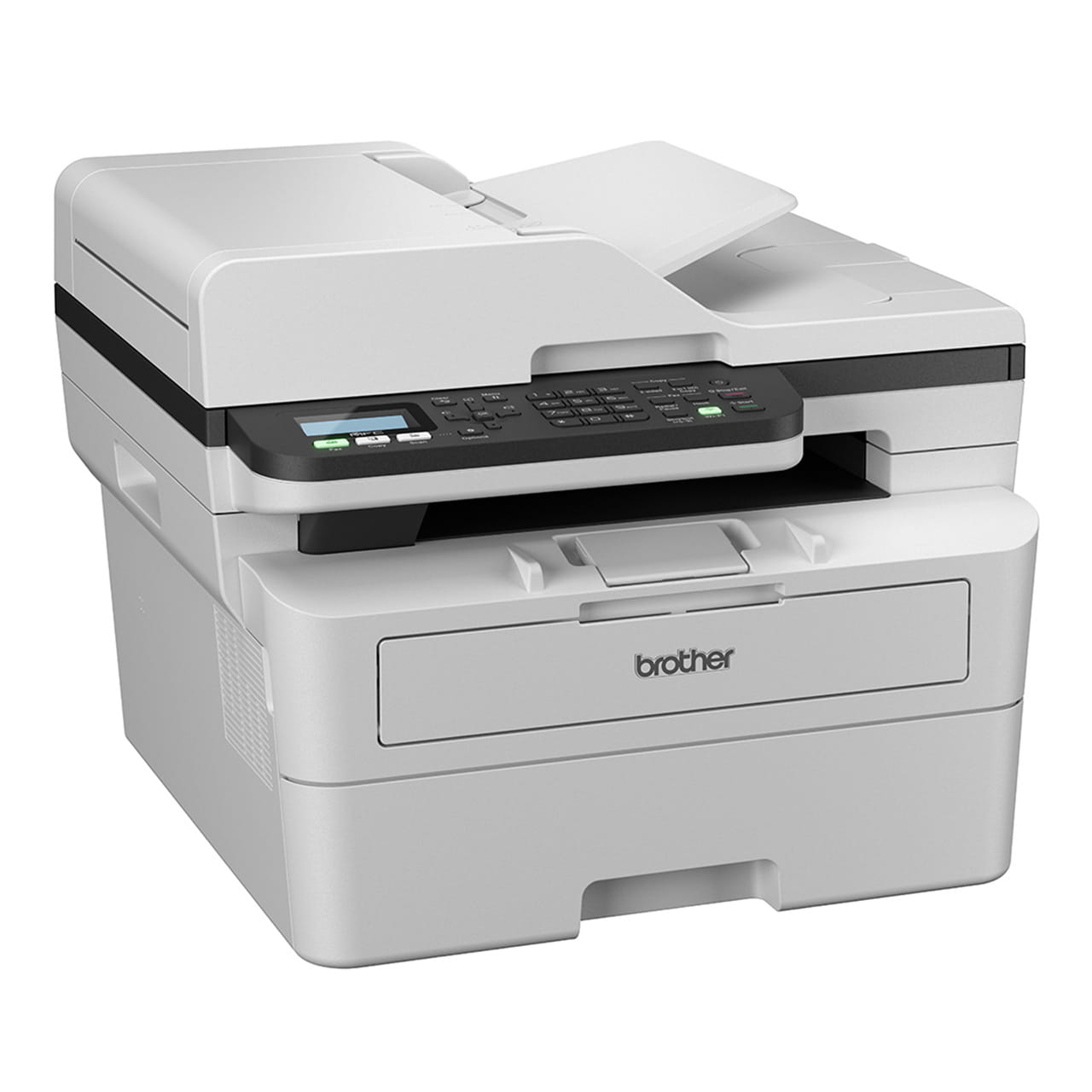

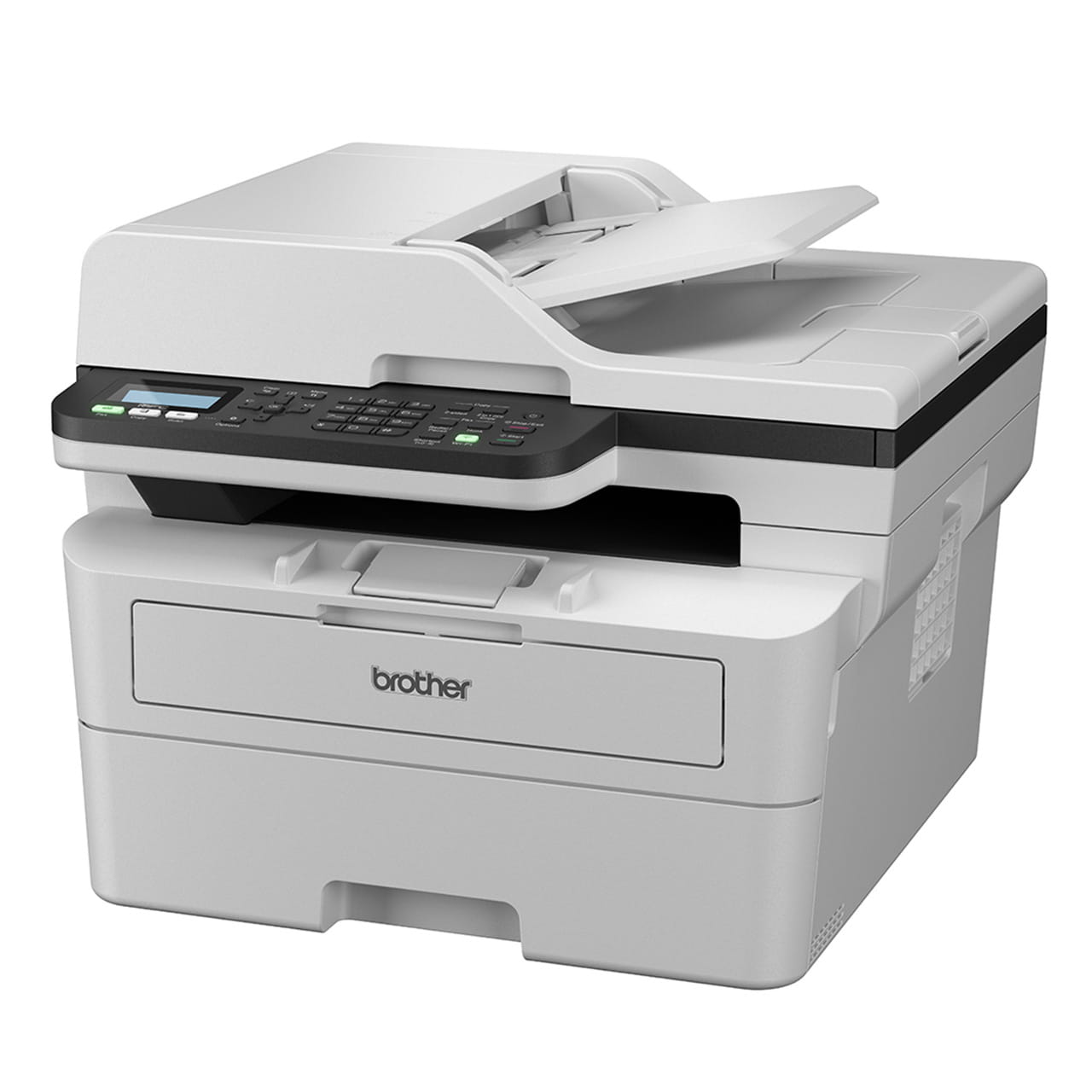

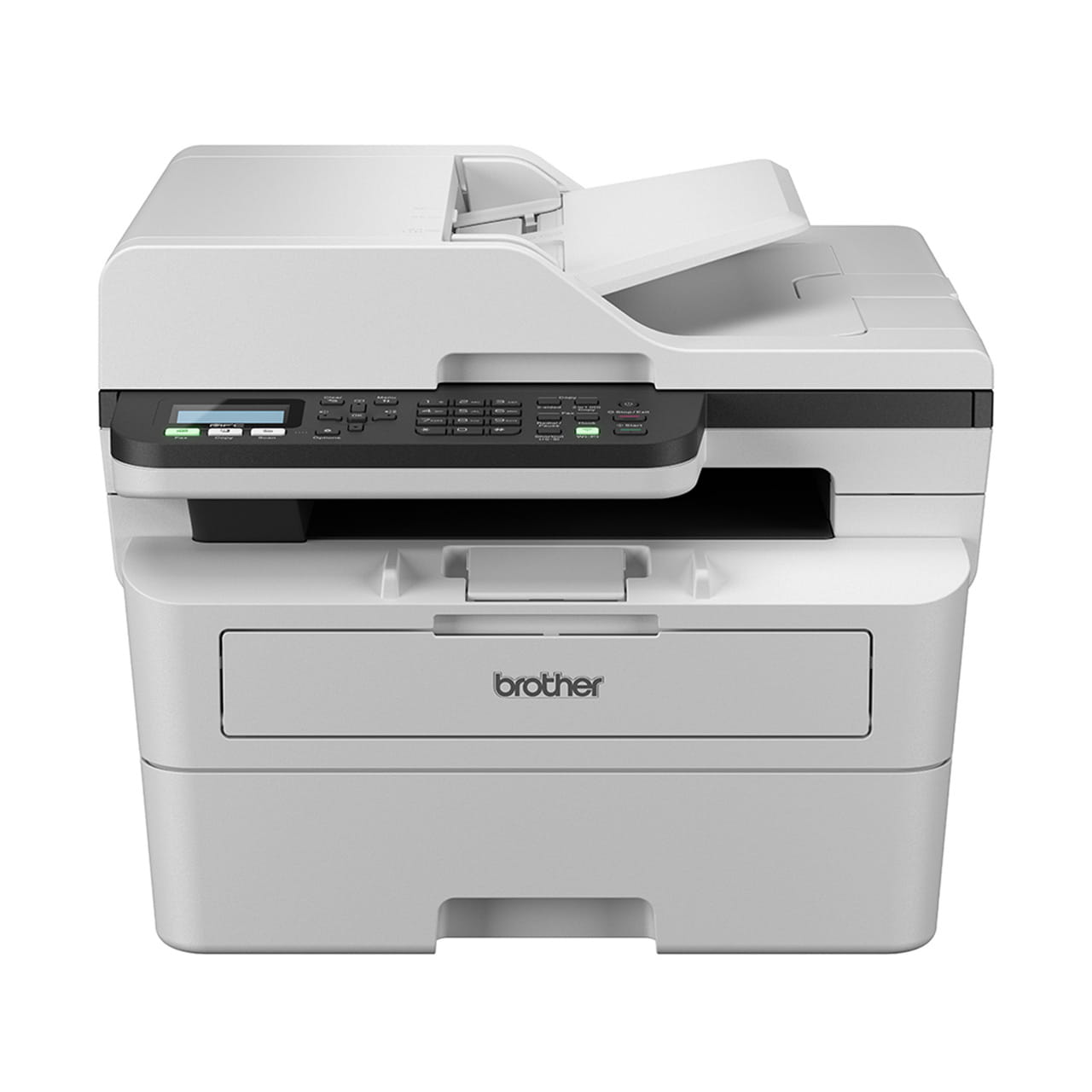

All-in-One Toner Box printer with Automatic 2-Sided Printing
- Up to 34 ppm
- Automatic 2-sided (Duplex) Print
- Automatic Document Feeder (Up to 50 sheets)
- Wireless & Mobile Printing
- Affordable Toner Box Series
*Model availability may vary by country
Important: Firmware update recommended for this model
Information
Overview
LOWEST printing cost*
The toner box series provides a lower total cost of ownership & does not compromise on quality.
GENUINE you can AFFORD
Skip the non-genuine toner headaches - our affordable Toner Box series delivers top-notch quality & performance, every time.
SECURE by design
Our devices are designed with the latest industry-standard security features in mind, ensuring your data remains protected as privacy regulations continue to evolve.
Productivity meets Sustainability
DUPLEX & N-1 PRINT
Saves you paper resources and toner usages by printing 2-sides or up to 4 pages in a single layout.

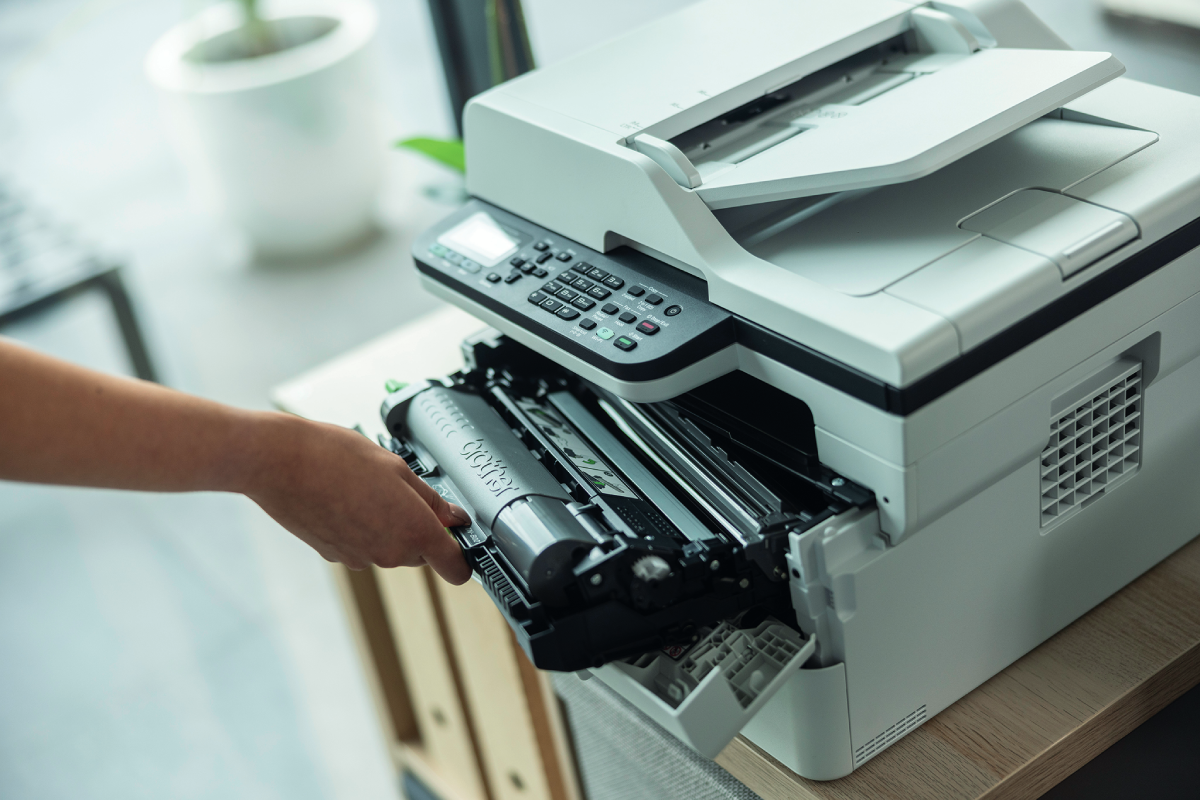

TONER SAVE MODE
Efficient usage of toner means less cartridges replacements, reducing overall plastic waste from each cycle.

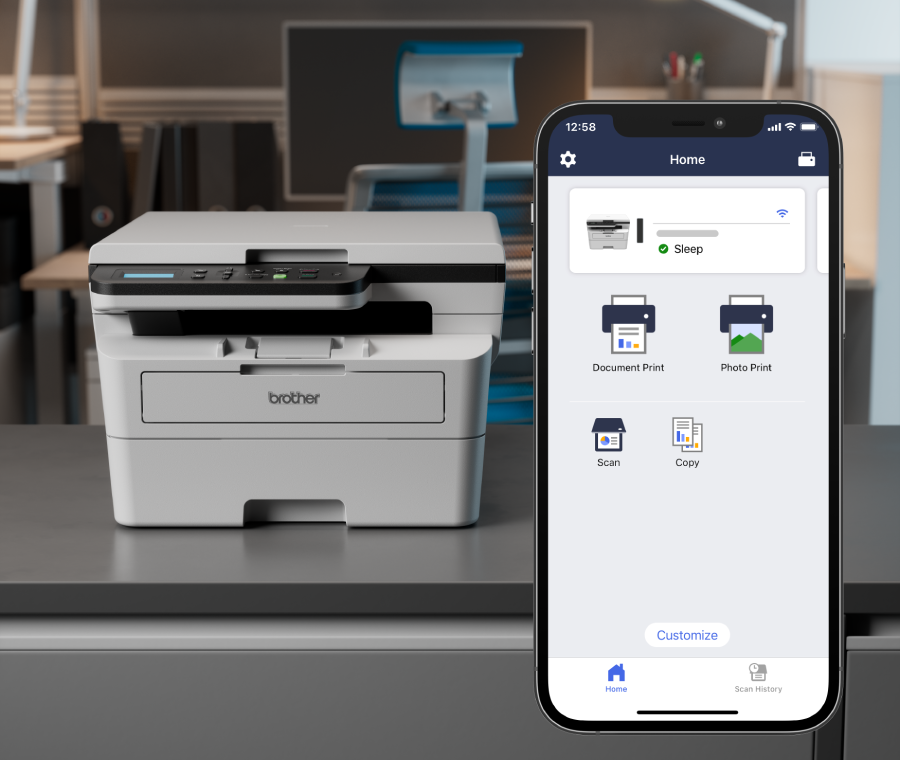

Easy printing with Mobile Connect App
Skip the computers for print operations. Print directly from your mobile to save some electricity in your work flow.
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Mono Laser Printer
Product Dimensions (Width X Depth X Height)
410 mm × 399 mm × 319 mm
Weight
10.7 kg
Print Speed
Up to 34/36 ppm (A4/LTR)
Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Thin Envelope, Thick Envelope
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper),COM-10, DL, C5, Monarch
(Legal and Folio size paper are supported only in some countries.)
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 Year Carry in Warranty
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Maximum Paper Weight
60-230 gsm
Manual Feed Slot - Maximum Paper Capacity
Up to 1 page
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 120 sheets of 80 gsm plain paper (face down delivery to the face down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Resolution - Interpolated
Up to 19,200 x 19,200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 400 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Out of Paper Reception
Up to 400 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
PC Fax - Sending
Yes (Mono)
PC Fax - Receiving
Yes (Mono)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
2 Lines LCD (16 characters)
Memory Capacity
256 MB
Operation
Power Source
AC 220 V to 240 V 50/60Hz
Power Consumption - Ready
Approximately 43 W
Power Consumption - Sleep
Approximately 4.1 W
Power Consumption - Power Off
Approximately 0.08 W
Supported Operating Systems
Supported OS
Windows 10, 11
Server 2012, Server 2012 R2, Server 2016, Server 2019, Server 2022
