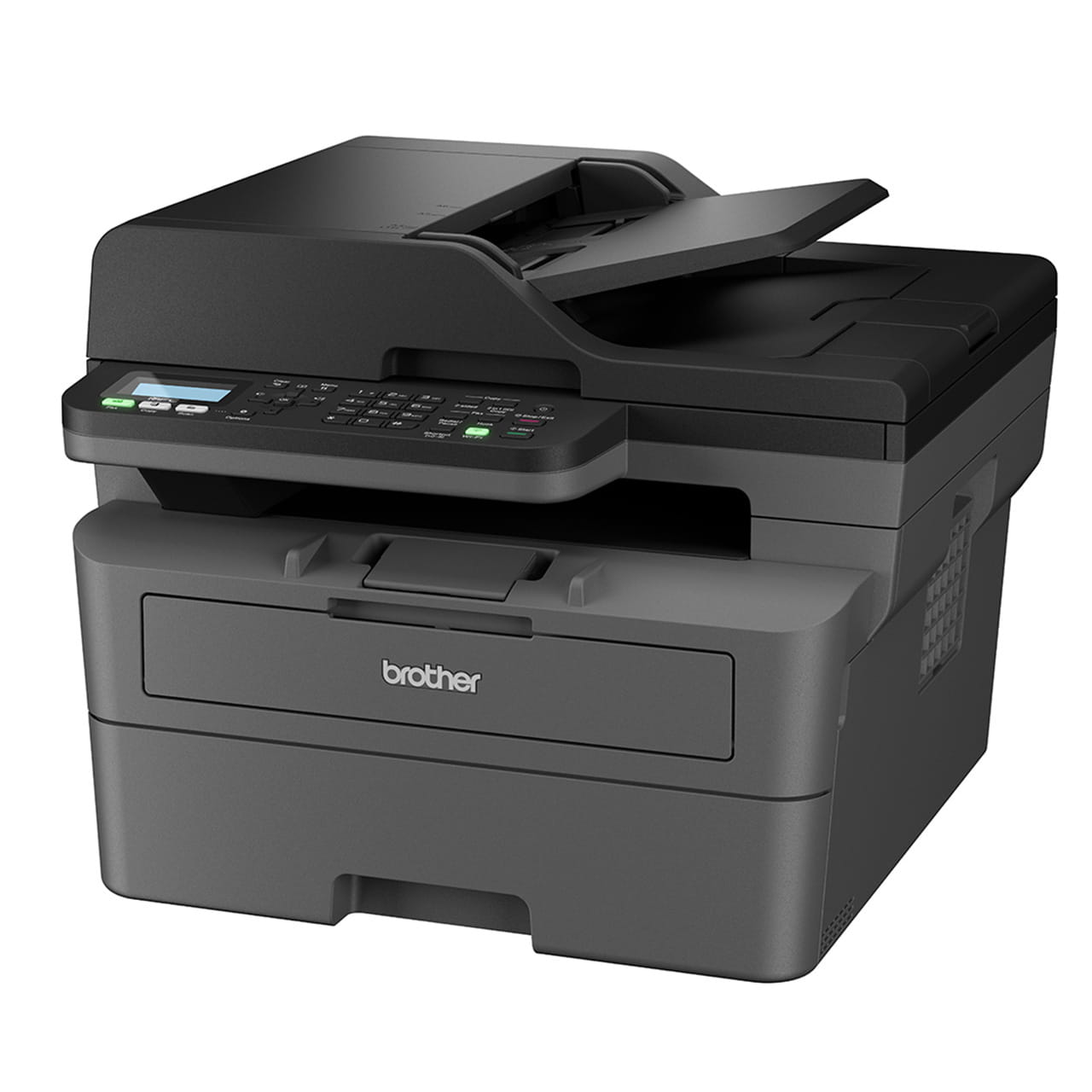

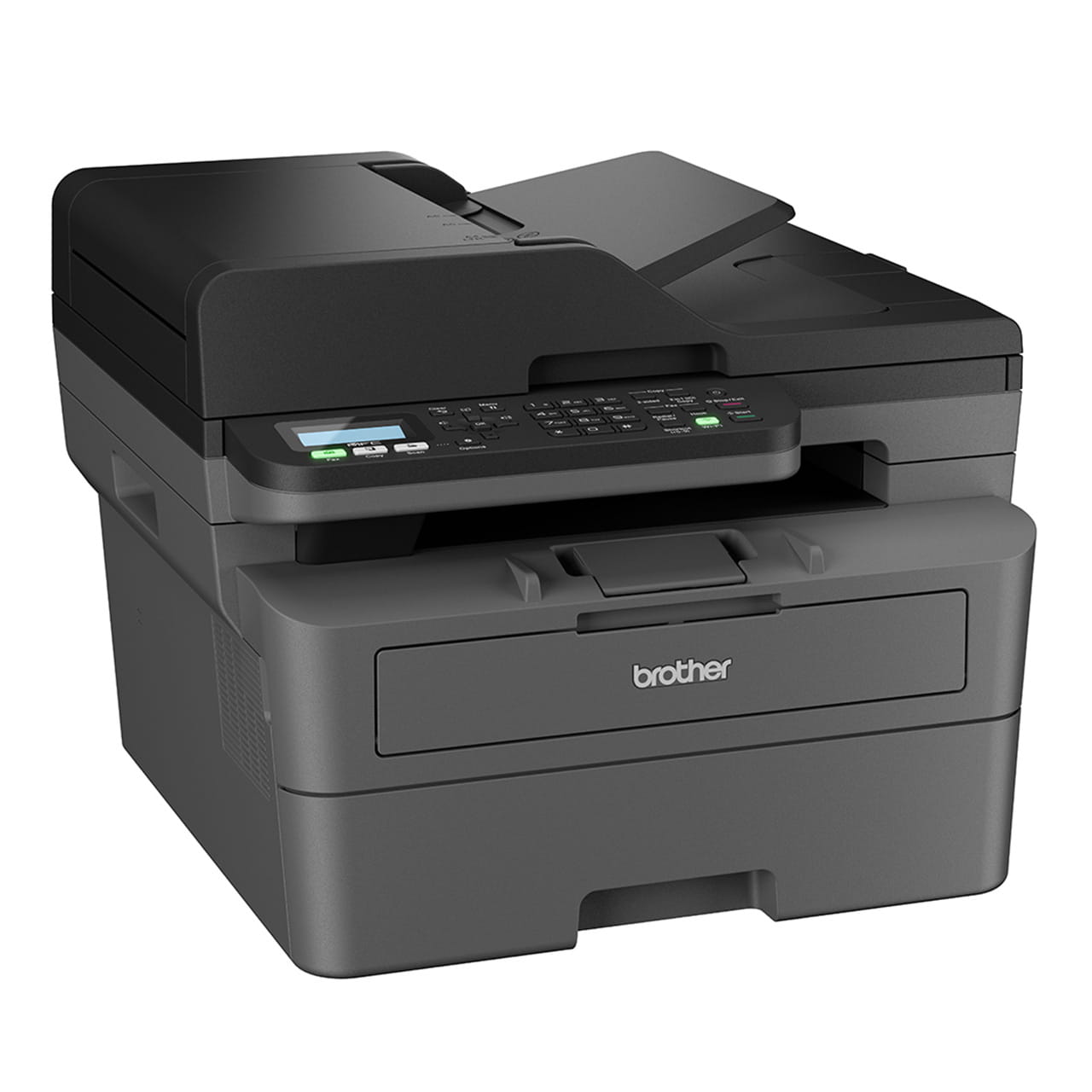

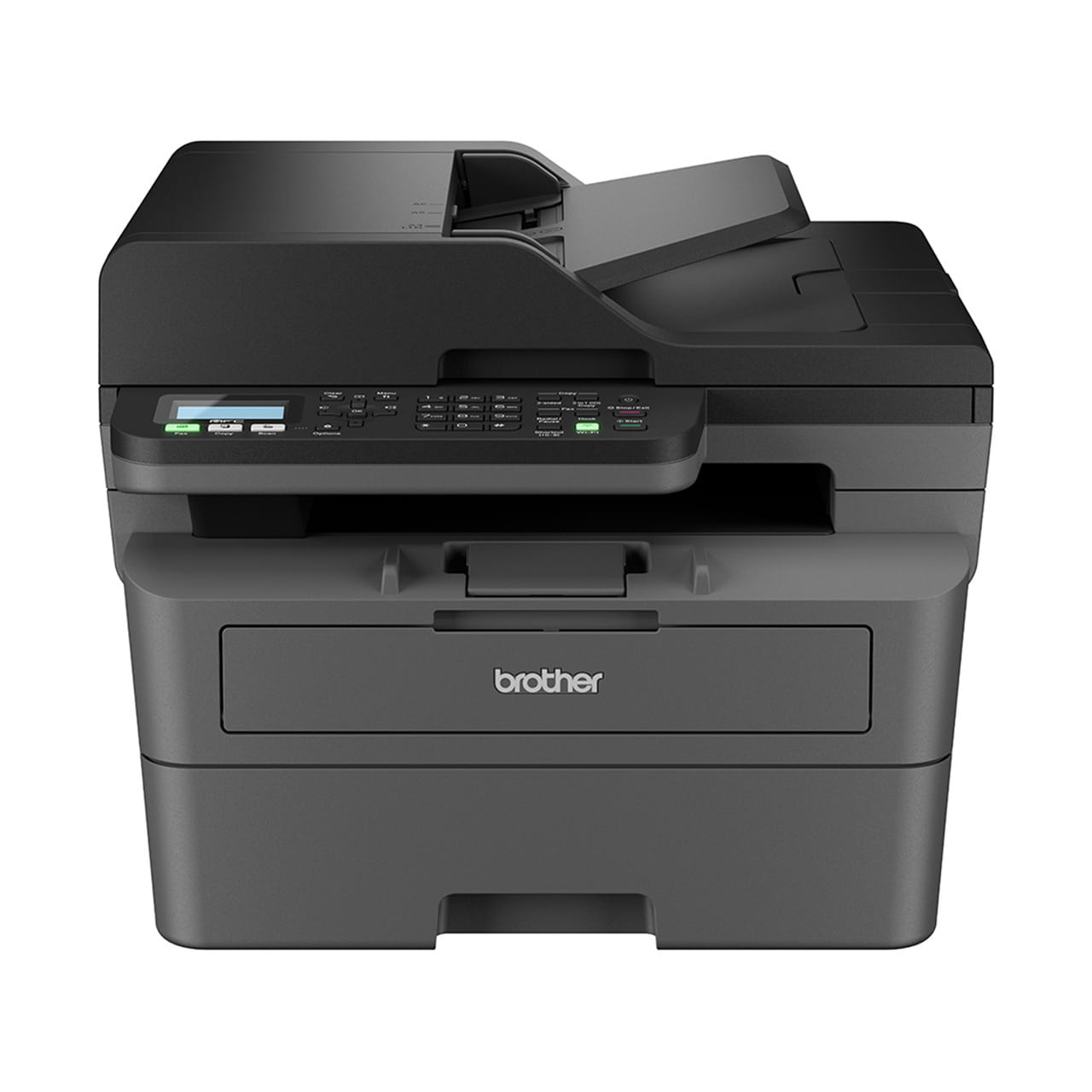

Compact 4-in-1 Monochrome Multi-Function Centre Laser Printer with Automatic 2-sided Printing
- Up to 34 ppm
- Automatic 2-sided (Duplex) Print
- Hi-Speed USB, Wired & Wireless Connectivity
- Automatic Document Feeder (Up to 50 sheets)
- Mobile printing via Brother Mobile Connect app, Apple AirPrint, & Moporia Print
Important: Firmware update recommended for this model
Information
Overview
Fast Print Speed
Get your work efficiently with up to 34ppm, fast warm-up and first print out time of less than 8.5 seconds.
Quiet and Compact
Save space and reduce noise and energy consumption with Quiet Mode option.
Versatility in One
Enjoy multiple functions as Print, Scan, Copy and Fax in a single machine.
Reliability meets Sustainability
With Brother’s new range of monochrome laser printer, you can take your green practices a step further.
- Automatic Duplex printing helps lessen the paper usage by 50%.
- Optimize resolution for less toner reloads, cutting down the number of plastics used.
- Maximize every sheet of paper with N-in-1 printing allowing you to combine up to 4 pages per side.
Streamlined connectivity for on-the-go users
Streamline workflows with the Brother Mobile Connect app. Print, scan and copy even on the go*, through additional integration with apps on Android and Apple devices.
*When connected to the same network
Flexible connectivity for wider printing option
This range of monochrome laser printer allows you to experience flexible connectivity from Hi-Speed USB, Ethernet, Wi-Fi direct to Wireless LAN, giving you more control and convenience.*
*Applicable to selected models only.
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Mono Laser Printer
Product Dimensions (Width X Depth X Height)
410 mm × 399 mm × 319 mm
Weight
10.5 kg
Print Speed
Up to 34/36 ppm (A4/LTR)
Paper Type
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Thin Envelope, Thick Envelope
Paper Size
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper),COM-10, DL, C5, Monarch
(Legal and Folio size paper are supported only in some countries.)
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 Year Carry in Warranty
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
(Legal and Folio size paper are supported only in some countries.)
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Paper Type
Width: 76.2 to 215.9 mm (3.0" to 8.5")
Length: 127 to 355.6 mm (4.57" to 14")
Envelope: COM-10, DL, C5, Monarch
Manual Feed Slot - Maximum Paper Capacity
Up to 1 page
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face down delivery to the face down output paper tray)
1 sheet (face up delivery to the face up output tray)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n, IEEE 802.11g/n (Wi-Fi Direct)
Display & Memory
Display Type
2 Lines LCD (16 characters)
Memory Capacity
256 MB
Operation
Power Source
AC 220 V to 240 V 50/60Hz
Power Consumption - Ready
Approximately 43 W
Power Consumption - Sleep
Approximately 4.1 W
Power Consumption - Power Off
Approximately 0.08 W
Noise Level
49 dB(A)
Supported Operating Systems
Supported OS
Windows 10, 11, Server 2012, Server 2012 R2, Server 2016, Server 2019, Server2022
