4-in-1 Professional Color Laser Multi-Function Center with Automatic 2-sided Printing and Wireless Networking
- Up to 31 ppm (Color & Mono)
- Automatic 2-sided Print and Scan
- Wired, Wireless & WiFi Direct
- Up to 2,400 x 600 dpi
- Replaceable Super High-yield toner
Information
Overview

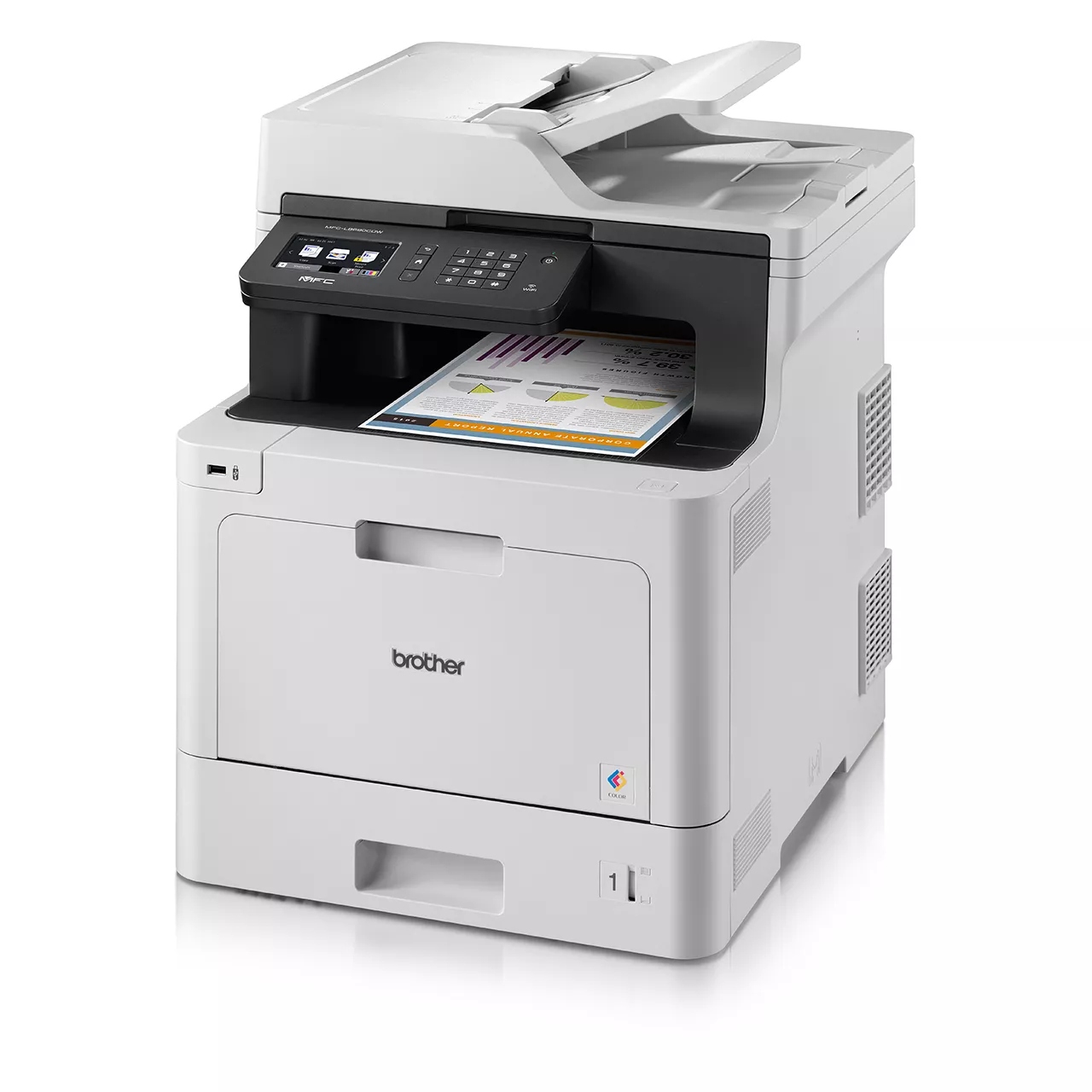

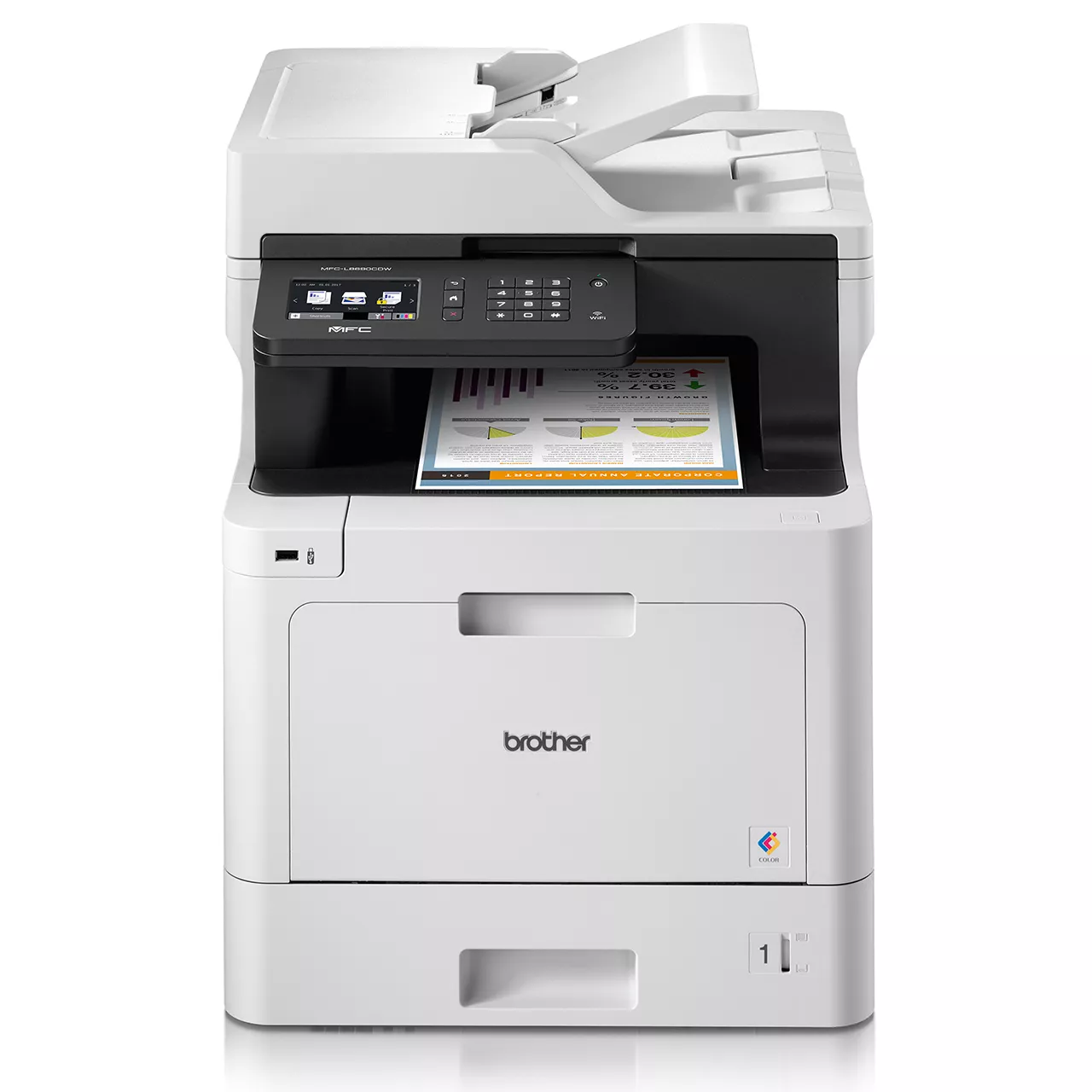

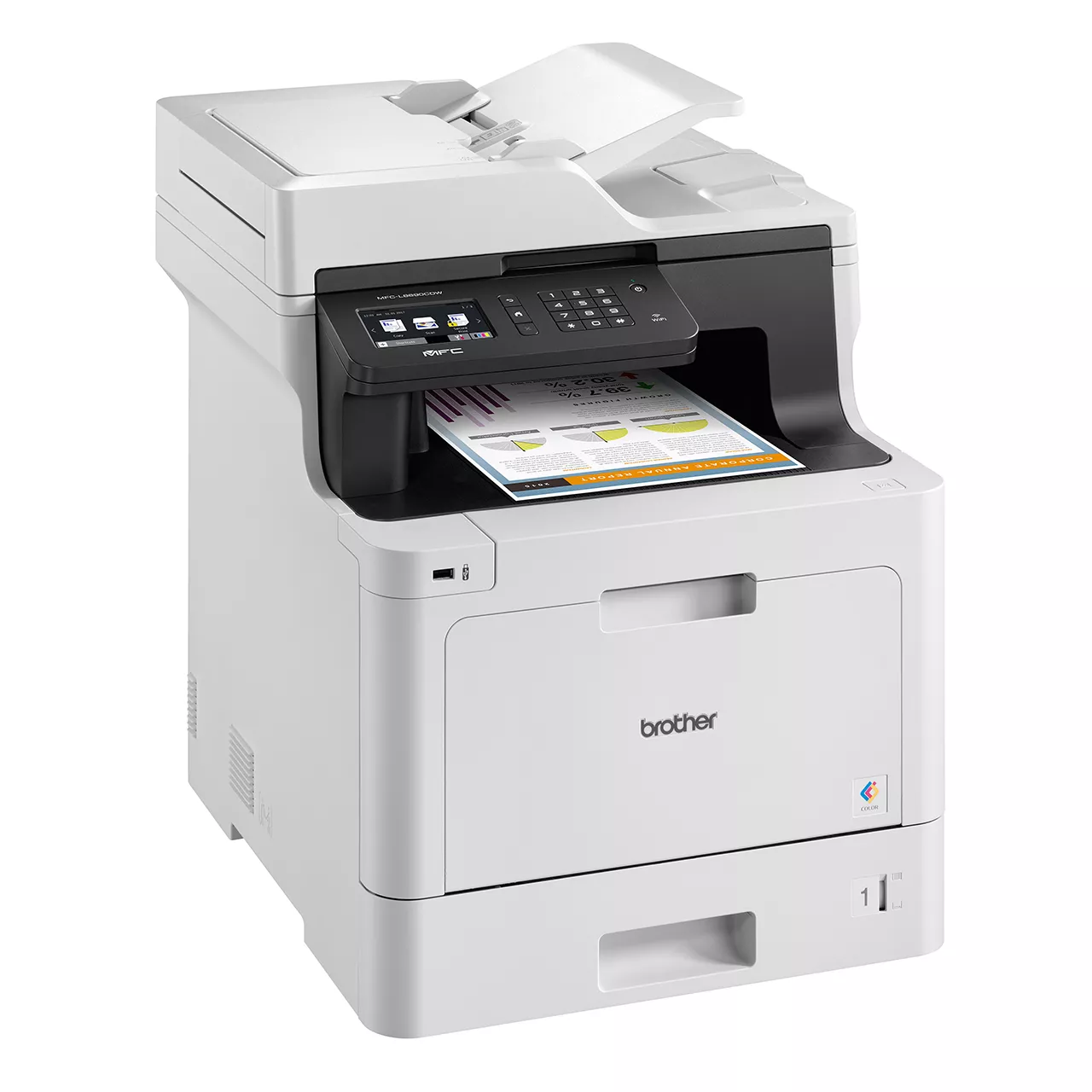

Brother MFC-L8690CDW Color Laser Multi-Function Center
Leading businesses need a printer that’s in sync with workflows and will help keep a competitive edge. And that’s exactly why Brother’s MFC-L8690CDW All in One Color Laser Printer is a popular choice. With USB, wired and wireless connectivity, up to 31ppm print speed, a 9.3cm touchscreen, 300 sheet paper input and the ability to print, scan, copy and fax, this printer integrates seamlessly into your processes and can handle a heavy workload. Add to all that its reputation for accuracy and reliability, and the MFC-L8690CDW allows you to operate with complete confidence.
- Print, copy, scan and fax
- Up to 31 ppm mono and color print speeds
- Automatic 2-sided print
- Up to 50 Sheet ADF (Automatic 2-sided)
- Up to 28ppm (56ipm) Scan Speed
- 9.3cm touchscreen LCD
- USB, Wireless and Gigabit Wired network ready
- Mobile and tablet connectivity including AirPrint, Google Cloud and Wi-Fi Direct
- 300 sheet standard paper input
- 6,500 Cyan, Magenta & Yellow inbox toners
- 9,000 Cyan, Magenta & Yellow replacement toners
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Color Laser Printer
Product Dimensions (Width X Depth X Height)
435 mm × 526 mm × 539 mm
Weight
28.1 kg
Print Speed
31 / 33 ppm (A4/Letter)
Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Paper Size
A4, Letter, B5 (ISO/JIS), A5, A5(Long Edge), A6, Executive, Legal, Folio, Exe, LTR, LGL, C5 Envelope, Com-10, DL Envelope, Monarch
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 Year on-site warranty
Resolution
600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper, Glossy Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 g/m2 Plain Paper
Multi-purpose Tray - Maximum Paper Capacity
50 sheets Envelope; 10 envelopes up to 10mm thick
Paper Output
150 Sheets Face Down (80g/m2) 1 sheet face-up (straight paper path)
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Sorts/Stacks (up to 999 pages)
Resolution
Prints up to 1,200 x 600dpi
Scan
Resolution - Interpolated
Up to 19,200 × 19,200 dpi
Resolution - Scanner Glass
Up to 1,200 × 2,400 dpi (optical)
Resolution - Automatic Document Feeder (ADF)
Up to 1,200 x 600 dpi (optical)
Fax
Modem Speed
33,600 bps
Memory Transmission
Up to 500 pages (ITU-T Test Chart, Standard Resolution, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart, Standard Resolution, JBIG)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct)
Display & Memory
Display Type
3.7" TFT Colour LCD
Memory Capacity
1 GB
Operation
Power Source
AC 220 to 240V 50/60Hz
Power Consumption - Ready
Approx. 70 W
Power Consumption - Sleep
Approx. 10.0 W
Power Consumption - Power Off
Approx. 0.03 W
Noise Level
49 dB (A) (Approx.)
Supported Operating Systems
Supported OS
Server 2008 (Network only), Server 2008 R2 (Network only), 7, 8, 8.1, Server 2012 (Network only), Server 2012 R2 (Network only), 10, Server 2016 (Network only)
macOS v10.10.5, v10.11.x, v10.12 (Download only)
