4-in-1 Professional Color Laser Multi-Function Center with Automatic 2-sided Printing and Wireless Connectivity
- Up to 31 ppm (Color & Mono)
- Automatic 2-sided Print & Scan
- Wired, Wireless & WiFi Direct
- Built-in NFC Reader
- Replaceable Super High-yield toner
Information
Overview

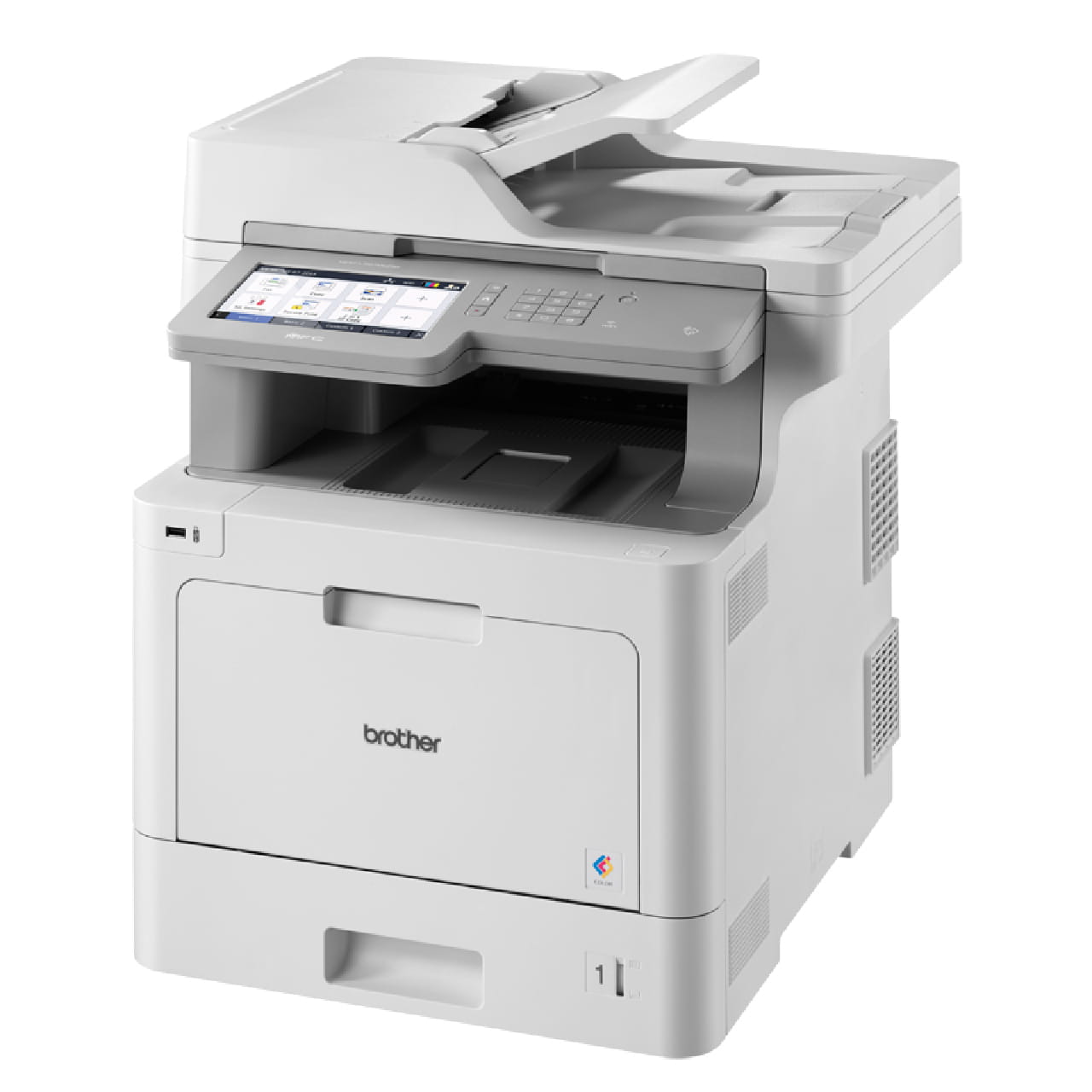

Brother MFC-L9570CDW Color Laser Multi-Function Center
The Brother MFC-L9570CDW all in one color laser printer is an excellent choice for mid-sized workgroups with demanding print volumes that need a low total cost of ownership and reliable, business quality output. In-box 6,500-page toner cartridges offer built-in value, and ultra high-yield 9,000-page replacement toner cartridges offer low cost output‡. This high-performance printer helps to increase your productivity with print speeds up to 31ppm, and scan speeds for double-sided pages up to 104ipm. Scalable for virtually any office, add either optional trays to increase capacity to 1,300 sheets or transform this printer into a floor-standing model with the tower tray option (520 sheets x 4 trays). Advanced security features offer network user authentication and help limit document and device access.
- Print, copy, scan and fax
- Up to 31 ppm mono and color print speeds
- Automatic 2-sided print
- Up to 80 Sheet ADF (Automatic 2-sided)
- Up to 50ppm (100ipm) Scan Speed
- 17.6cm touchscreen LCD
- USB, Wireless and Gigabit Wired network ready
- NFC connection (for mobile print/scan & card authentication)
- Mobile and tablet connectivity including AirPrint, Google Cloud and Wi-Fi Direct
- 300 sheet standard paper input
- 6,500 Cyan, Magenta & Yellow inbox toners
- 9,000 Cyan, Magenta & Yellow replacement toners
Specifications
Basic Specs
Functions
Print, Copy, Scan, Fax
Printer Type
Color Laser Printer
Product Dimensions (Width X Depth X Height)
495 mm × 526 mm × 549 mm
Weight
29.7 kg
Print Speed
Up to 31 ppm
Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Paper Size
A4, Letter, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Warranty
1 Year on-site warranty
Resolution
2,400dpi (2,400 x 600) default
Borderless
N/A
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Glossy Paper
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Up to 250 sheets
Tray #2 - Maximum Paper Capacity
(Optional Tower Tray) Up to 520 sheets per tray
Multi-purpose Tray - Paper Type
Plain paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Envelope Thin, Envelope Thick, Glossy Paper
Multi-purpose Tray - Maximum Paper Capacity
Up to 50 sheets of 80 g/m2 Plain Paper (Up to 10 envelopes)
Manual Feed Slot - Paper Type
N/A
Manual Feed Slot - Maximum Paper Capacity
N/A
Paper Output
Up to 150 sheets Face Down
Copy
Colour / Monochrome
Yes
Yes
Multiple Copies
Sorts/Stacks (up to 99 pages)
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
2-Sided (Duplex) - Paper Size
A4
Scan
Resolution - Interpolated
Up to 19,200 x 19,200 dpi (interpolated)
Resolution - Scanner Glass
Up to 1,200 × 2,400 dpi (optical)
Resolution - Automatic Document Feeder (ADF)
Up to 1,200 x 600 dpi (optical)
Fax
Compatibility
ITU-T Super Group 3
Modem Speed
33,600bps (Fax)
Memory Transmission
Up to 500 pages
Out of Paper Reception
Up to 500 pages
PC Fax - Sending
Yes
PC Fax - Receiving
Yes (Windows only)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, Wireless LAN IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct), NFC
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
17.6cm Colour LCD Touchscreen
Memory Capacity
1 GB
Operation
Power Source
AC 220 to 240V 50/60Hz
Power Consumption - Ready
Approx. 70W
Power Consumption - Sleep
Approx. 10W
Power Consumption - Power Off
Approx. 0.03W
Noise Level
49 dB (A) (Approx.)
Supported Operating Systems
Supported OS
Windows 7, Windows 8 , Windows 8.1 , Windows 10, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac OS X 10.10.5 or greater
Linux
