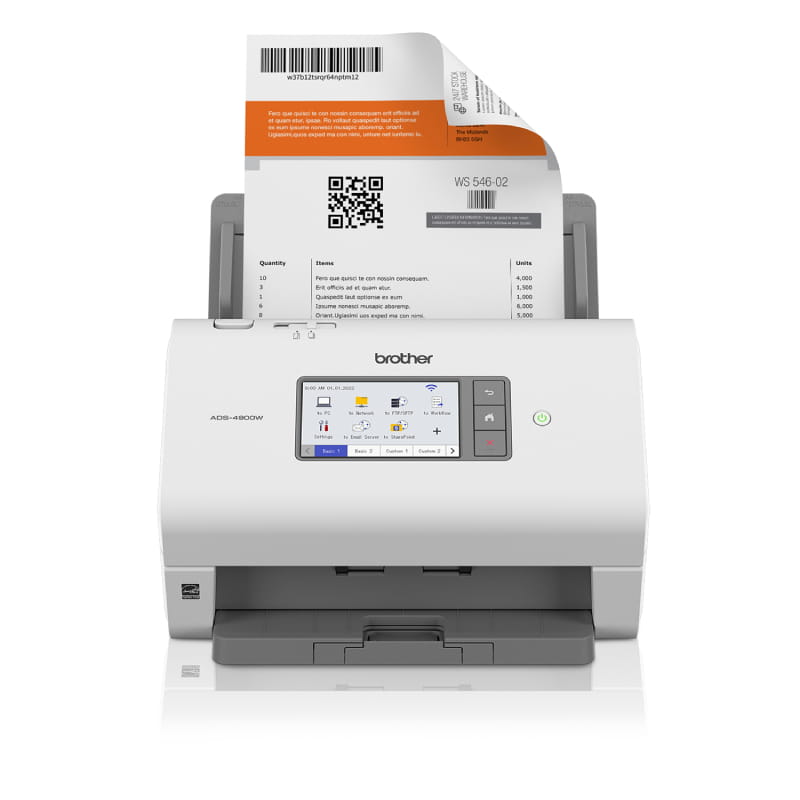

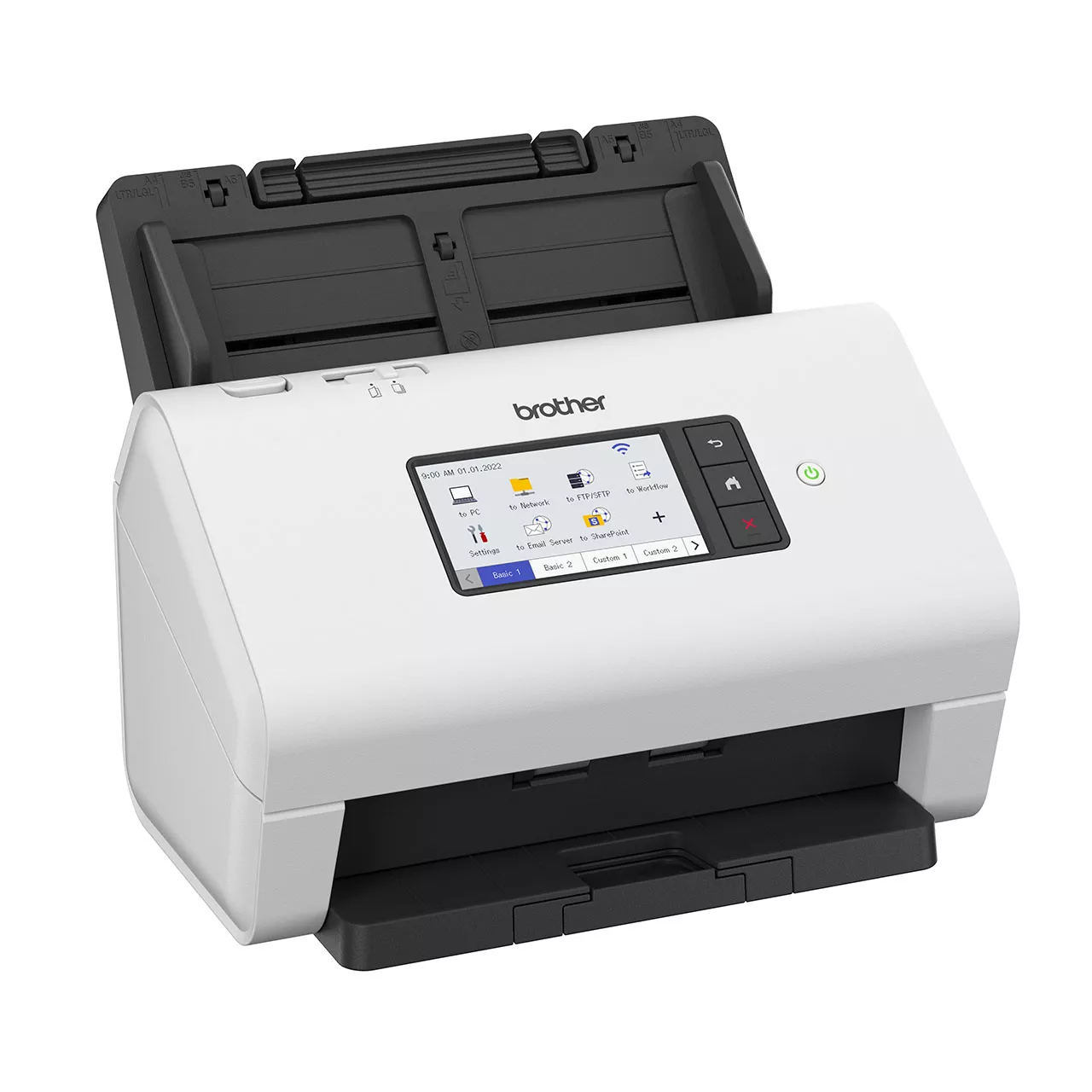

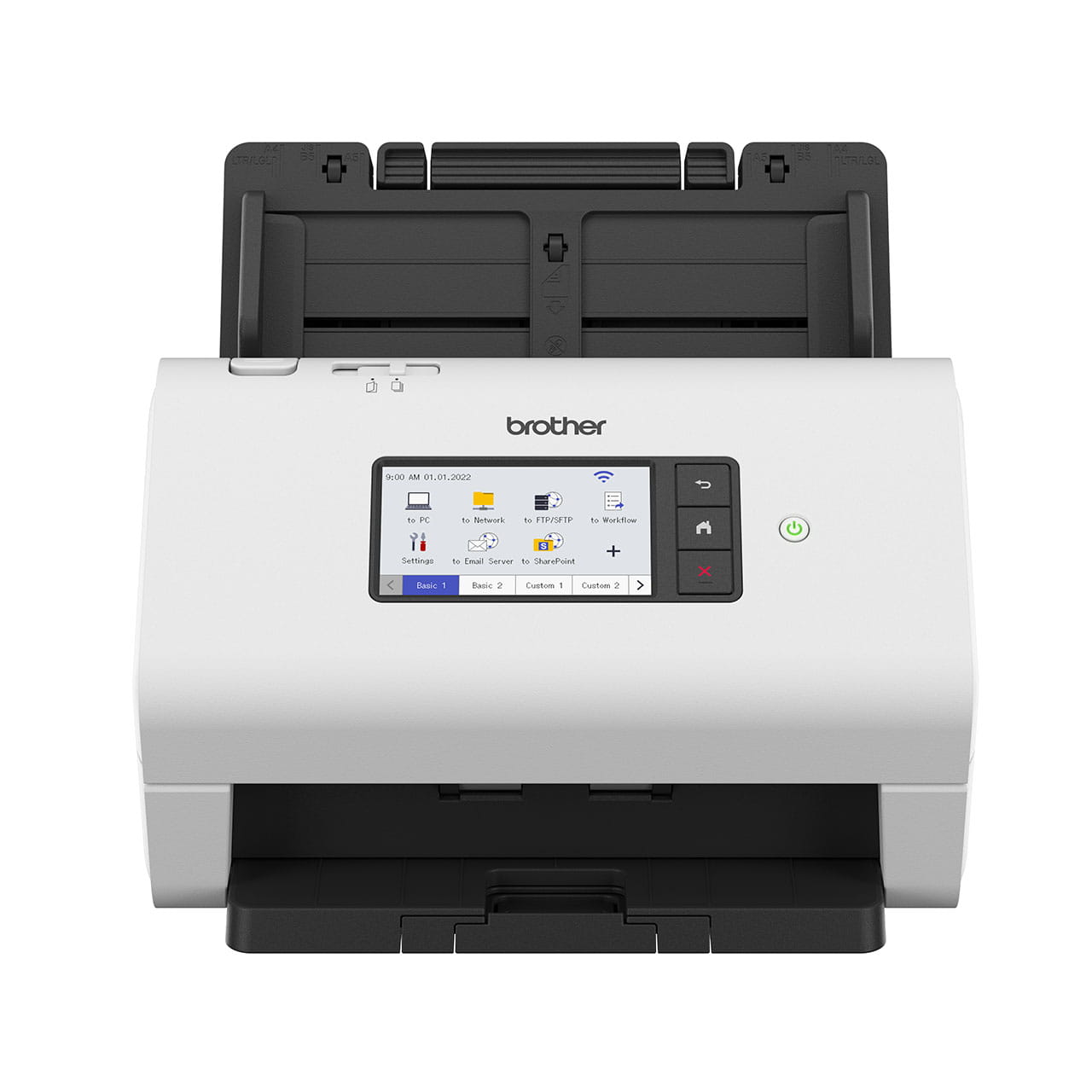

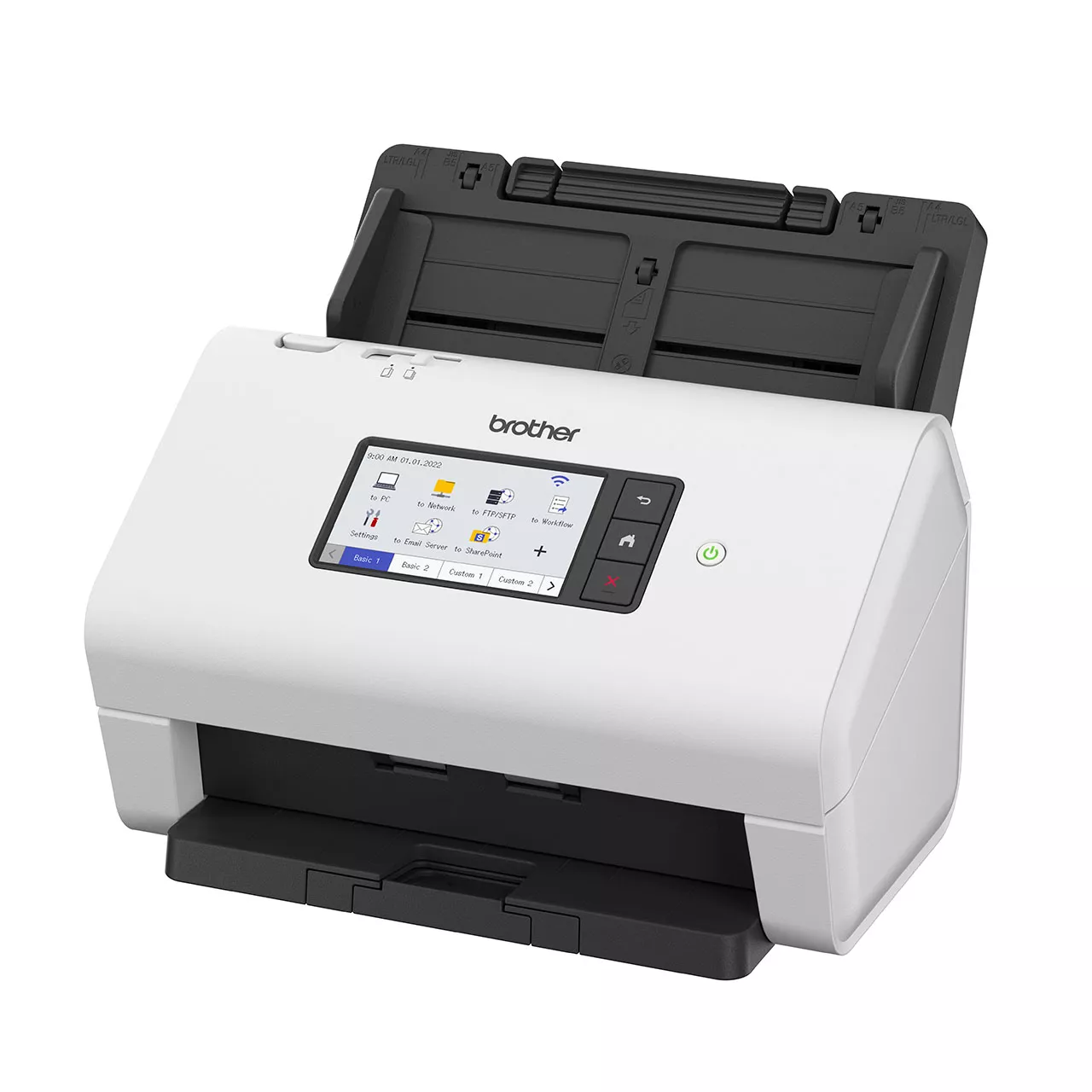

High Performance Professional Desktop Scanner
- 100-sheet Automatic Document Feeder (ADF)
- 2-sided scanning up to 120ipm
- Optical character recognition (OCR)
- Optimise workflows with Kofax, NewSoft and ScanEssentials software
- Connect and scan using USB 3.0, USB host, Wi-Fi and network

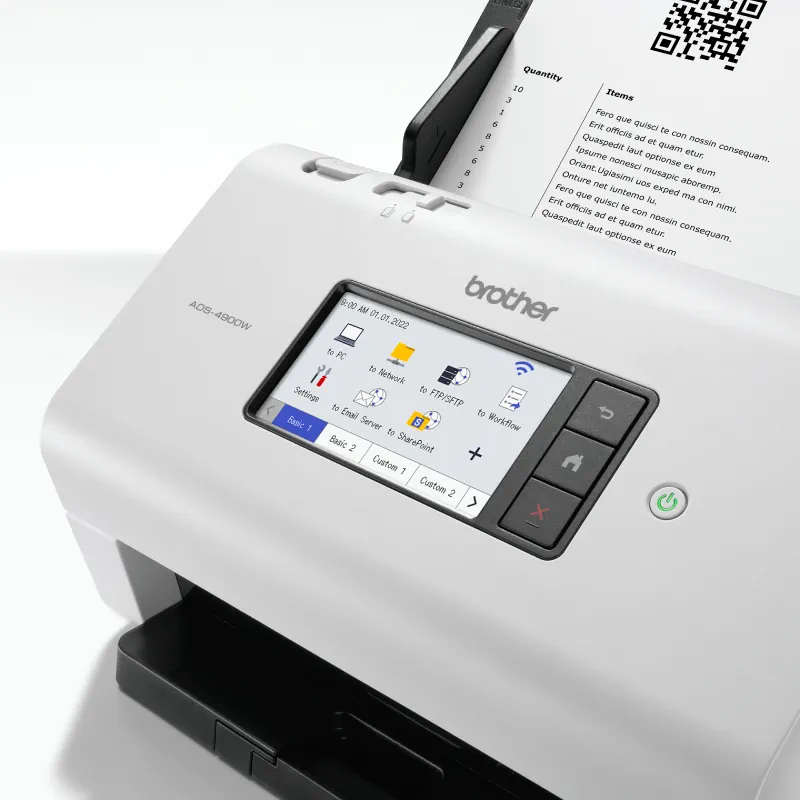

- 10.9cm touchscreen
Information
Overview

Fast and reliable

Simple and intuitive

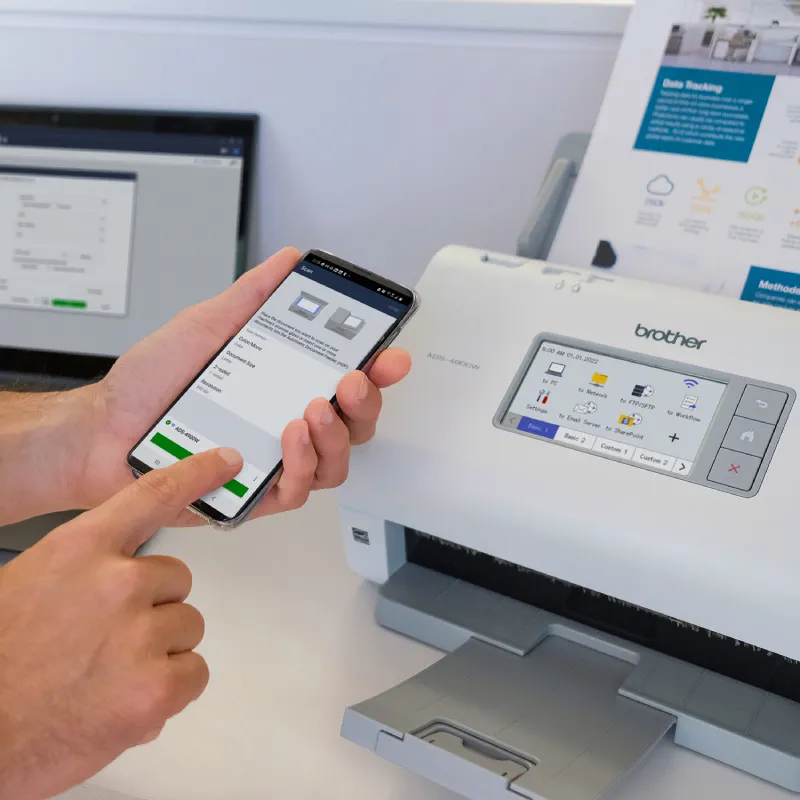

Advanced connectivity

Advanced image capture and processing
Enjoy effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.

Automatically route documents with barcodes
Reduce the labor-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.

Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and NewSoft. Available as standard with this device.
See the full range of Brother Desktop Document Scanners
Specifications
Basic Specs
Scanning Speed
60 ppm @ 300 dpi
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Document Size - Single Sheet - Length
51 mm to 5,000 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Product Dimensions (Width X Depth X Height)
300 mm × 236 mm × 247 mm
Weight
3.37 kg
ADF (Automatic Document Feeder)
Up to 100 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity
1024MB
Warranty
1 Year Carry in Warranty
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
4.3 in. (109.2 mm) TFT colour LCD screen
Operation
Power Source
AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 34W
Power Consumption - Ready
Approx. 7.7W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
