High Speed Professional Wireless Label Printer
- 176 mm / sec. print speed
- DK width: from 12mm up to 62mm
- USB, Network, Wireless, Bluetooth (MFi) connectivity
- Print labels in both red or black text
Information
Overview

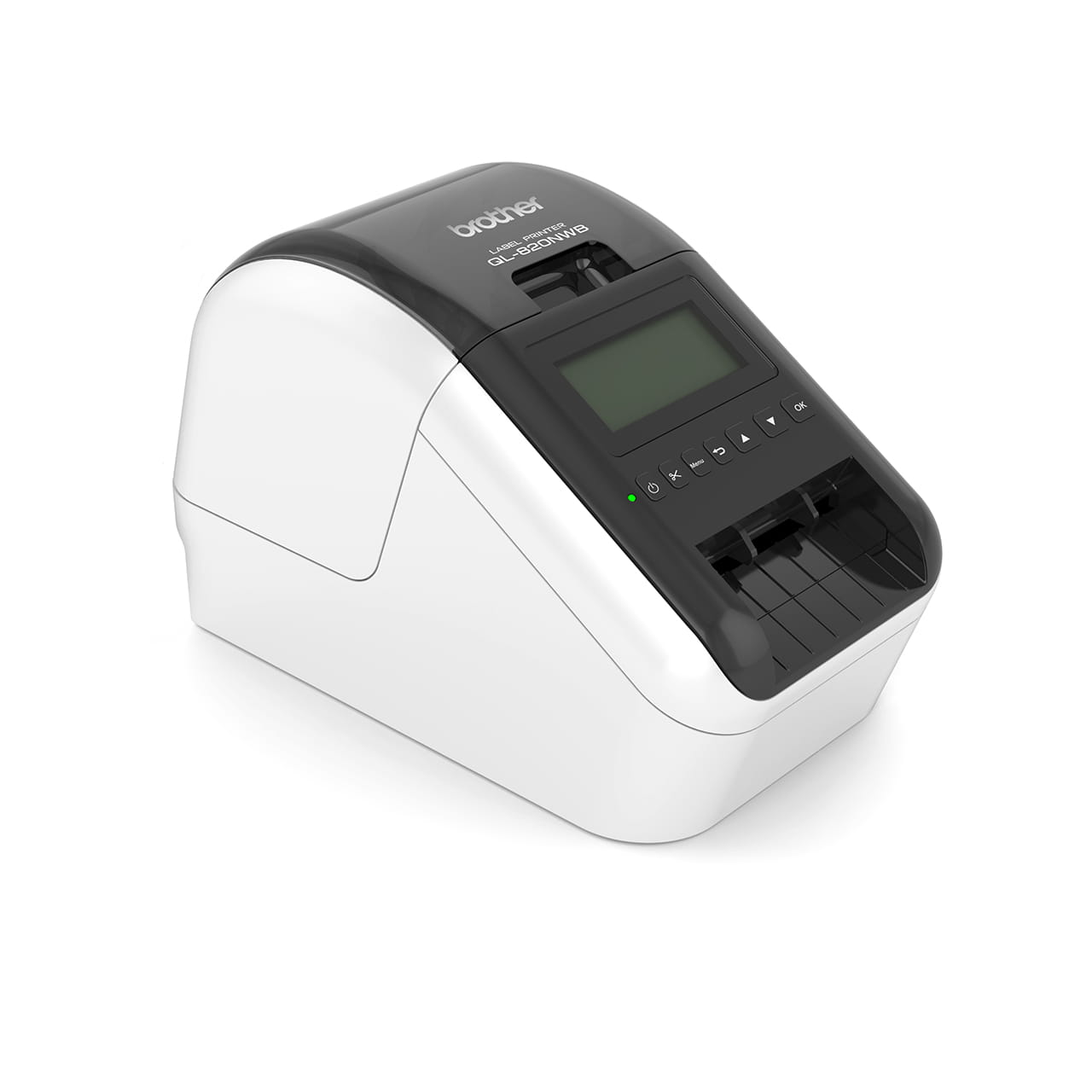

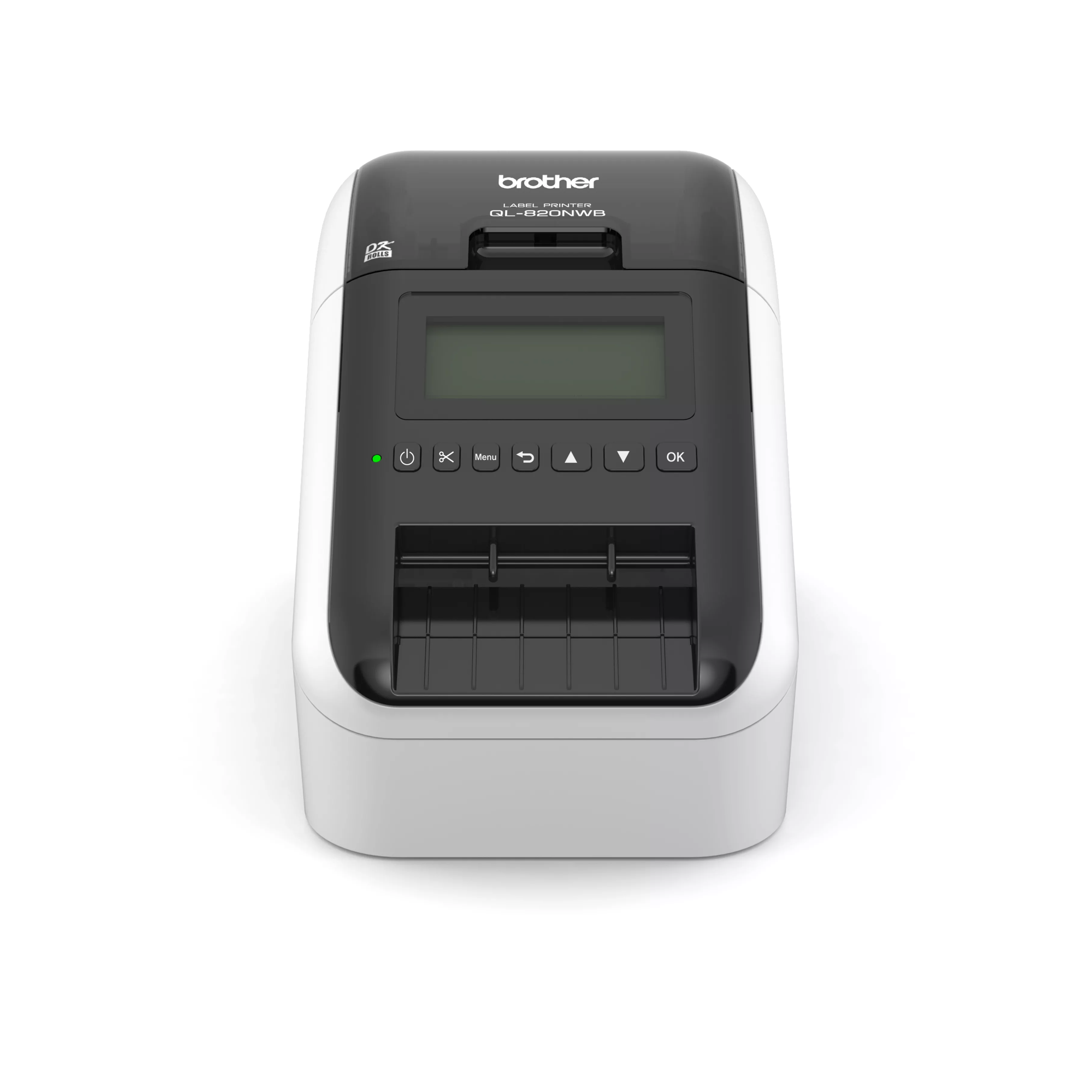

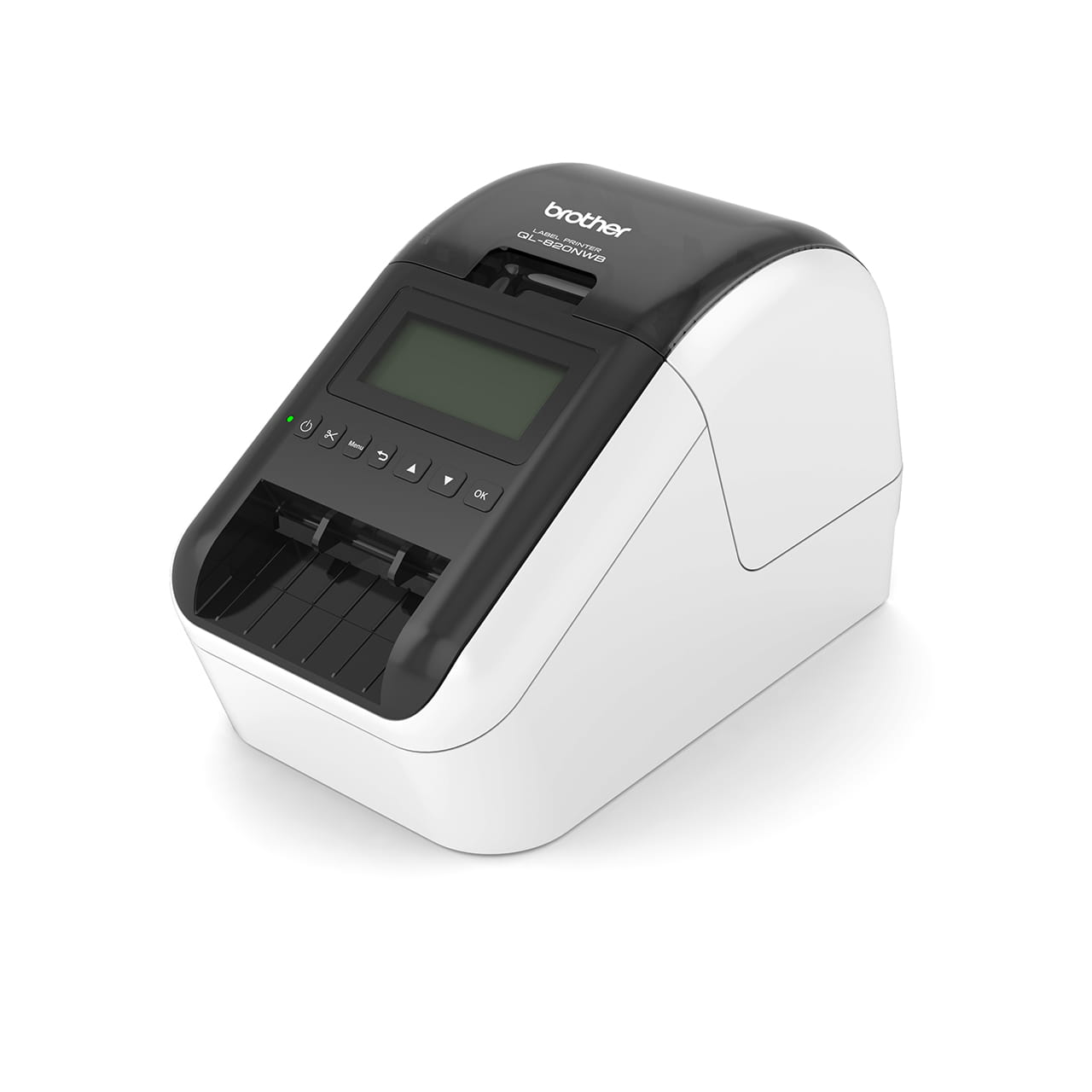

Brother QL-820NWB For Business
Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display. When used with special rolls, you can print labels that can contain both black and red print without needing any ink.
And when you can print custom sized labels up to one meter in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.
Full range of connectivity
With USB, wired Ethernet, Wi-Fi, and Bluetooth as standard, you have all your options covered. AirPrint and MFi certification (Made for iPod/iPhone/iPad) ensures maximum compatibility with Apple products too.
Print from PC, Mac, iOS and Android devices
TChoose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.
Integrated LCD for easy operation
Easily select the labels stored in memory that you wish to print, thanks to the large backlit graphic display. Setting up and configuring the machine is made much easier, as is troubleshooting if any errors occur with on-screen guidance on the problem and how to easily resolve it.
Optional Li-ion battery base
There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.
Large range of labels for any application
The QL series label printers use Brother DK rolls – that easily slot-in for fast label changes. Several types are available: Pre-sized die-cut adhesive labels in paper and plastic film material. Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre). Non-adhesive card ideal for receipts and name badges. Removable adhesive for repositioning labels.
Specifications
Basic Specs
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Warranty
1 Year Carry in Warranty
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Yes (full auto cut / guillotine type)
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
6MB, 255 templates
Power
Power Source
240V AC external adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
