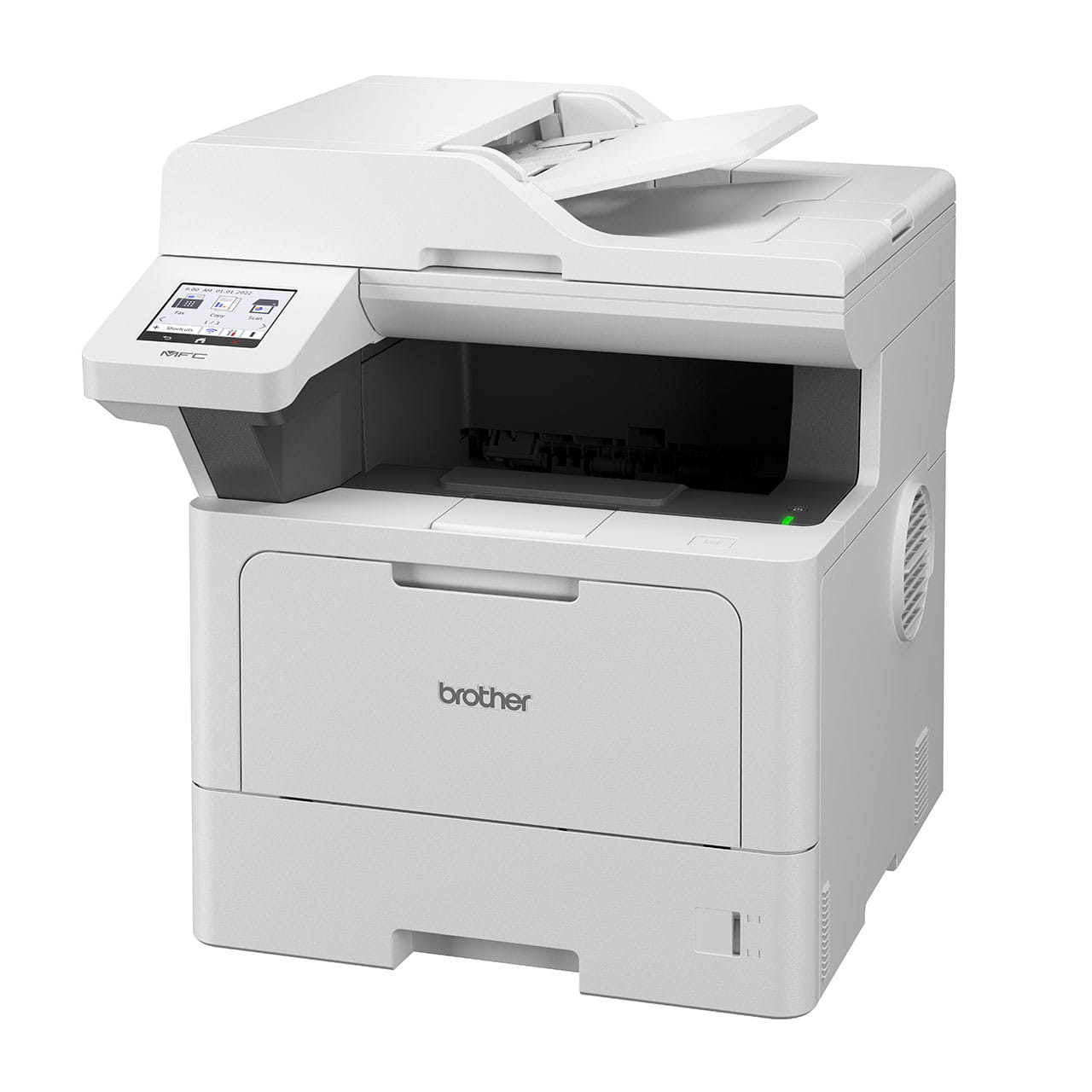

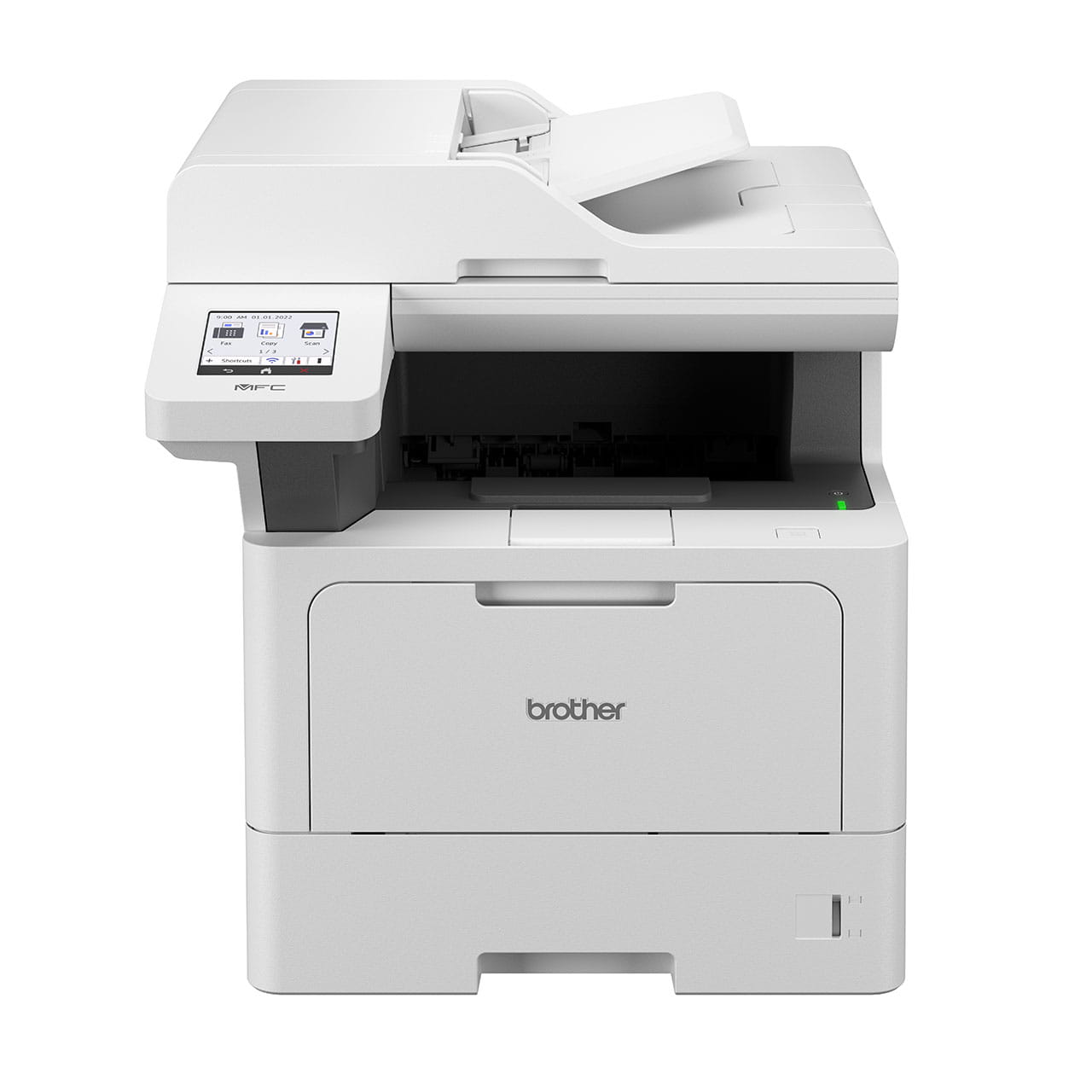

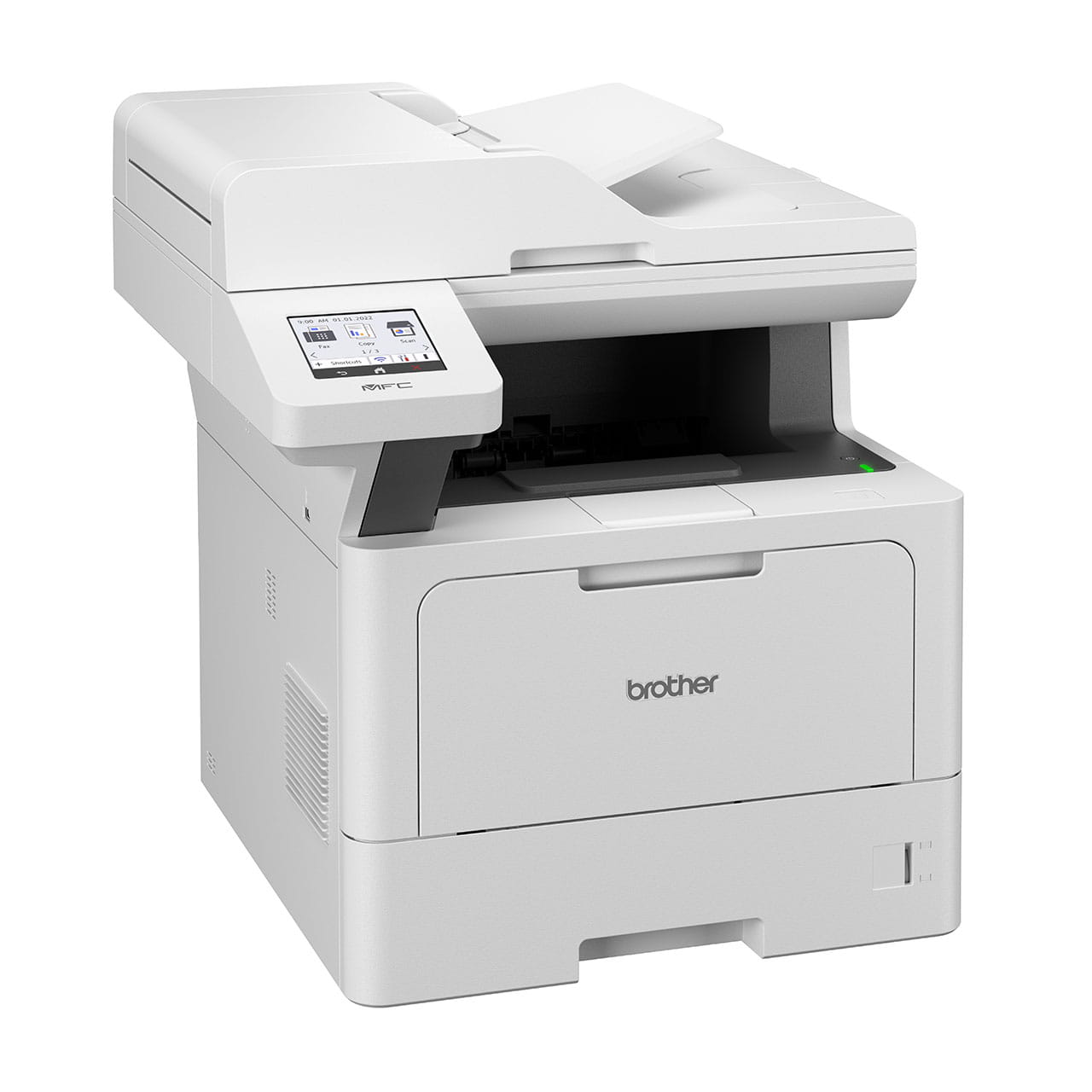

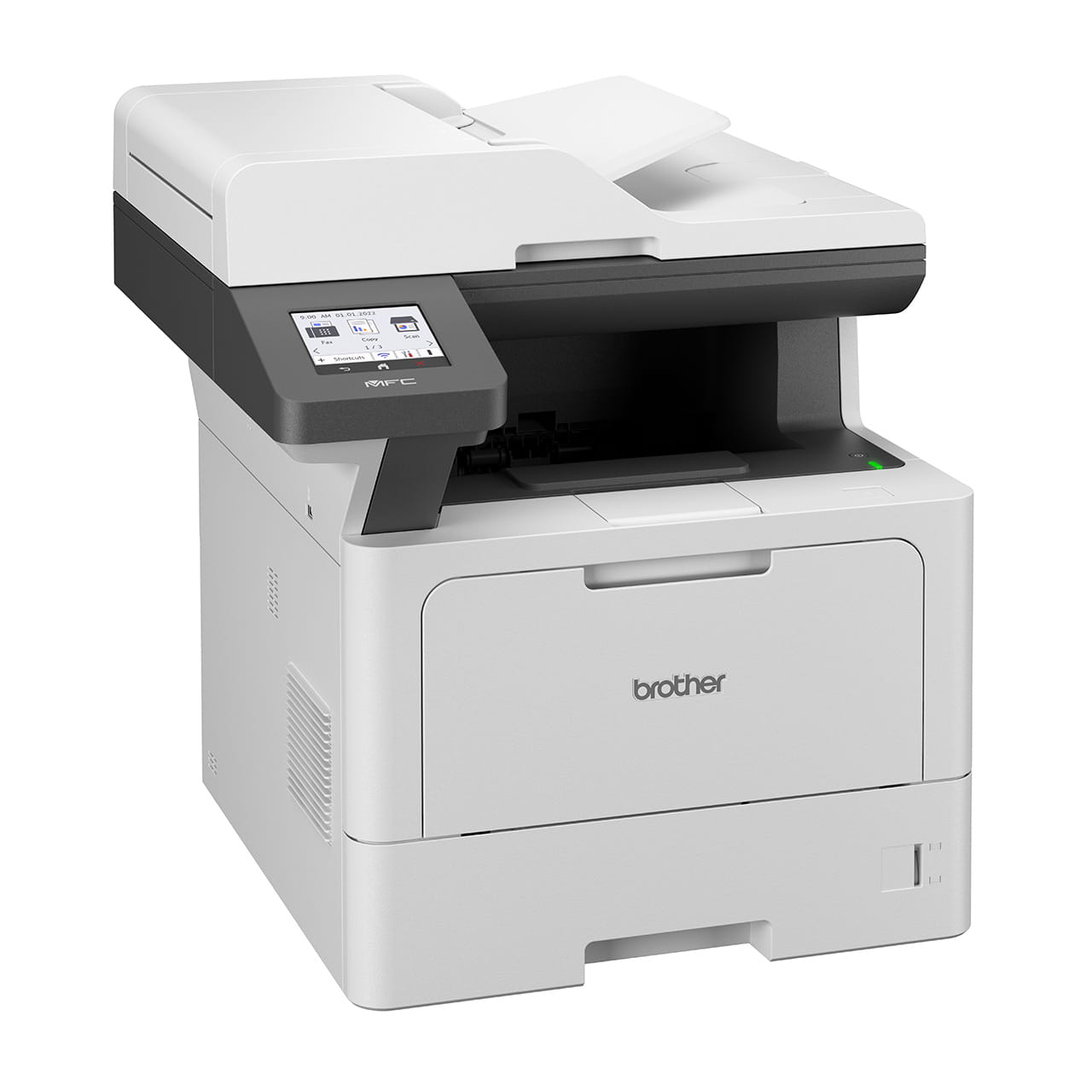

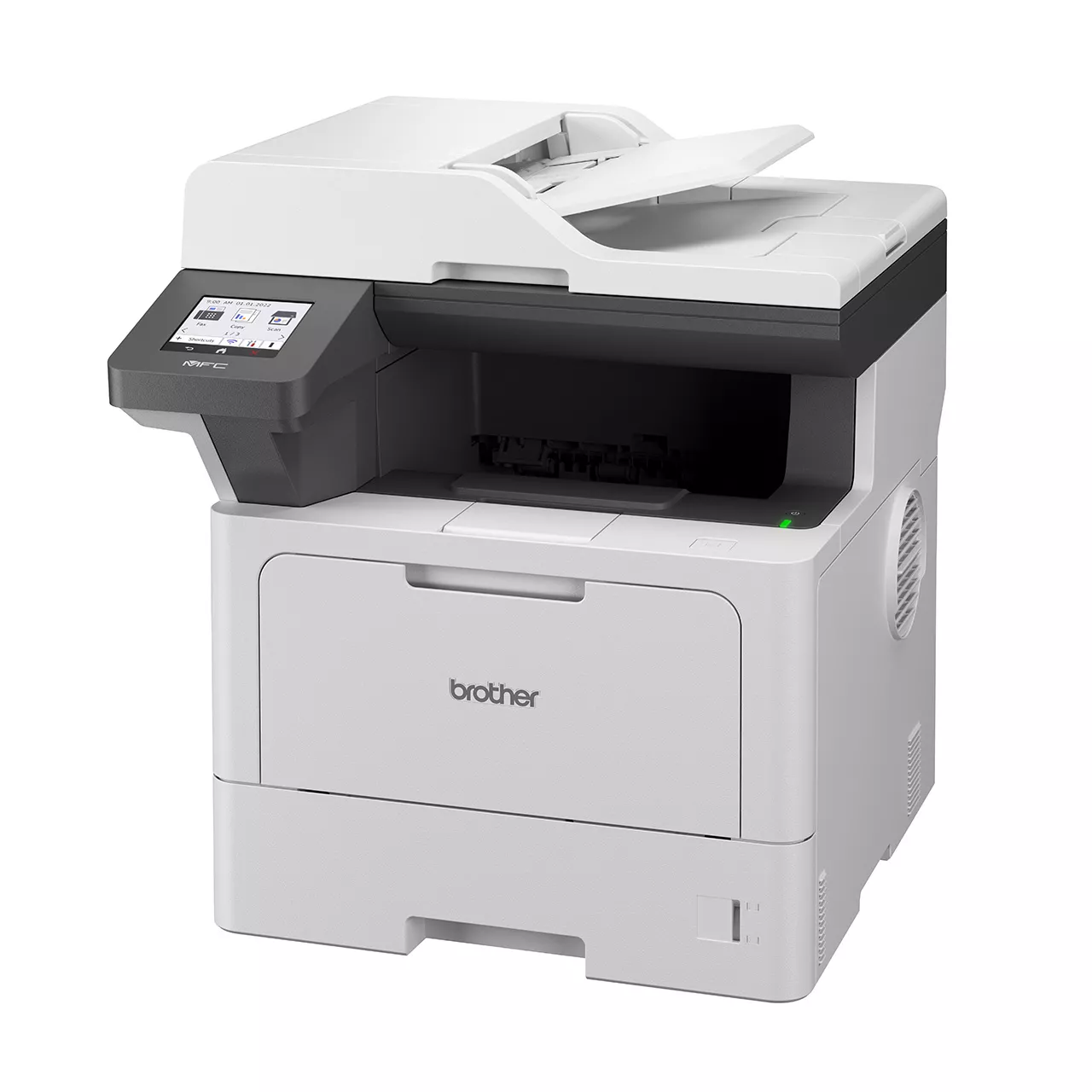

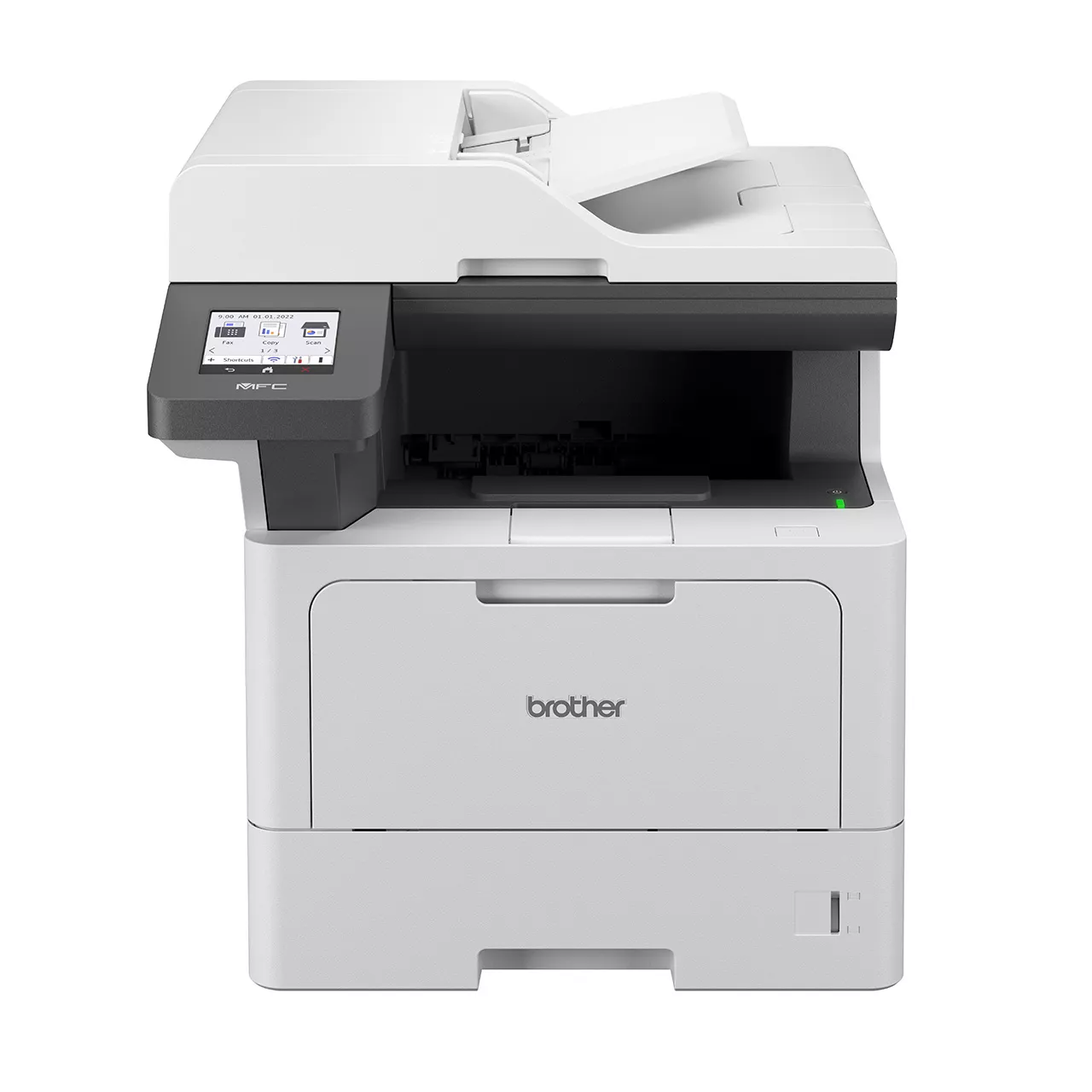

Wireless, high printing speed and high printing volume monochrome laser printer
- Fast print speed up to 48 ppm
- Automatic Document Feeder (Up to 50 sheets)
- User-friendly 8.9cm Color Touchscreen Panel
- Wireless Connectivity
- 250 sheets paper tray input capacity expandable up to 1,290* pages
- Replaceable high-yield toner up to 18,000 pages
Information
Overview
SUPER-FAST PRINTING
Printing up to 48ppm (pages per minute) and a first print out time of less than 6.7 secs, you will never have a long wait for your documents to be printed.
MONEY-SAVING TONER
Helping to lower your operating costs, a 6,000-pages in-box toner cartridge is included and a high-yield 18,000-pages replacement toner cartridge is available.
ENTERPRISE LEVEL SCANNING
With leading 2-sided scanning speeds of up to 56 images per minute, physical documents are easily transformed into digital files with precision, clarity and speed.
ENHANCED EFFICIENCY for seamless, productive workflows
AUTO DOCUMENT FEEDER
Enhance print productivity with the Auto Document Feeder that supports up to 50 sheets (A4/LTR) for print, copy and scan jobs in batches.
SCAN FUNCTIONS
Directly upload original scanned documents to the cloud, e-mail servers or designated networks with Scan To functions.
RELIABILITY that maximises print performance
HIGH PRINT VOLUME
Maximise performance with high paper input capacities of up to 1,290 sheets and save time on reloading.
ROBUST SECURITY
Features such as Secure Function Lock and Secure Print+ safeguard print jobs and other functions against unauthorised user access.
COST-SAVING with high-yield printing & scanning

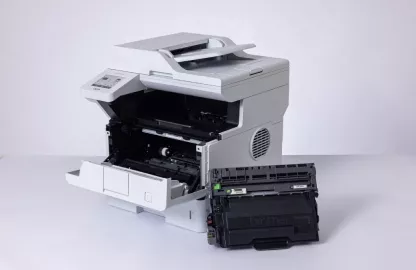

HIGH-YIELD TONER CARTRIDGES
Each toner cartridge supports more than 18,000 pages*1 worth of prints, reducing overall printing costs and maintenance downtime.
AUTO DUPLEX PRINT & SCAN
Utilises double-sided printing and scanning, saving on total operating costs.
1TN3617, approx. declared yield value in accordance with ISO/IEC 19752
Specifications
Basic Specs
Functions
Print, Scan, Copy, Fax
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
417 mm × 461 mm × 448 mm
Weight
14.9 kg
Print Speed
Up to 48 (A4) / Up to 50 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,390 sheets of 80 gsm plain paper (with Added Optional Trays)
Warranty
1 Year on-site warranty
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio
(Paper sizes other than A4 are supported only in some countries.)
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Colour / Monochrome
N/A
Yes
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
Scan
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Fax
Compatibility
ITU-T Super G3
Modem Speed
33.6 Kbps
Memory Transmission
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
Out of Paper Reception
Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)
PC Fax - Sending
Yes (Mono)
PC Fax - Receiving
Yes (Mono)
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct), 10Base-T/100Base-TX/1000Base-T
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
3.5" Colour Touchscreen LCD
Memory Capacity
512 MB (For Australia)
1 GB (For other countries)
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.9 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10
Server 2012 / 2012 R2 / 2016 / 2019
