Commercial Embroidery Machine
- Embroidery Foot with LED Pointer
- Large Embroidery Area
- Embroidery Lettering Fonts
- Versatile Embroidery (Cap, Shoe, etc.)
- Built-in Embroidery Patterns
- Thread Trimming
Information
Overview

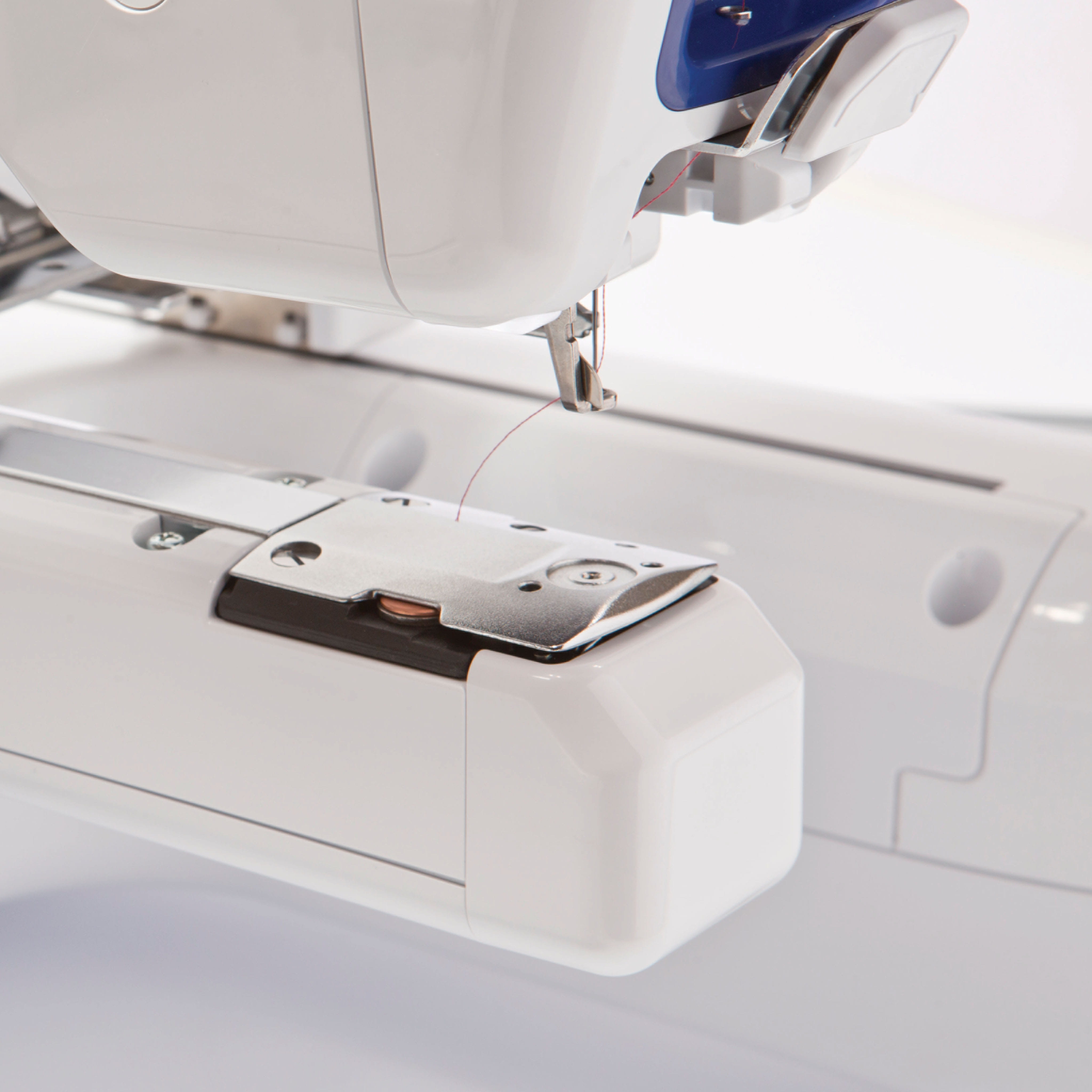

Tubular Free Arm
The tubular arm makes it easy to embroider items such as tote bags, sleeves, trouser legs, and caps. (Requires optional cap frame and other specialty frames)

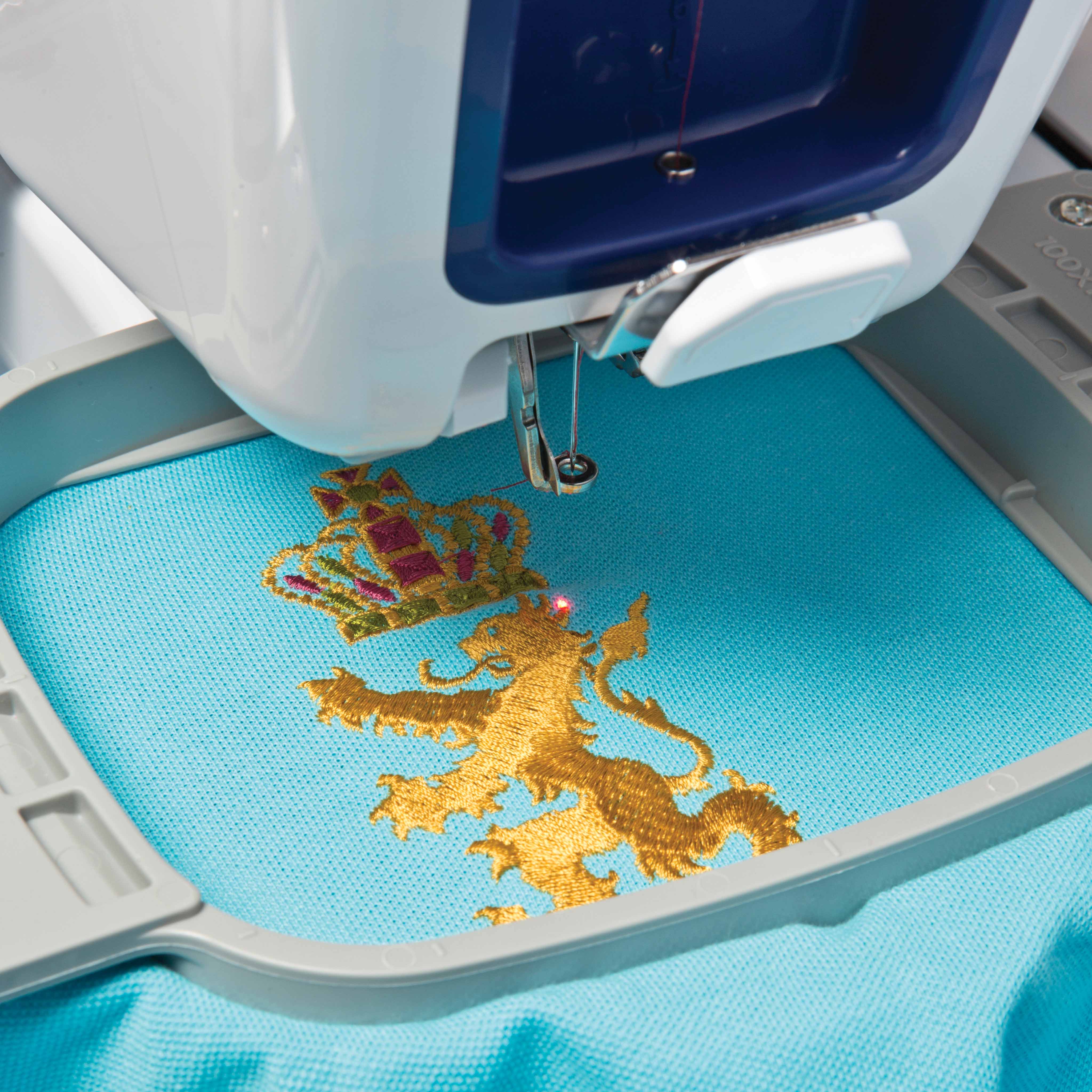

Droplight LED Embroidery Positioning Marker
Accurately position your embroidery designs. The LED pointer shows the embroidering needle drop point position

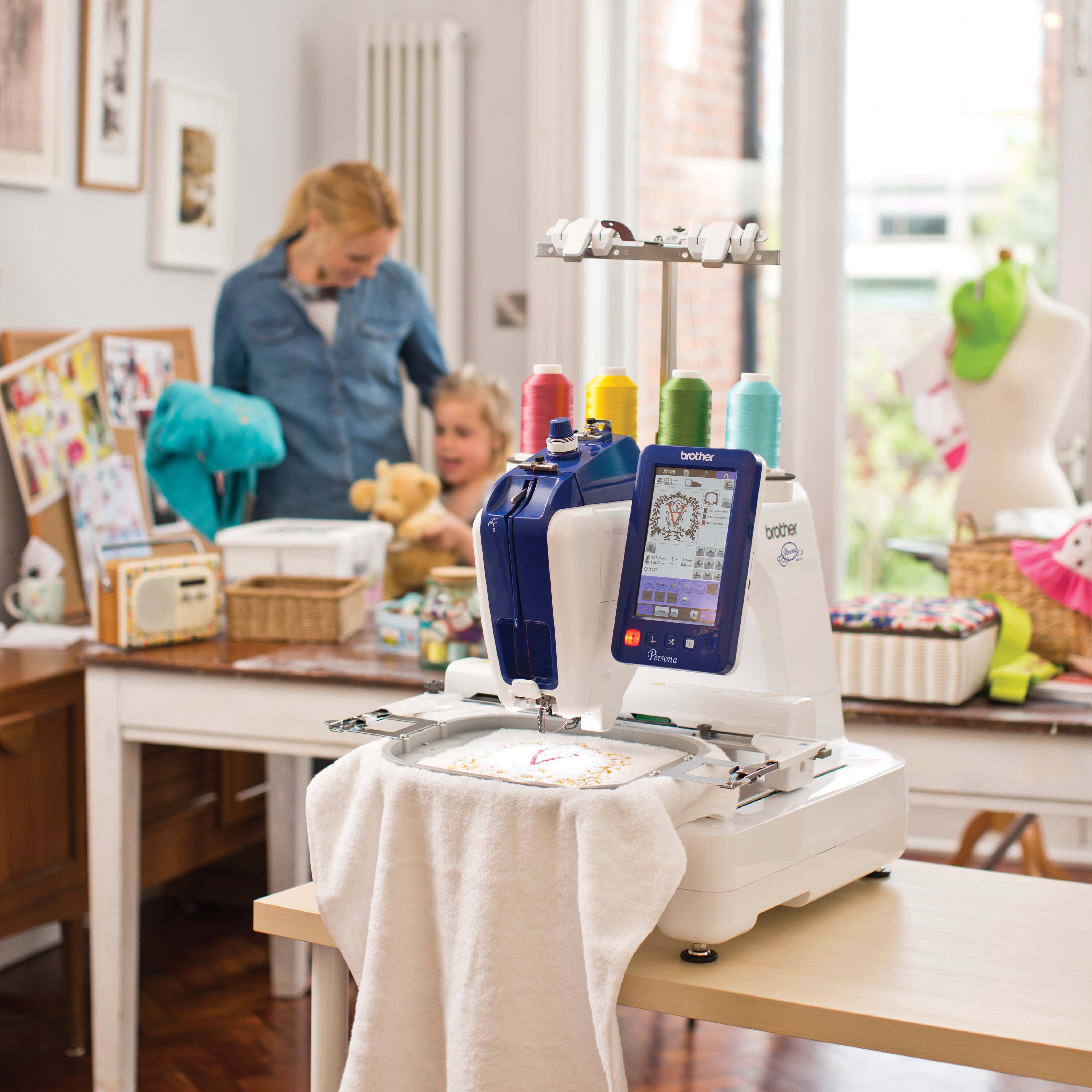

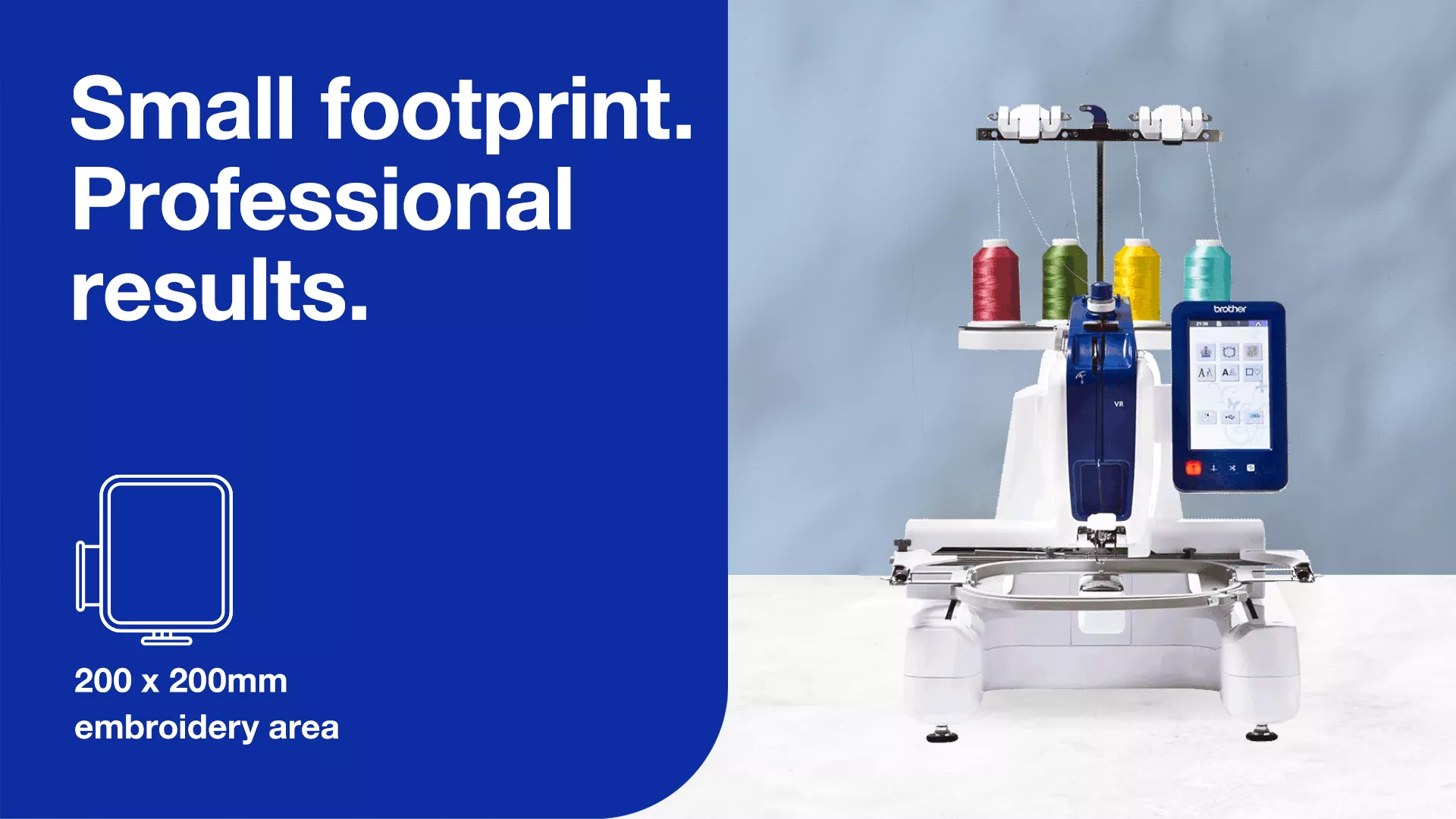

Small Footprint
A mere 475mm wide, the VR is significantly smaller than a standard flatbed embroidery machine and can be set up anywhere

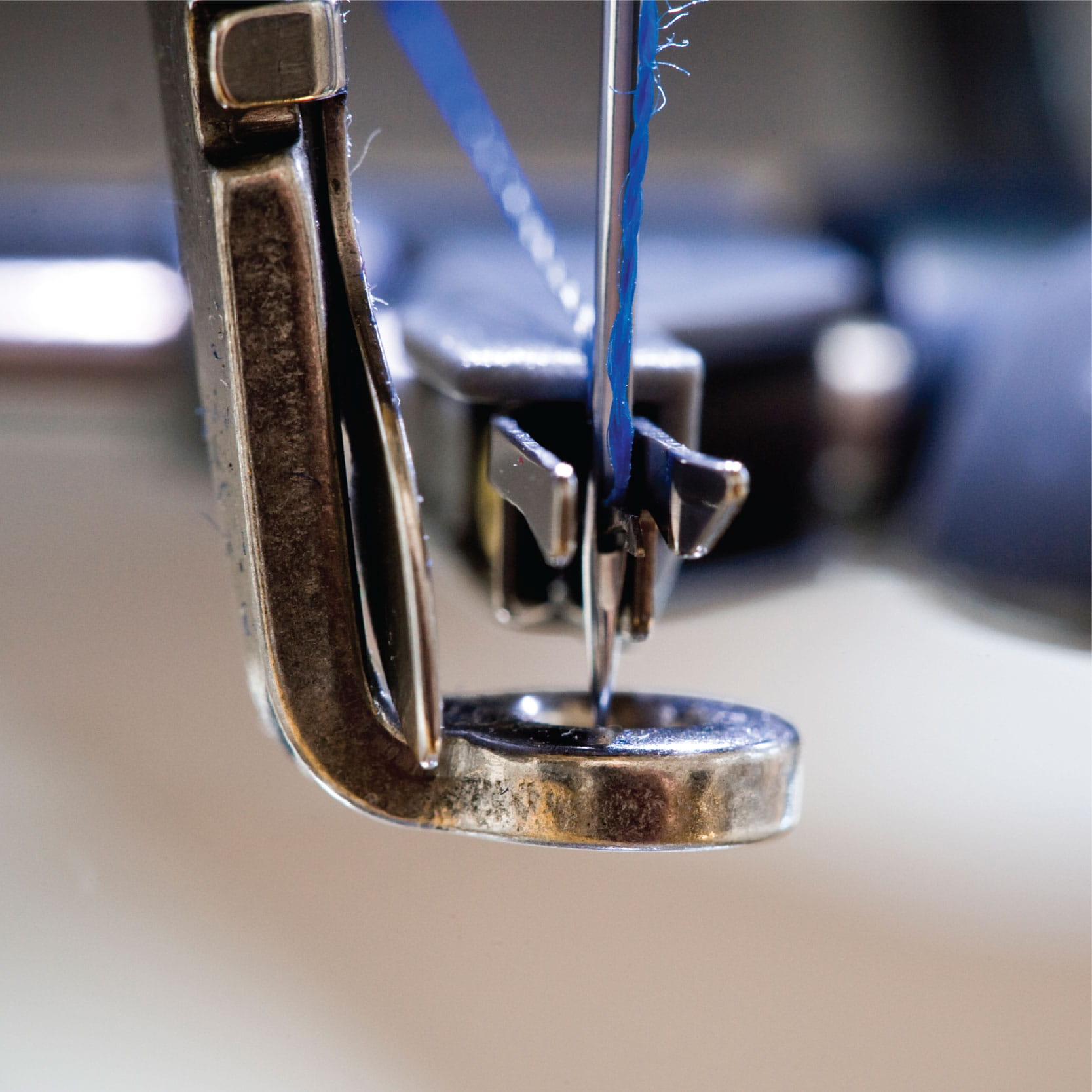

Automatic needle threader
Makes threading simple! Thread the needle with the touch of a button. This can be done without a design on the screen for added efficiency
Up to 600-1000 SPM
Save time. The VR delivers up to 1000 stitches per minute with zero compromise on stitch quality

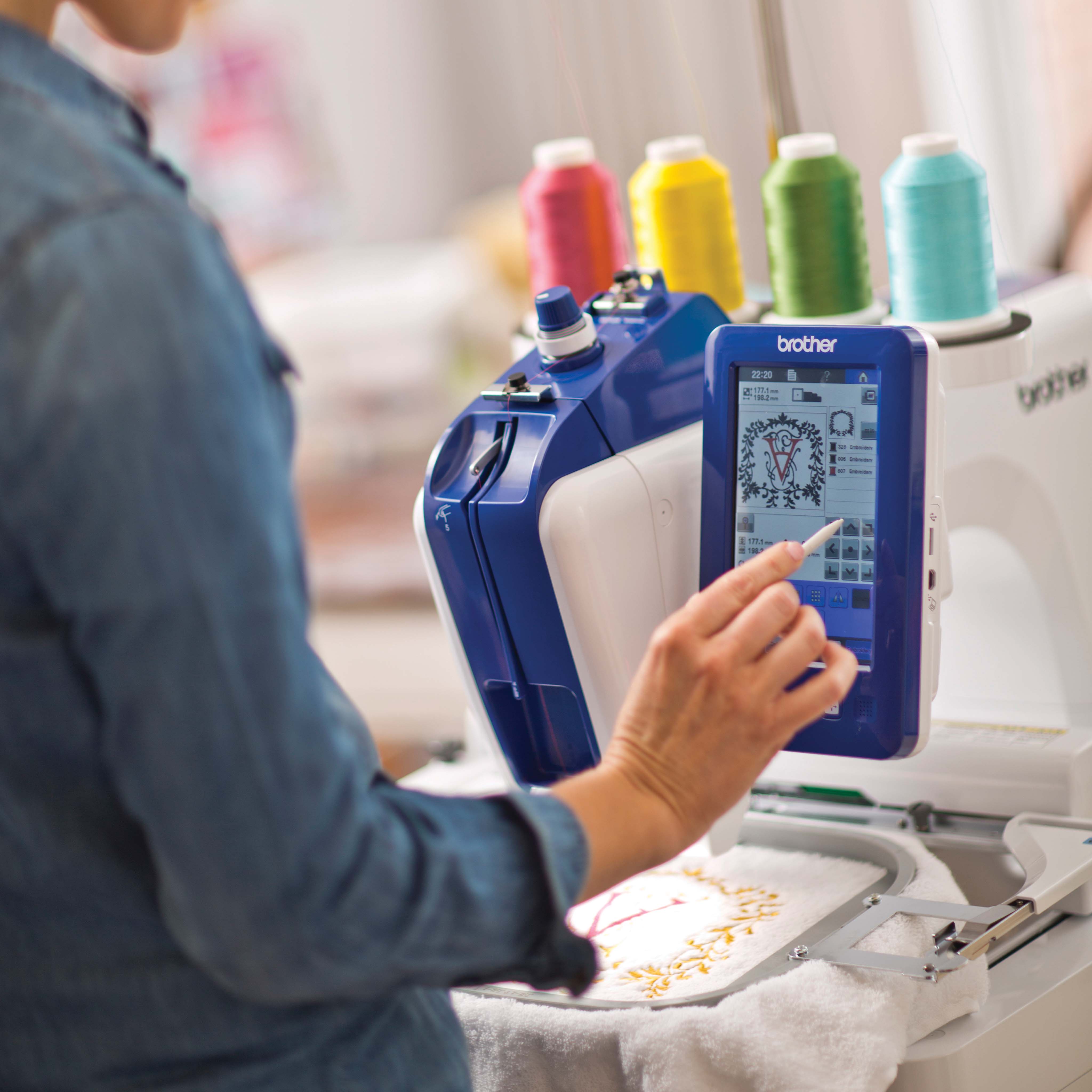

7” Touch Screen
The large 7” built-in high-definition LCD display, with large icons and scrolling menu, makes on-screen editing and letter input a snap
What’s included?
Embroidery Frame Set 200mm x 200mm
Embroidery Frame Set 100mm x 100mm
Compact Frame Set 70mm x 40mm
Compact Frame Set 50mm x 50mm
Compact Frame Set 44mm x 38mm
Compact Frame Set 33mm x 75mm
Embroidery Frame Holder A
Embroidery Frame Holder E
Plus
Operation Manual , Quick Reference Guide, Pattern List, Touch Pen, USB Cable, Needle Plate Cover, Tweezers, Needle Exchange Tool, Embroidery Needle Set (6), Prewound Bobbin (5), Steel Bobbin (3), Bobbin Tension Gauge, Spool Cap (4), Spool Mat (4), Spool Net (4), Small Screwdriver, Large Screwdriver, Allen Screwdriver, Phillips Screwdriver, Disc-Shaped Screwdriver, Wrench, Cleaning Brush, Seam Ripper, Scissors, Machine Oil, Accessory Case
Specifications
Basic Specs
Bobbin Type
Vertical
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Optional
Start Stop Button
Yes
Thread Tension Control
Manual
F.A.S.T Bobbin Winding System
Separate bobbin winding
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Warranty
1 Year on-site warranty
Embroidery Features Spec
Embroidery Speed (Max)
1000 spm
Embroidery Area Max
200mm x 200mm
Built In Embroidery Patterns
405
Build In Embroidery Font
20
On Screen Editing
Yes
USB
Yes (Host/Slave)
Jump Stitch & Wiper Function
Yes
Camera Function
LED pointer
Needle number for Embroidery
1
