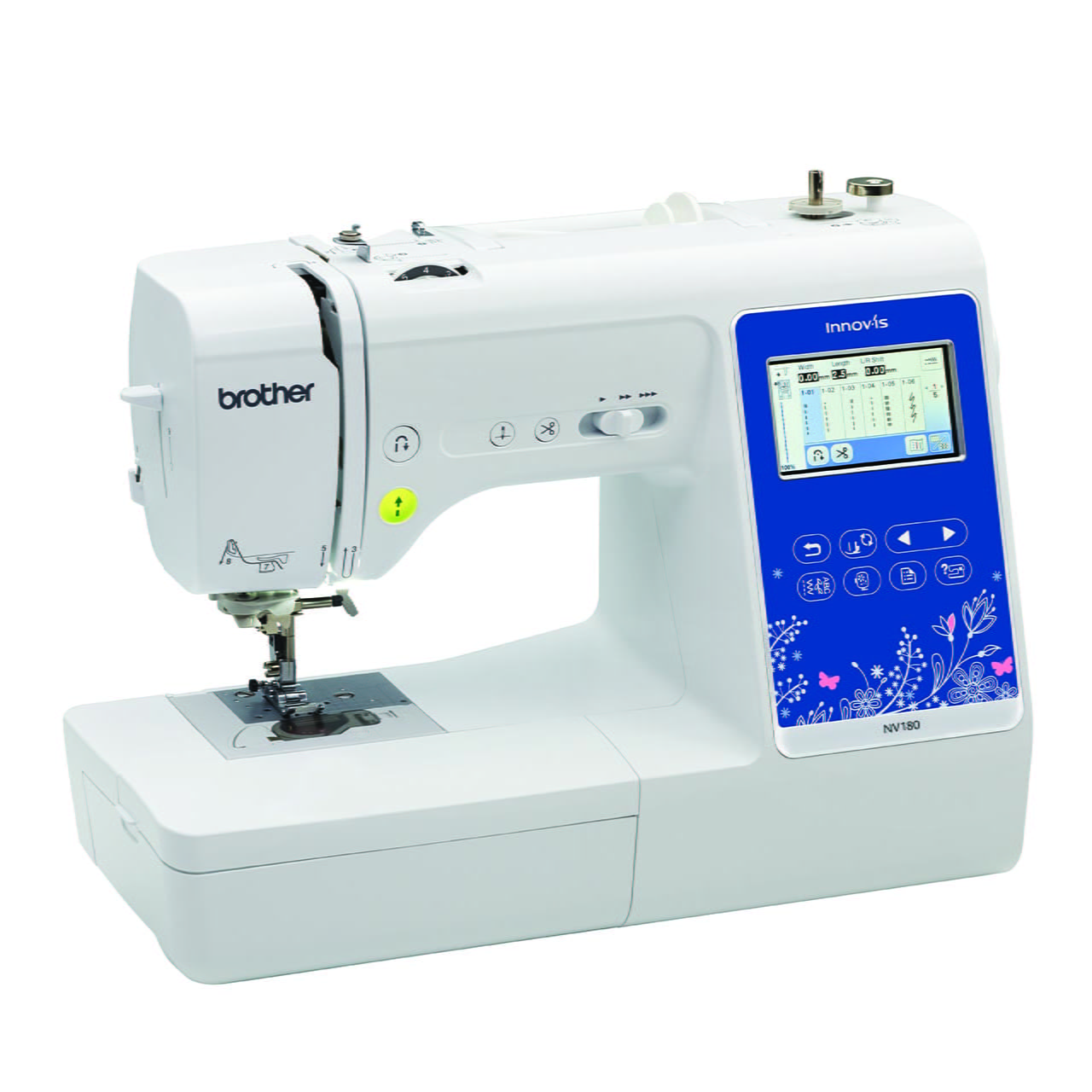

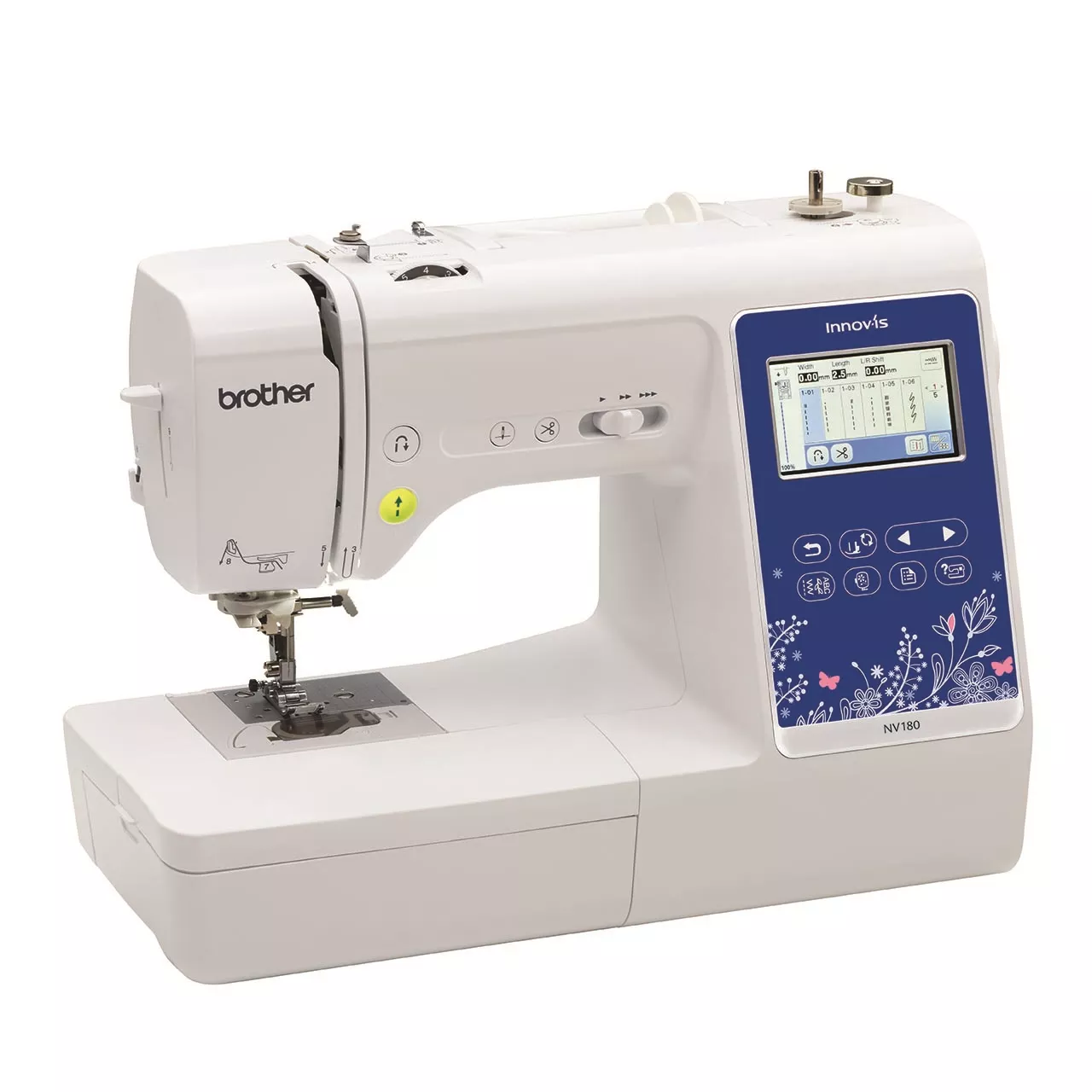

Innov-is NV180 Sewing, Quilting & Embroidery Machine
It sews, it quilts and it embroiders. And it does all three brilliantly.
- 80 Built-in Embroidery Patterns
- Built-in Utility and Decorative Stitches
- Embroidery Lettering Fonts
- Colour Touch Screen for editing
- Advanced Needle Threading System
- Thread Trimming
Information
Overview

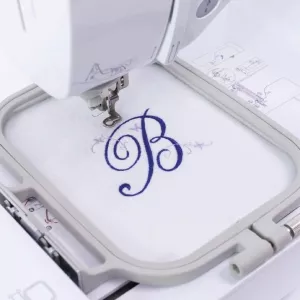

100 x 100mm Embroidery Area
Add appeal and personalization to your projects using the built-in designs and fonts. Includes one 4” x 4” embroidery frame

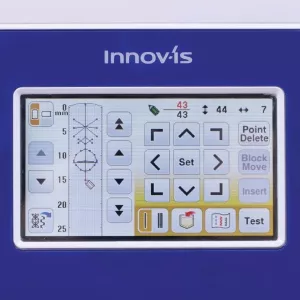

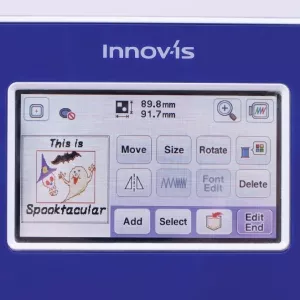

On-Screen Editing
Change individual thread colors, place lettering in an arc, and more. Move designs on the touch screen display with the touch of a finger

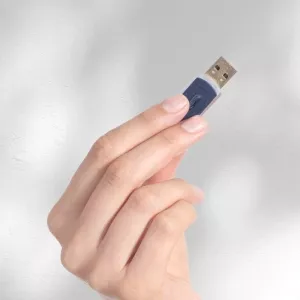

USB Connectivity
Use the USB port to easily import and export embroidery designs or perform machine updates
Thread trimming
Save time. Upper and lower thread can be trimmed at the touch of a button or programmed to trim at the end of sewing

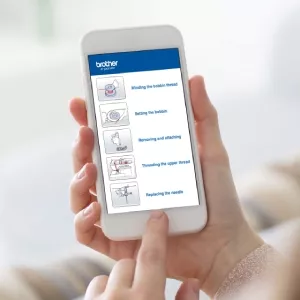

Online How–to Videos
Watch step by step videos and access troubleshooting for free whenever you need to on your mobile device or desktop
My Custom Stitch
Edit and create your own sewing or decorative stitch designs and save them for future projects directly on the easy-to-read LCD panel
What’s included?
7 Sewing Presser Feet
Zigzag Foot
Zipper Foot
Buttonhole Foot
Button Sewing Foot
Monogramming Foot
Overcasting Foot
Blind Stitch Foot
Plus
Detachable Embroidery Unit, Embroidery Foot, Embroidery Frame 100mm x 100mm (4" x 4"), Grid Sheet Set, Embroidery Design Guide, 4 Pre-Wound Bobbins (60 Weight White Embroidery Bobbin Thread), 4 Bobbin Clips, Needle Set, Twin Needle, 1 Bobbin, Seam Ripper, Scissors, Cleaning Brush, Eyelet Punch, Disc-Shaped Screwdriver, Screwdriver, Extra Spool Pin, Spool Cap (Large/Medium/Small), Spool Net, Thread Spool Insert (Mini King Thread Spool), Bobbin Case, Foot Controller, Accessory Bag, Hard Case, Operation Manual, Quick Reference Guide
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Yes
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Software upgrade
Yes
Case
Hard cover
Wide Table
Optional
Warranty
1 Year Carry in Warranty
Sewing Features Spec
Stitch No
181
Sewing Speed
850 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
one-step
Number of Buttonholes
10
Lettering
4
Drop Feed
manual
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
No
Feed Dog
7 (longer ver.)
Embroidery Features Spec
Embroidery Speed (Max)
400 spm
Embroidery Area Max
100 mm x 100 mm
Built In Embroidery Patterns
80
Build In Embroidery Font
10
On Screen Editing
Yes
USB
Yes
Needle number for Embroidery
1
