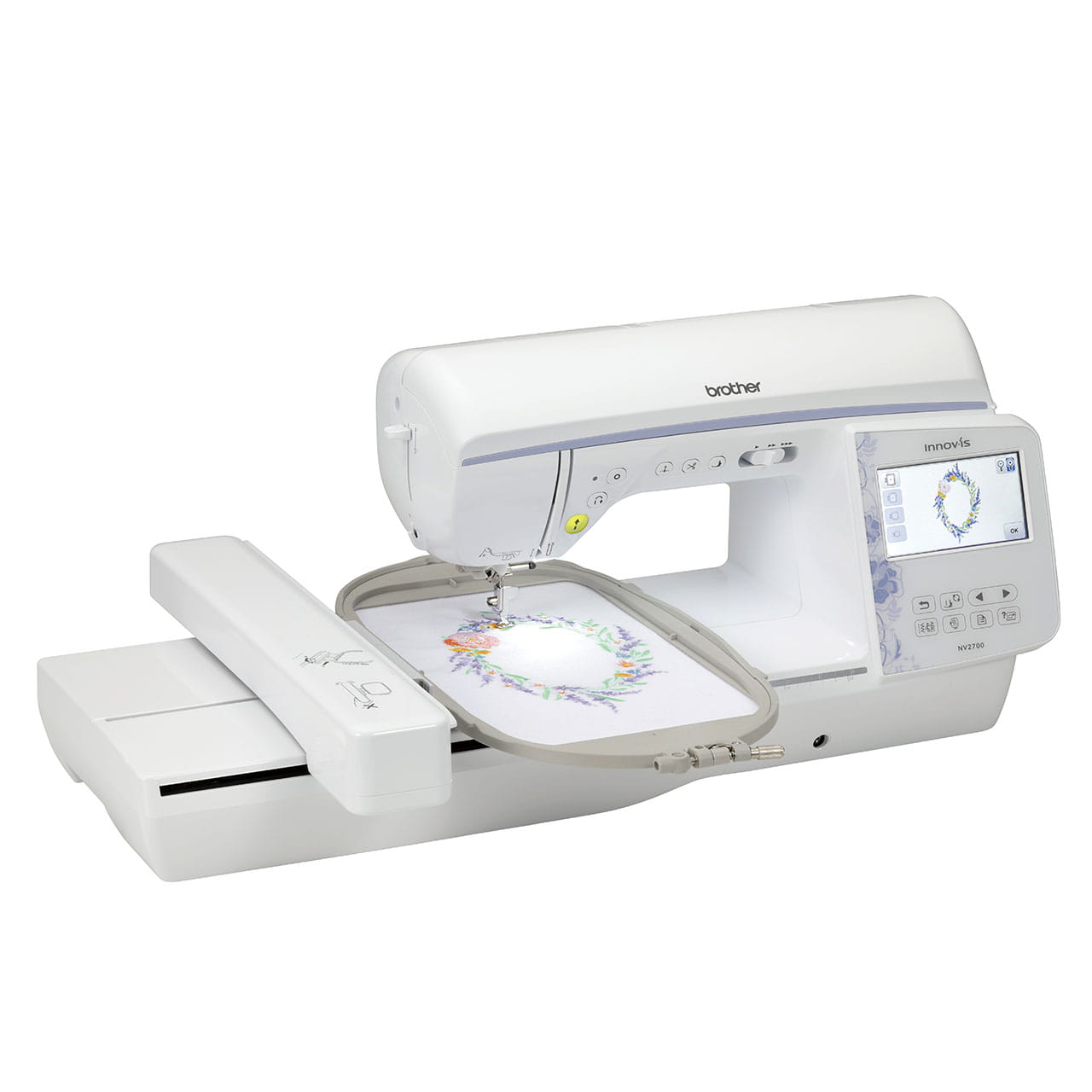

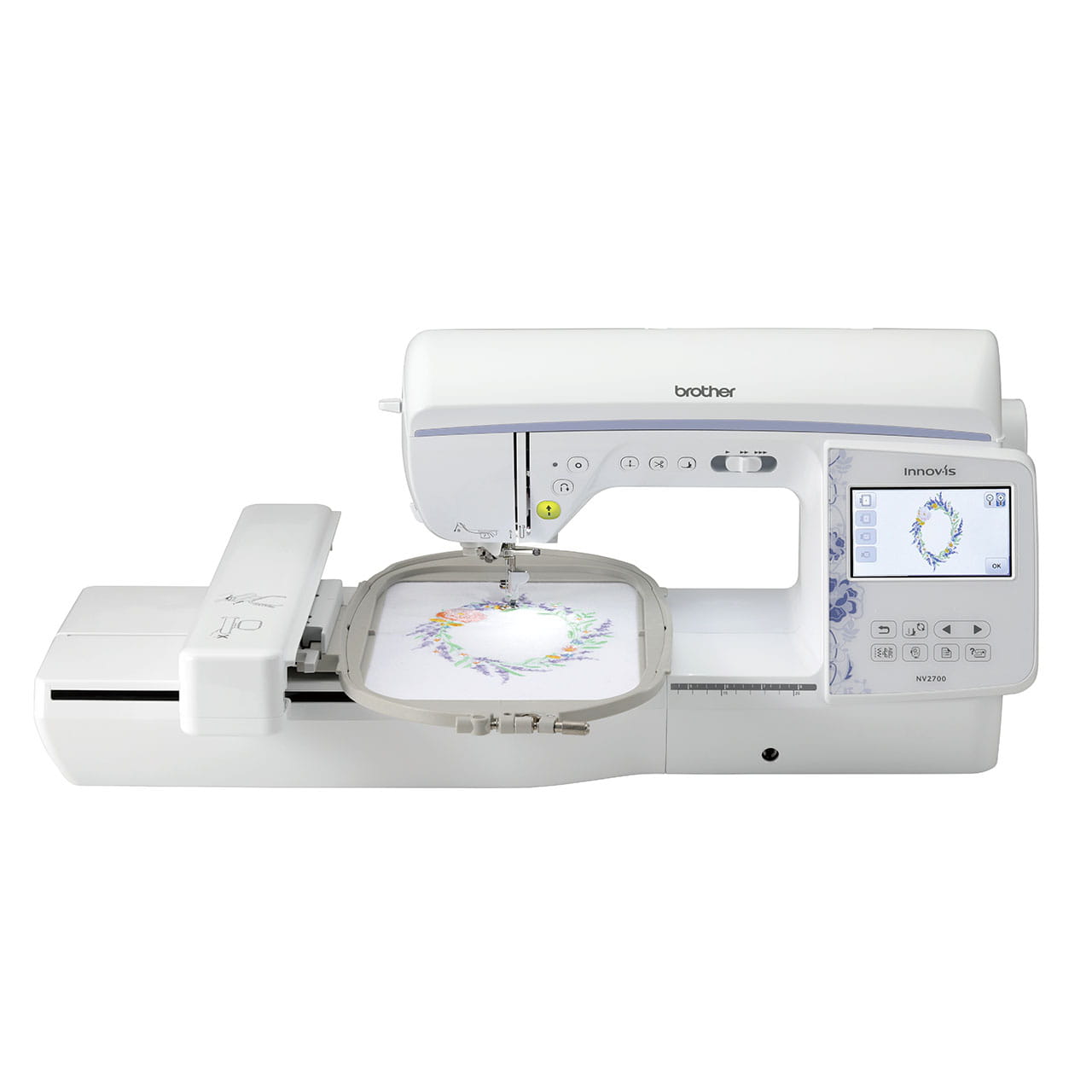

Import design files via Wi-Fi with this versatile combo machine
- Large Embroidery Area (160mm x 260mm)
- Full Colour Touch Screen Control
- Free App to transfer files
- Advanced Needle Threading System
- 258 built-in embroidery designs, 291 built-in stitches
- Automatic Height Adjuster
Information

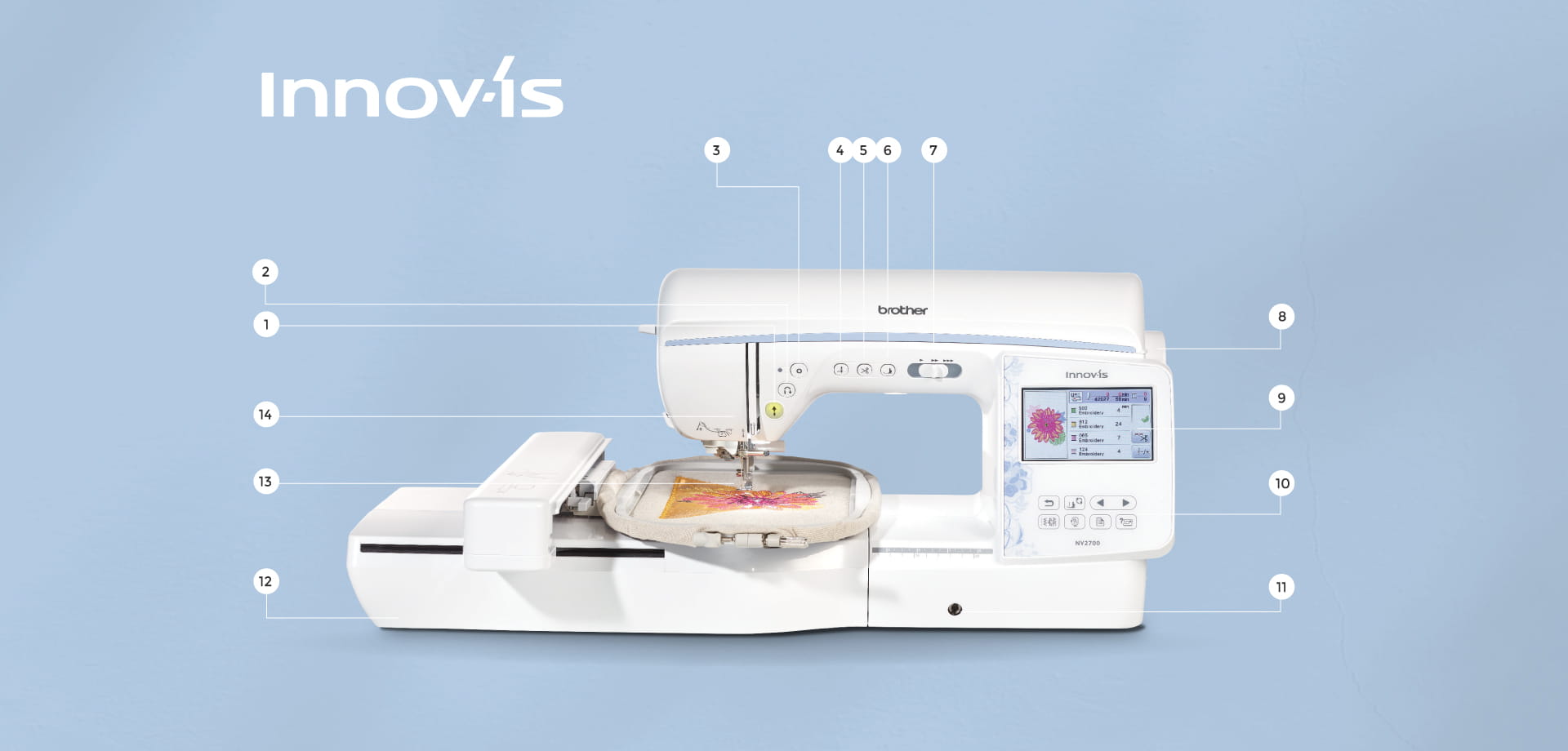

Overview

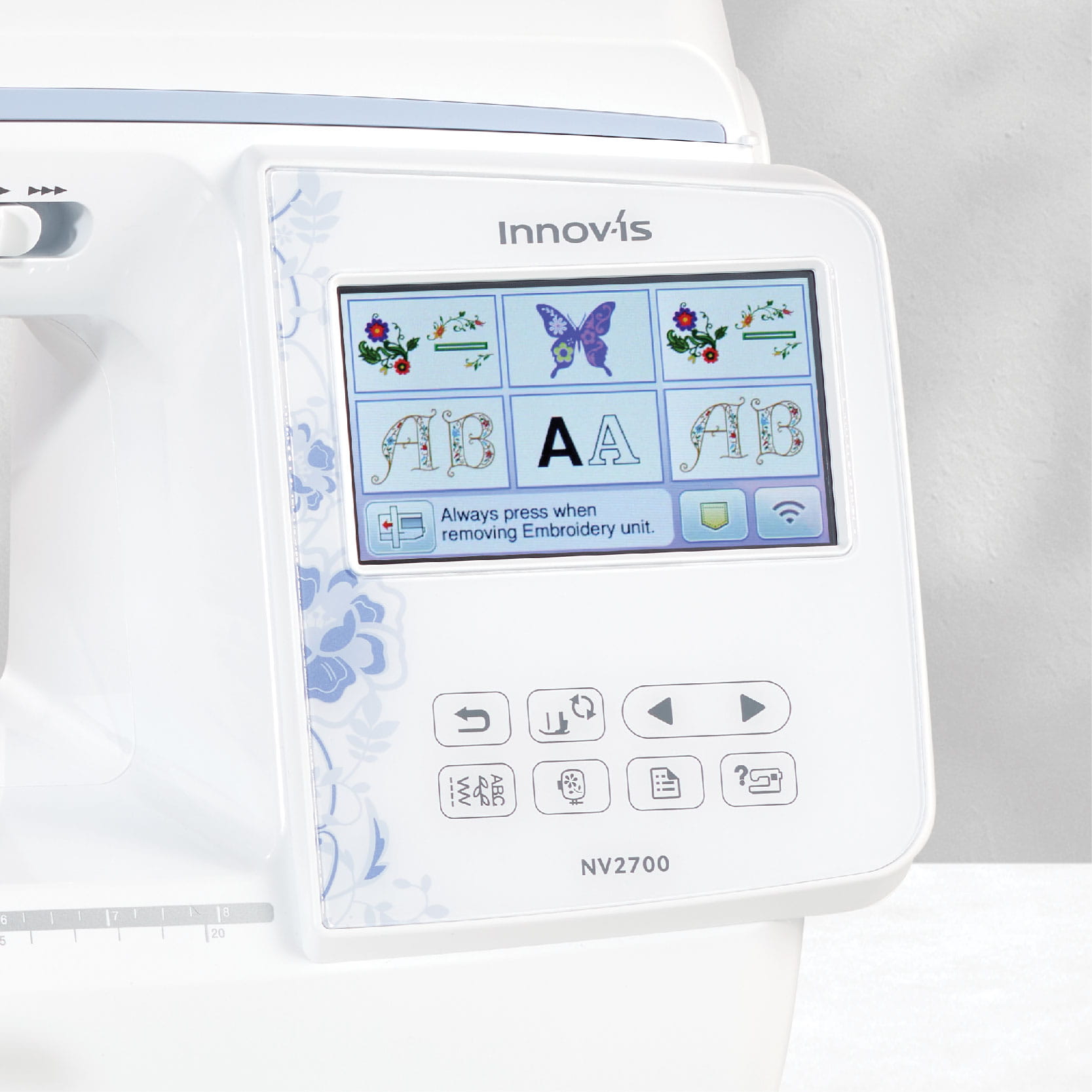

4.9” Color Touch Screen
Navigate the easy-to-use interface and see your design in full color on the crystal clear display.

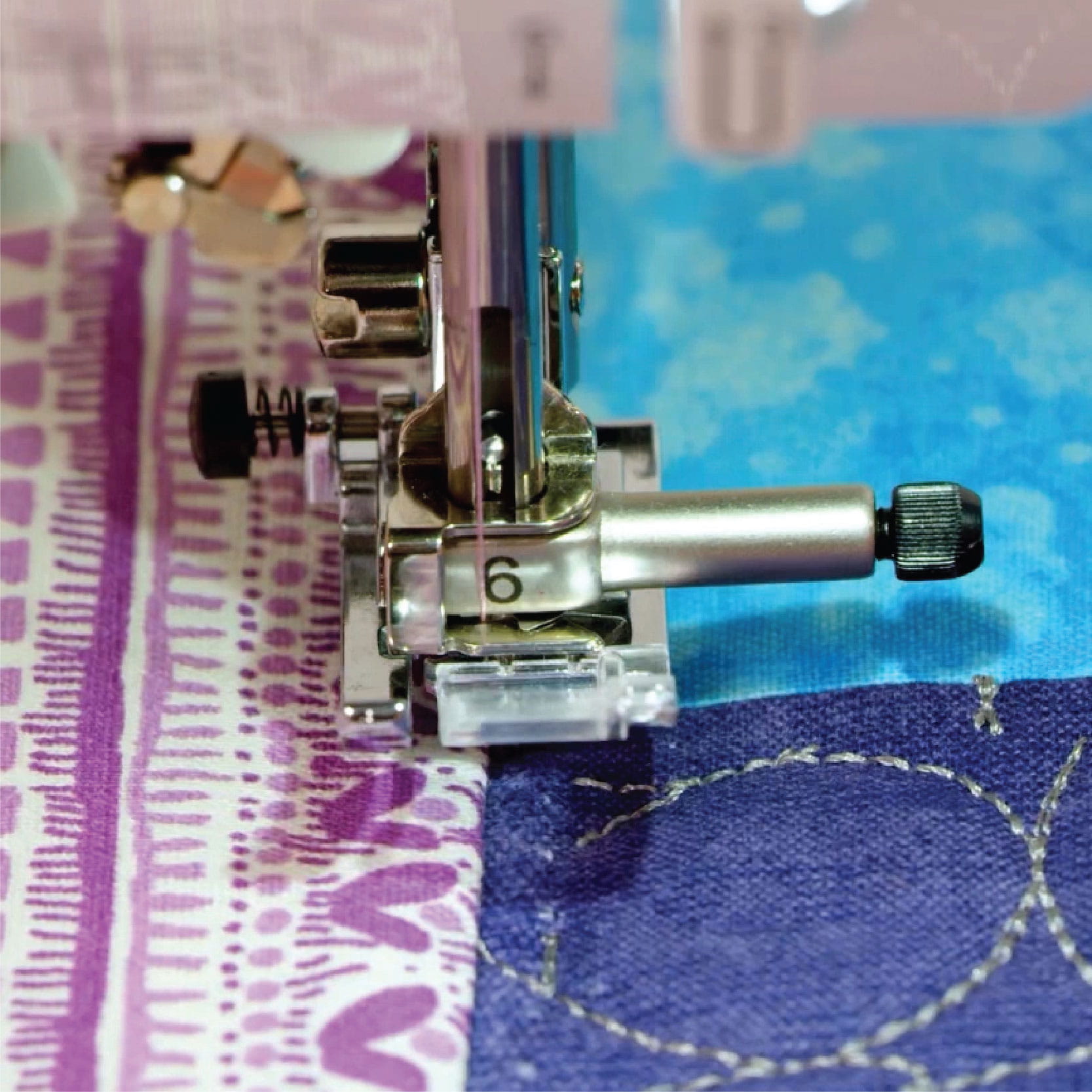

Pivot Function
Save time. Pivot function for precise corners, smoother circles, and easier chain piecing.

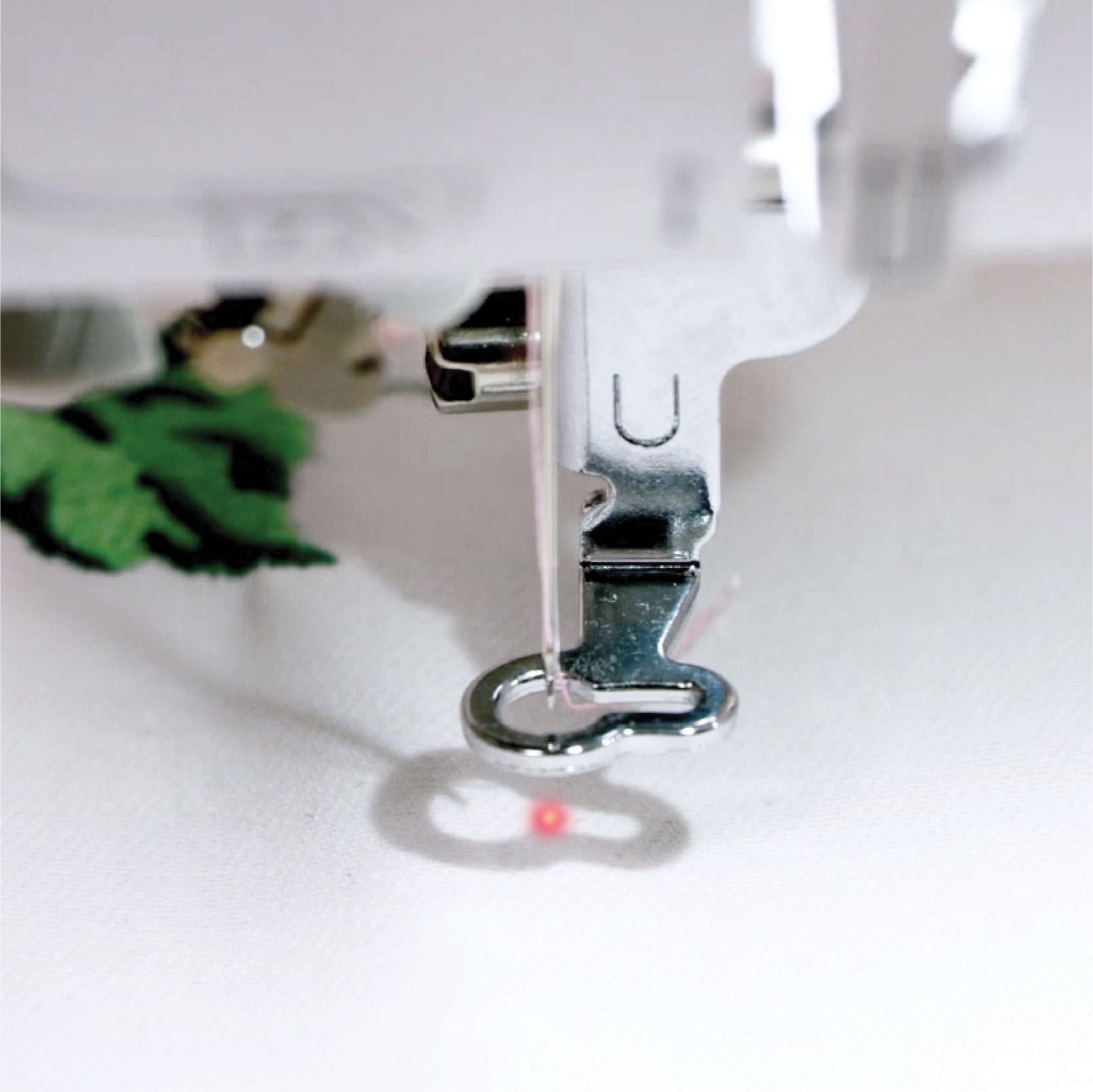

Droplight Positioning Marker
Ensure perfect pattern placement with led pointer. You can position and align the embroidery patterns in a simple and accurate way.

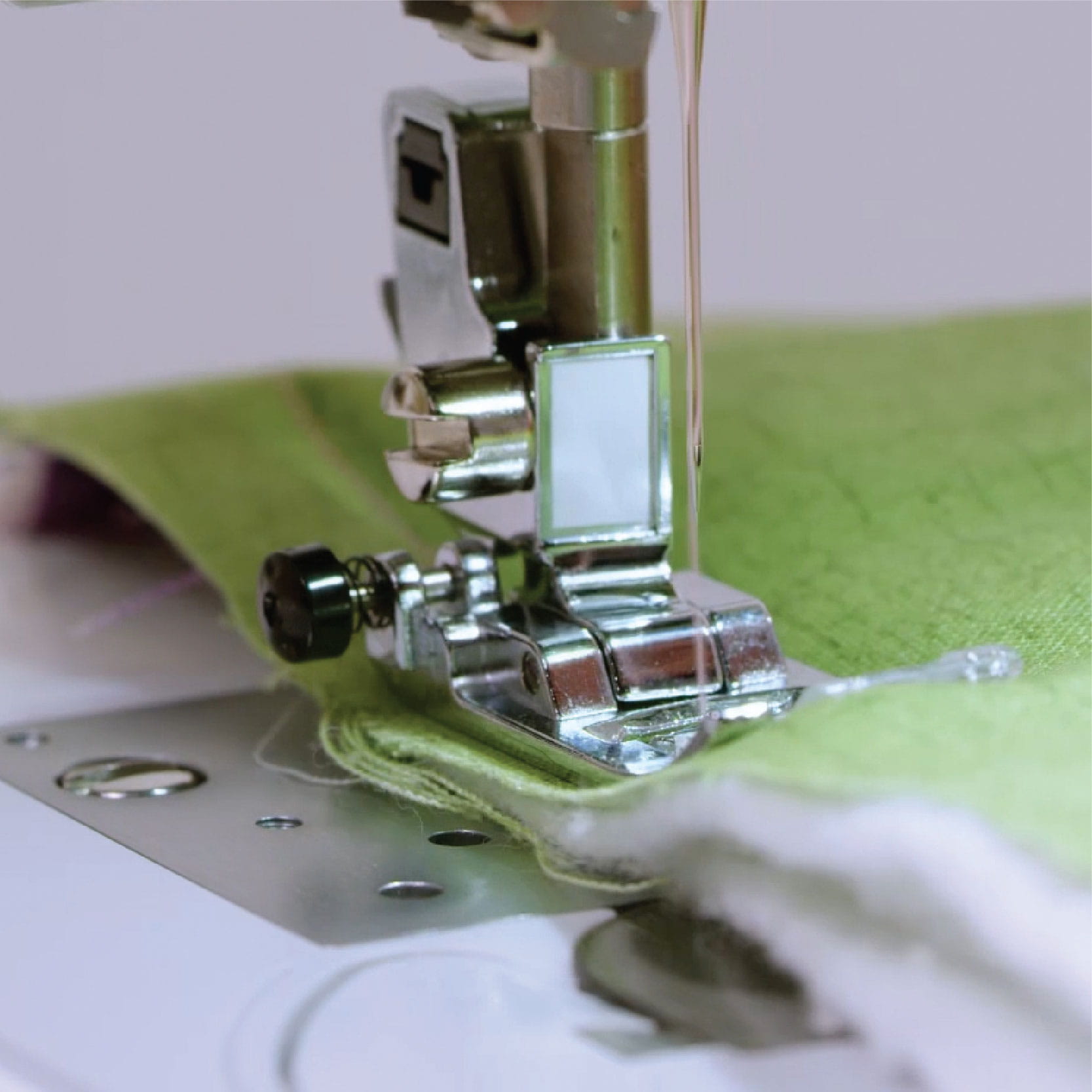

Automatic Height Adjuster
Maintain a steady stitch length on all fabric thicknesses by keeping the presser foot pressure consistent

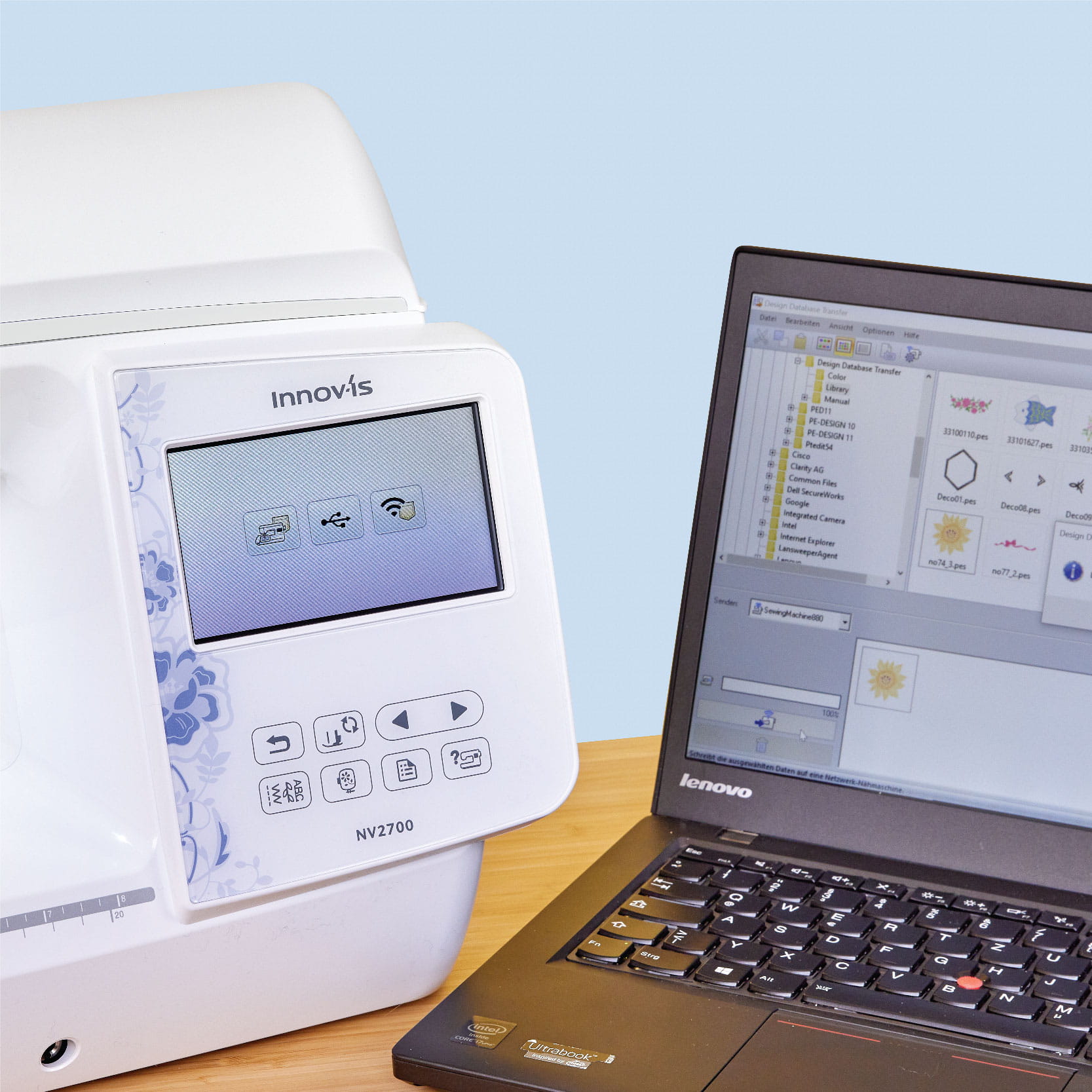

Free App to transfer files
Send designs wirelessly from your Windows PC to your machine when connected to a wireless network, using the free Design Database Transfer app

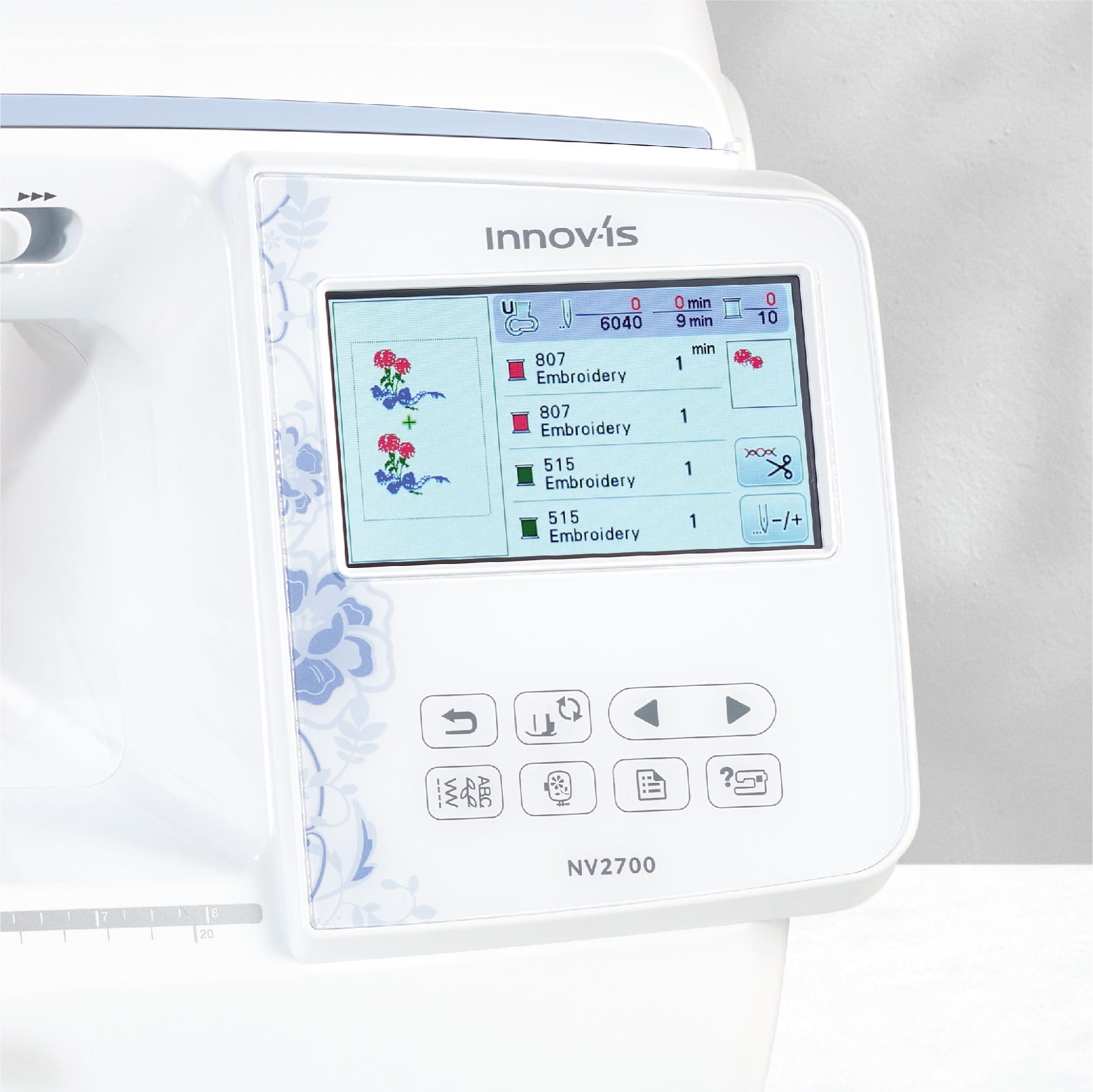

Color Sorting Feature
Saving time and thread use. The color sort function allows multiple designs with duplication of thread colors to be sorted and stitched sequentially
What’s included?
Zig Zag Foot, Blind Stitch Foot, Zipper Foot, Overcasting Foot, Buttonhole Foot, Monogramming Foot, Button Fitting Foot, Stitch Guide Foot, Adjustable Zipper/Piping Foot, Free Motion Open Toe Quilting Foot, Non-Stick Foot, Open Toe Foot, 1/4 Inch Piecing Foot with guide, Walking Foot, Side Cutter
Plus
Embroidery Foot With Led Pointer, Embroidery Frame Set 260 mm x 160mm, Embroidery Frame Set 180mm × 130mm, Operation Manual, Quick Reference Guide, Embroidery Bobbin Thread (#60, White), Embroidery Positioning Sticker Sheets (4), Lens Calibration Sheet, Stabilizer Material, Embroidery Needle Plate Cover, Needle Set 75/11 (6), Ball Point Needle For Embroidery, Bobbins (10), Bobbin Clips (10), Vertical Spool Pin, Thread Spool Insert (Mini King Thread Spool), Small Spool Cap,2 x Medium Spool Cap, Large Spool Cap, Spool Felt, Spool Net, Small Screwdriver, Large Screwdriver, Disc-Shaped Screwdriver, Cleaning Brush, Seam Ripper, Scissors, Accessory Bag
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Advanced
Thread Cutter
Auto (Button)
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Soft cover
Wide Table
No
Warranty
1 Year Carry in Warranty
Sewing Features Spec
Stitch No
291
Sewing Speed
850
Stitch pattern selection
Touch Panel
Maximum Stitch Width
7mm
Buttonhole Sewing
10 one-step
Number of Buttonholes
10
Drop Feed
Manual
Knee Lifter
Yes
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
Yes
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
850
Embroidery Area Max
260 x 160 mm
Built In Embroidery Patterns
258
Build In Embroidery Font
13
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
Yes
Camera Function
No
Needle number for Embroidery
1
Overlocker Spec
Maximum Sewing Speed (stitch per minute)
850
Stitch length(mm)
5mm
Differential Feed(Stitch Width)
7mm
